Summary of Contents for Fanco Quiet 150
- Page 1 Quiet Breeze Installation Manual Installation Manual...
- Page 3 Before installing your new Fanco exhaust fan, it is important that you read and follow these instructions prior to installation, even if you feel you are quite familiar with this type of product. Please keep this document handy for future reference as it contains servicing and maintenance requirements.
-
Page 4: Delivery Set

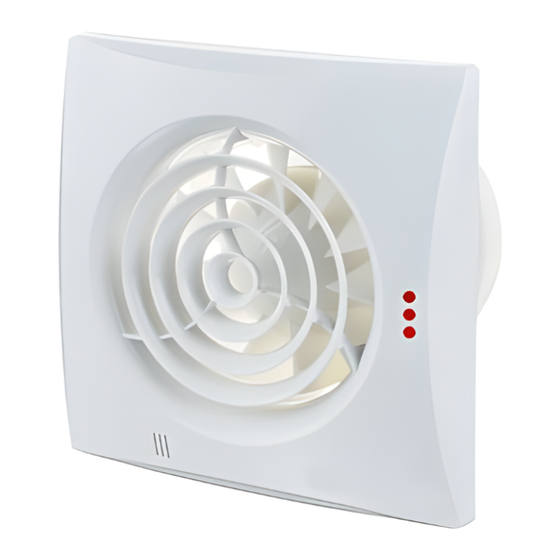

The Quiet 150 axial exhaust fan described in this user’s manual is designed for exhaust ventilation of small to medium-sized premises heated during winter. DELIVERY SET 1. Fan: 1 piece 2. Screws and dowels: 4 pieces 3. User's manual: 1 piece 4. - Page 5 MOUNTING The fan is designed for wall or ceiling mounting with direct air exhaust to the ventilation shaft or into the round air duct of matching diameter. Please Note - In case of vertical mounting the fan must be protected against ingress of rainfalls and condensate inside the fan.
- Page 6 STEP 3 - Remove the front panel from the fan. Then remove the terminal block cover. STEP 4 - Position the fan in your preferred installation location and mark the position of the holes on the fan where the screws will then be placed. STEP 5 –...
- Page 7 STEP 6 – Connect the fan to single-phase power mains through the automatic circuit breaker integrated into the fixed power mains. Cut power supply off prior to wireworks. The contact gap on all poles must be at least 3 mm. STEP 7 –...
-
Page 8: Wiring Diagram
WIRING DIAGRAM... - Page 9 STEP 8 – Screw in and fix the cover back onto terminal block using the provided screws. STEP 9 – Place the decorative cover back on. STEP 10 – Turn on mains power to supply power to the fan.
-
Page 10: Maintenance
MAINTENANCE The product surfaces must be regularly cleaned from dirt and dust. Cut off power supply prior to any maintenance operations. Use a soft cloth or compressed air to remove external dust. To clean internal surfaces, remove the front cover. Thoroughly clean the internal surfaces every 6 months using a soft dry cloth or a brush. - Page 12 reeze ation Manual...
