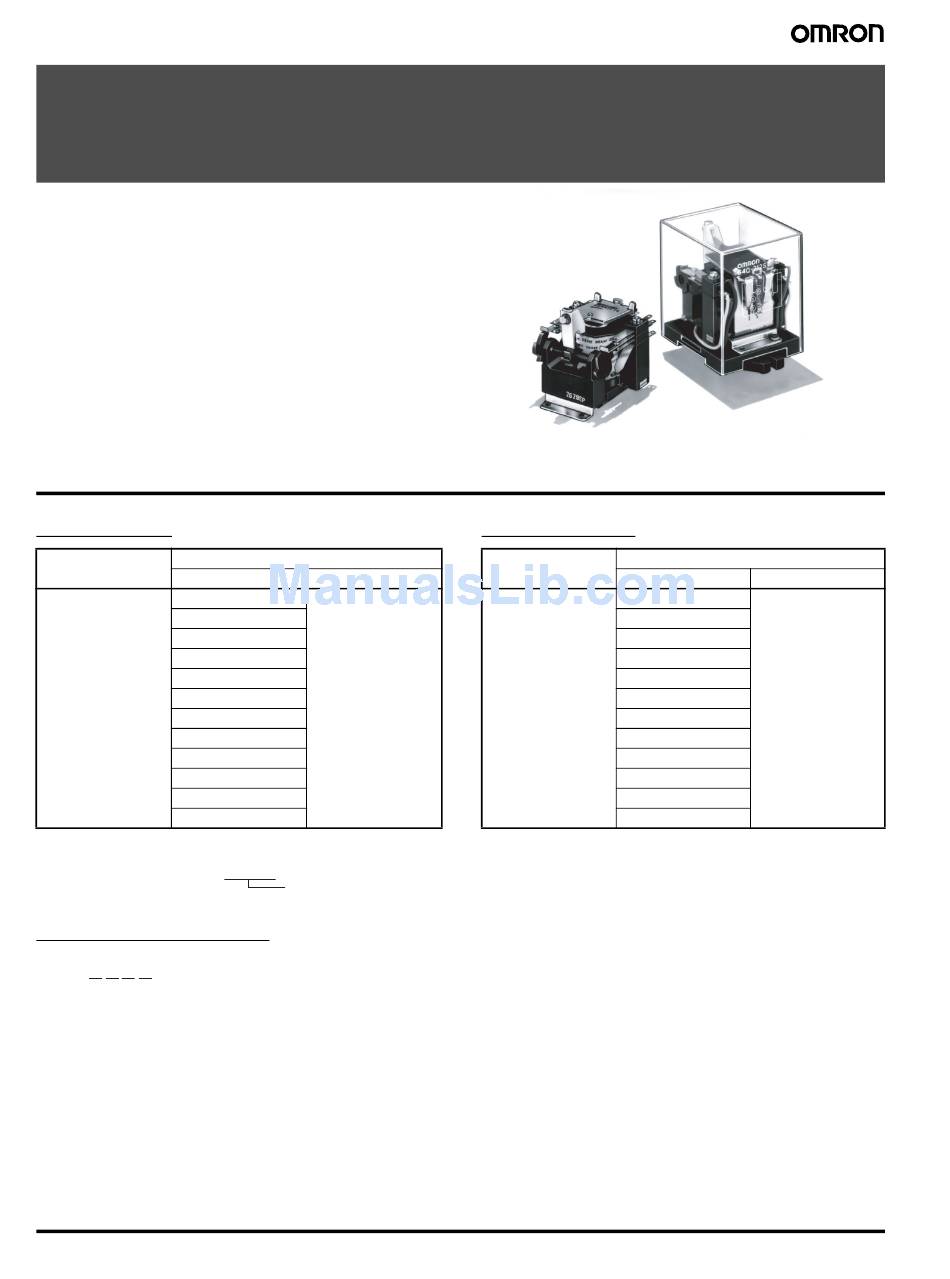

Ratchet Relay
G4Q
Unique Ratchet Mechanism Assures Positive
Alternate Transfer/Switching Operation
• Each contact in the double-pole contact mechanism performs
alternate make-brake operation at each pulse input and is thus
ideal for alternate operation or transfer/switching operation of a
motor.
• Positive operation is assured due to the unique ratchet mecha-
nism.
• Satisfies dielectric strength of 2,000 VAC.
• Low power consumption.
(AC: approx. 6.4 VA; DC: approx. 3.9 W)
Ordering Information
Open Models
Item
Rated voltage (V)
Basic model
6 VAC
12 VAC
24 VAC
50 VAC
100/(110) VAC
200/(220) VAC
6 VDC
12 VDC
24 VDC
48 VDC
100 VDC
200 VDC
Note:
When ordering, add the rated coil voltage (listed in Specifications) to the model number.
Example: G4Q-211A, 24 VAC
Model Number Legend
G4Q-@@@@
1
2 3
4
1. Contact Form
2:
DPDT
2. Contact Type
1:
Single
3. Enclosure Construction
1:
No casing
2:
Casing
208
Ratchet Relay
DPDT
Model
G4Q-211A
Rated coil voltage
G4Q
Plug-in Models
Item
Rated voltage (V)
Basic model
6 VAC
12 VAC
24 VAC
50 VAC
100/(110) VAC
200/(220) VAC
6 VDC
12 VDC
24 VDC
48 VDC
100 VDC
200 VDC
4. Terminal Shape
A:
Solder
S:
Plug-in
DPDT
Model
G4Q-212S
Advertisement
Related Manuals for Omron G4Q
Summary of Contents for Omron G4Q
- Page 1 48 VDC 100 VDC 100 VDC 200 VDC 200 VDC Note: When ordering, add the rated coil voltage (listed in Specifications) to the model number. Example: G4Q-211A, 24 VAC Rated coil voltage Model Number Legend G4Q-@@@@ 1. Contact Form 4. Terminal Shape...
-
Page 2: Specifications
19.2 10,400 Note: 1. The rated current and coil resistance are measured at a coil temperature of 23 C with tolerances of +15%/–20% for AC rated current and 15% for DC coil resistance. 2. The AC coil resistance values are for reference only. -
Page 3: Engineering Data
2. The contact resistance was measured with 0.1 A at 5 VDC using the voltage drop method. 3. The operate time was measured with the rated voltage imposed with any contact bounce ignored at an ambient temperature of 23 C. -
Page 4: Operation
Note: When a pulse for application to the coil is used, such a pulse should have a width of 100 ms or more. If a pulse is applied with a width less than the operate time, the cam may fail to rotate fully. - Page 5 Relay terminals. Coil ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. In the interest of product improvement, specifications are subject to change without notice. Cat. No. J070-E1-04...
