Turning LEDs ON and OFF (Shortcut)
LEDs
On
Connectors and USB Port
The housing is machined out of solid aluminum alloy for a rugged, lightweight
assembly.
The antenna attaches via SMA connector. The IR port is capped with a trans-
lucent window to broaden the reception angle. The input jack is a rugged,
watertight 3-pin connector with a threaded locking sleeve.
Battery door release tabs
Dock charging contacts
6
From the main "home" screen, the arrow keys also
turn the LEDs on and off. With no other button
pressed, the arrow turns the LEDs on and the
arrow turns them off. They can also be turned off or
set to constantly stay on via the SetUp menu.

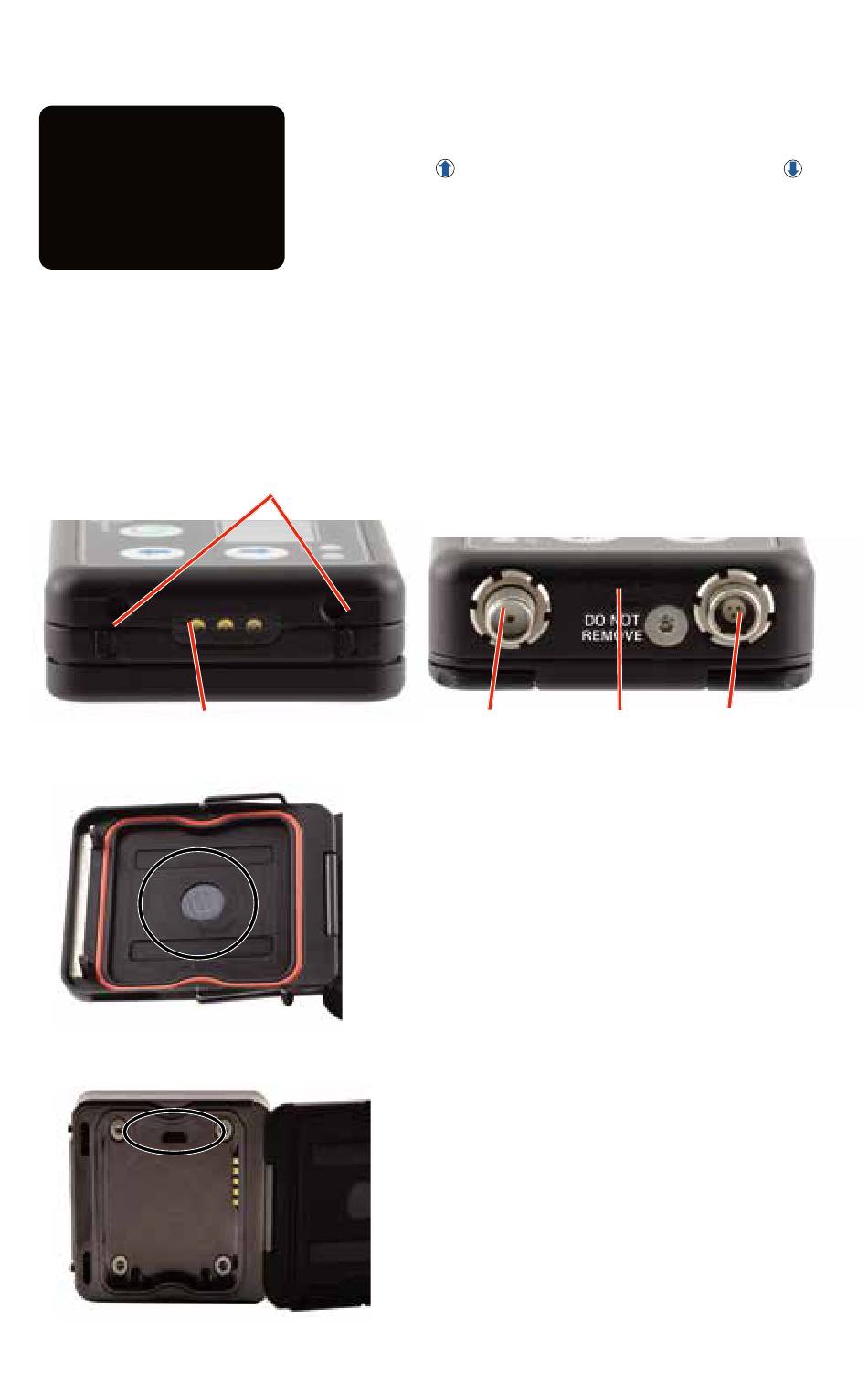

Connector
The opposite end of the transmitter
contains the battery door latches and
release tabs, along with the dock charging
contacts.
The battery door has a Gore-Tex® sealed
vent to allow air pressure to escape while
blocking moisture ingress.
The USB port, which is used for firmware
updates, is located inside the battery
compartment. When connected, the unit is
powered from the USB source.
IR window
SMA
