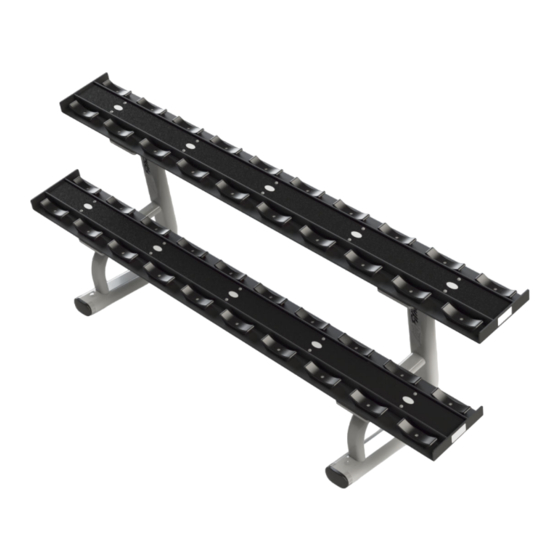

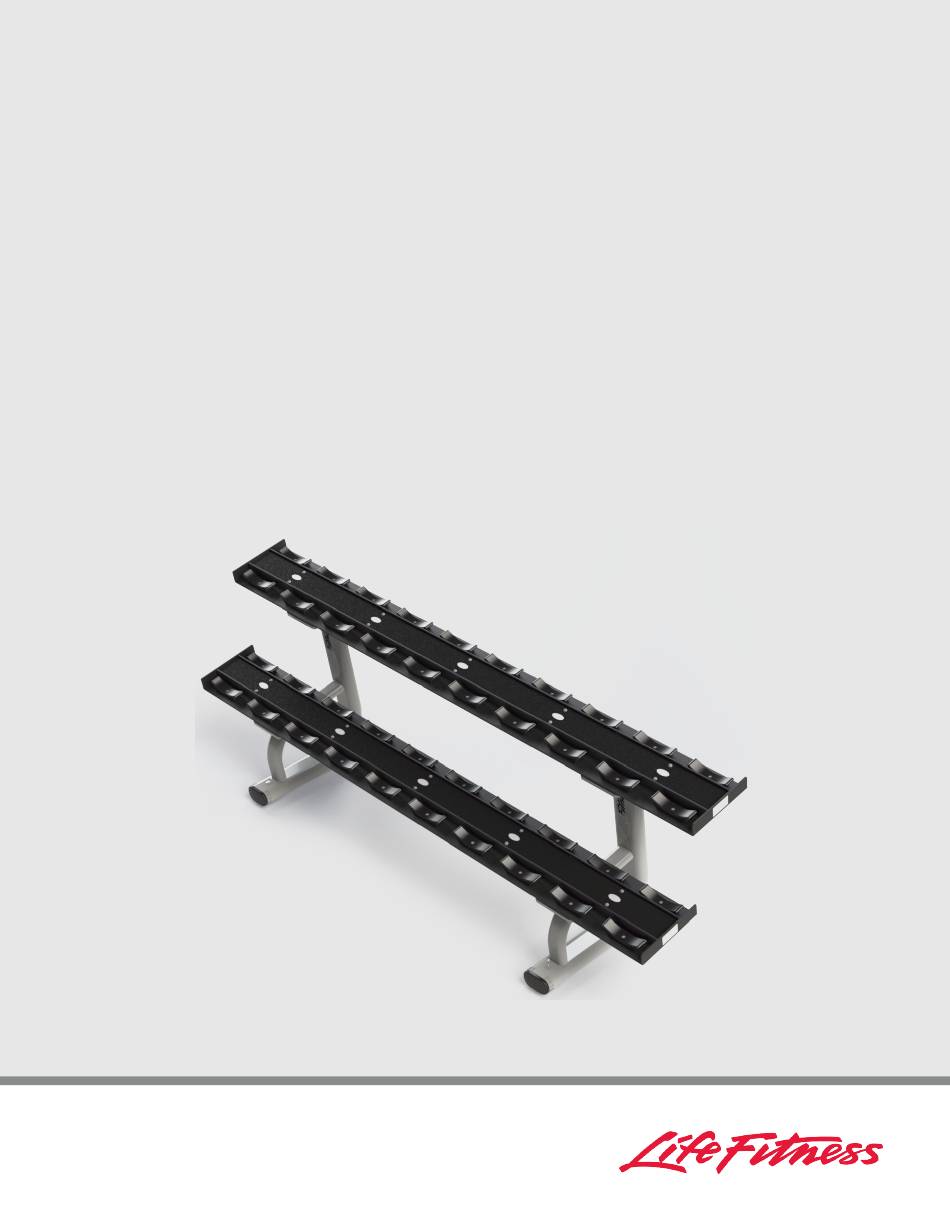

- Page 1 Life Fitness Two Tier Dumbbell Rack LBR-D2 Assembly Instructions 1024104-0001 REV AC...
- Page 3 10601 W Belmont Ave, Franklin Park, IL 60131 • U.S.A. 847.288.3300 • FAX: 847.288.3703 Service phone number: 800.351.3737 (toll-free within U.S.A., Canada) Global Website: www.lifefitness.com International Offices AMERICAS EUROPE, MIDDLE EAST, and AFRICA (EMEA) All Other EMEA Countries and Distributor...
- Page 4 User and Service Documents Link https://lifefitness9512.zendesk.com/hc/en-us https://www.lftechsupport.com/web/document-library/documents Additional information is available online using the links above. أ علاه إل ر إبط باستخدإم إ لإ ن تر نت على إضافية معلومات تتوفر 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link.
-
Page 5: Table Of Contents
Life Fitness, LLC and its affiliated companies and subsidiaries. Disclaimer: Images and specifications are current as of the date of publication and are subject to change. 10601 W Belmont Ave, Franklin Park, IL 60131 • 847-288-3300 • www.lifefitness.com • 1024104-0001 AC • 2023 Page 3 of 16... -
Page 6: Safety Information
1. Safety Safety Information It is the sole responsibility of the purchaser of Life Fitness Family of Brands products to read the owner’s manual and warning labels and instruct all individuals, whether they are the end user or supervising personnel, on proper usage of the equipment. -
Page 7: Product Labels
• Before use, examine all accessories approved for use with the Life Fitness Family of Brands equipment for damage or wear. Plate Loaded, Free Weight, and Body Weight Systems • Never exceed the load rating for any plate loaded station, body weight station, bench or other free weight device; including specific weight rod and band peg limits. -
Page 8: Label Locations
Label Locations Item Description Qty. 150 lb Max. Dumbbell Weight FCC Compliant Serial Number General Warning Bolt to Floor Locations Page 6 of 16... -
Page 9: Assembly
2. Assembly Components and Hardware Components Description Qty. Left Frame Assembly Tray Assembly Right Frame Assembly Hardware Bag Multi-Language Warning Sheet Tray Decal (KG) Tray Decal (LB) Hardware Item Description Qty. M10 Hex Nylock Nut 3/8 Washer M10 x 1.5 x 35mm Screw Hole Plug Tools Required •... - Page 10 • Tape measure • Torque wrench Page 8 of 16...
-
Page 11: Assembly Procedure
Assembly Procedure Assemble Dumbbell Rack 1. Remove the tray cover from the tray assembly by removing the #10 flat washers and M5 x .8 x 12 pan head screws. Item Description Qty. M5 x .8 x Pan Head Screw #10 Flat Washer Tray Cover Tray Assembly 2. - Page 12 4. Select the kilogram or pounds tray decals and place them onto the tray assemblies. Item Description Qty. Tray Decal Tray Decal (KG) Tray Decal (LB) 5. Gently tap hole plugs into base of unit. Item Description Qty. Hole Plug 6.
-
Page 13: Product Information
3. Product Information Specifications Machine Weight: 245 lbs. 111 kg. Size (L x W x H): in. = 25 x 90 x 33 cm = 64 x 229 x 84 Live Area (L x W): in. = 73 x 102 cm = 185 x 259 Max Dumbbell Weight: 150 lbs. -
Page 14: Bolt To Floor Guide Introduction
4. Bolt to Floor Guide Introduction Life Fitness Family of Brands designs its products to be stable when used as designed. Because strength training is dynamic, we cannot predict how users will ultimately use the products in all circumstances. Therefore, Life Fitness Family of Brands recommends that strength training equipment be secured to a solid, level surface to stabilize and eliminate rocking or tipping over. -
Page 15: Anchor Type - Static
Anchor Type - Static Static Anchor Standard Sizes Drill Bit Size Imperial: KH-EZ 3/8" x 5" 3/8in Metric: HUS-H 10mm x 130mm 10mm Anchor Specifications Static Anchor Minimum Concrete Minimum Drill Depth Minimum Concrete Minimum concrete Thickness in Concrete Embedment compressive strength KH-EZ 1/4”... -
Page 16: Static Anchor Procedure
• Vacuum (for debris) Static Anchor • Floor scanner / rebar detector (optional) • 1” L-shape SDS rotary hammer • 1/4" x 12" (6mm x 305mm) carbide drill bit (for 1/4” (6mm) anchors) • 3/8" x 12" (8mm x 305mm) carbide drill bit (for 3/8” (8mm) anchors) •... - Page 17 4. Insert fastener and tighten to 18 Foot-Pounds (24Nm) for 1/4” (6mm) anchor or 40 Foot-Pounds (54Nm) for 3/8” (8mm) anchor. NOTE: If the legs/frame do not contact the mounting surface DO NOT pull down with the fastener or anchor. Loosen frame hardware and re-tighten to allow machine to align.
-
Page 18: Foot Dimensions
Foot Dimensions Use below image to determine foot specifications. Page 16 of 16...
