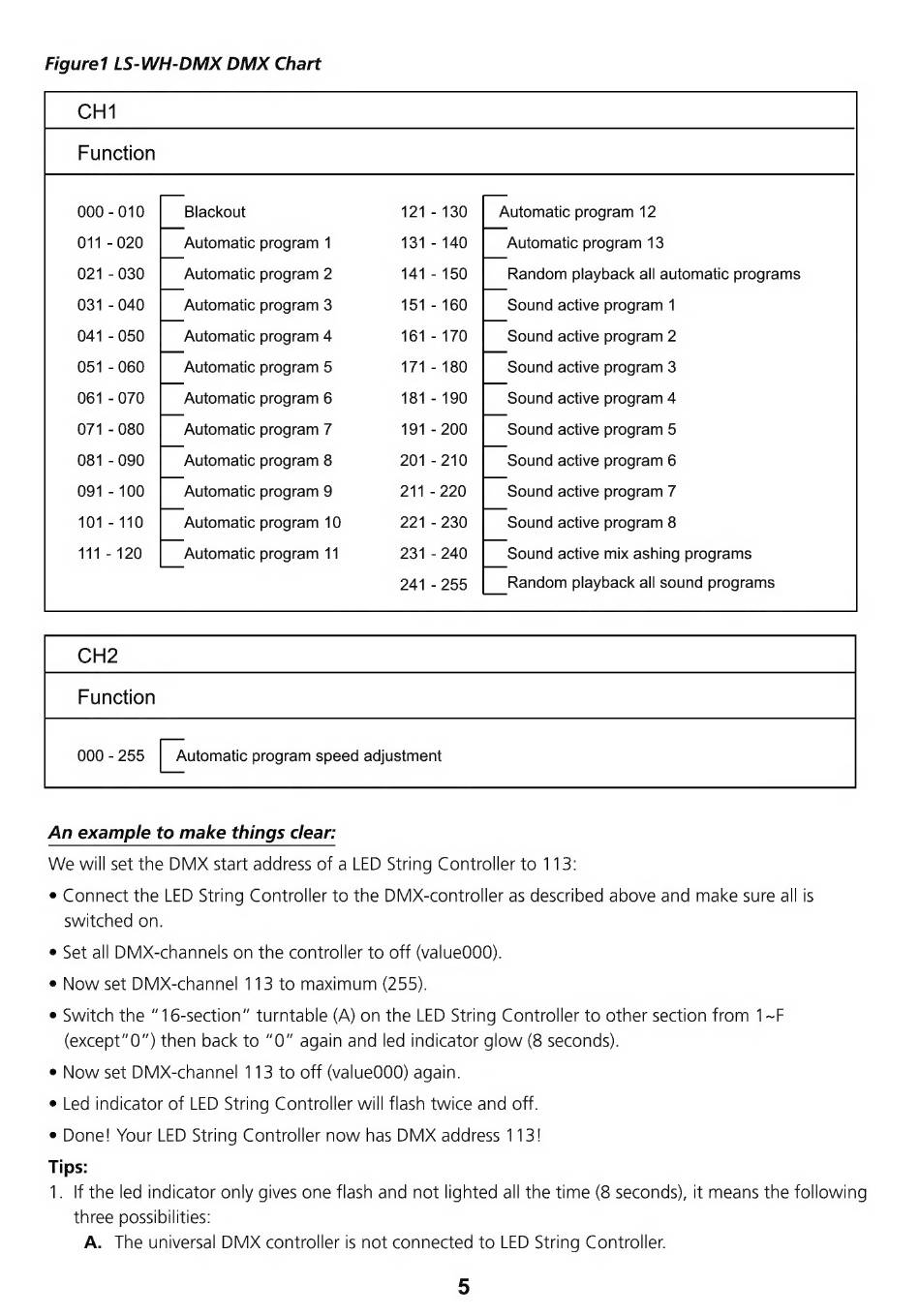

Figure1 LS-WH-DMX DMX Chart
Function
000 - 010 Blackout 121 - 130 Automatic program 12
011 - 020 Automatic program 1 131 - 140 Automatic program 13
021 - 030 Automatic program 2 141 - 150 Random playback all automatic programs
031 - 040 Automatic program 3 151 - 160 Sound active program 1
041 - 050 Automatic program 4 161 - 170 Sound active program 2
051 - 060 Automatic program 5 171 - 180 Sound active program 3
061 - 070 Automatic program 6 181 - 190 Sound active program 4
071 - 080 Automatic program 7 191 - 200 Sound active program 5
081 - 090 Automatic program 8 201 - 210 Sound active program 6
091 - 100 Automatic program 9 211 - 220 Sound active program 7
101 - 110 Automatic program 10 221 - 230 Sound active program 8
111 - 120 Automatic program 11 231 - 240 Sound active mix ashing programs
241 - 255 Random playback all sound programs
Function
000 - 255 | Automatic program speed adjustment
An example to make things clear:
We will set the DMX start address of a LED String Controller to 113:
е Connect the LED String Controller to the DMX-controller as described above and make sure all is
switched on.
® Set all DMX-channels on the controller to off (value000).
е Now set DMX-channel 113 to maximum (255).
e Switch the "16-section" turntable (A) on the LED String Controller to other section from 1-Е
(except" 0") then back to "О" again and led indicator glow (8 seconds).
е Now set DMX-channel 113 to off (value000) again.
е Led indicator of LED String Controller will flash twice and off.
е Done! Your LED String Controller now has DMX address 113!
Tips:
1. If the led indicator only gives one flash and not lighted all the time (8 seconds), it means the following
three possibilities:
A. The universal DMX controller is not connected to LED String Controller.
