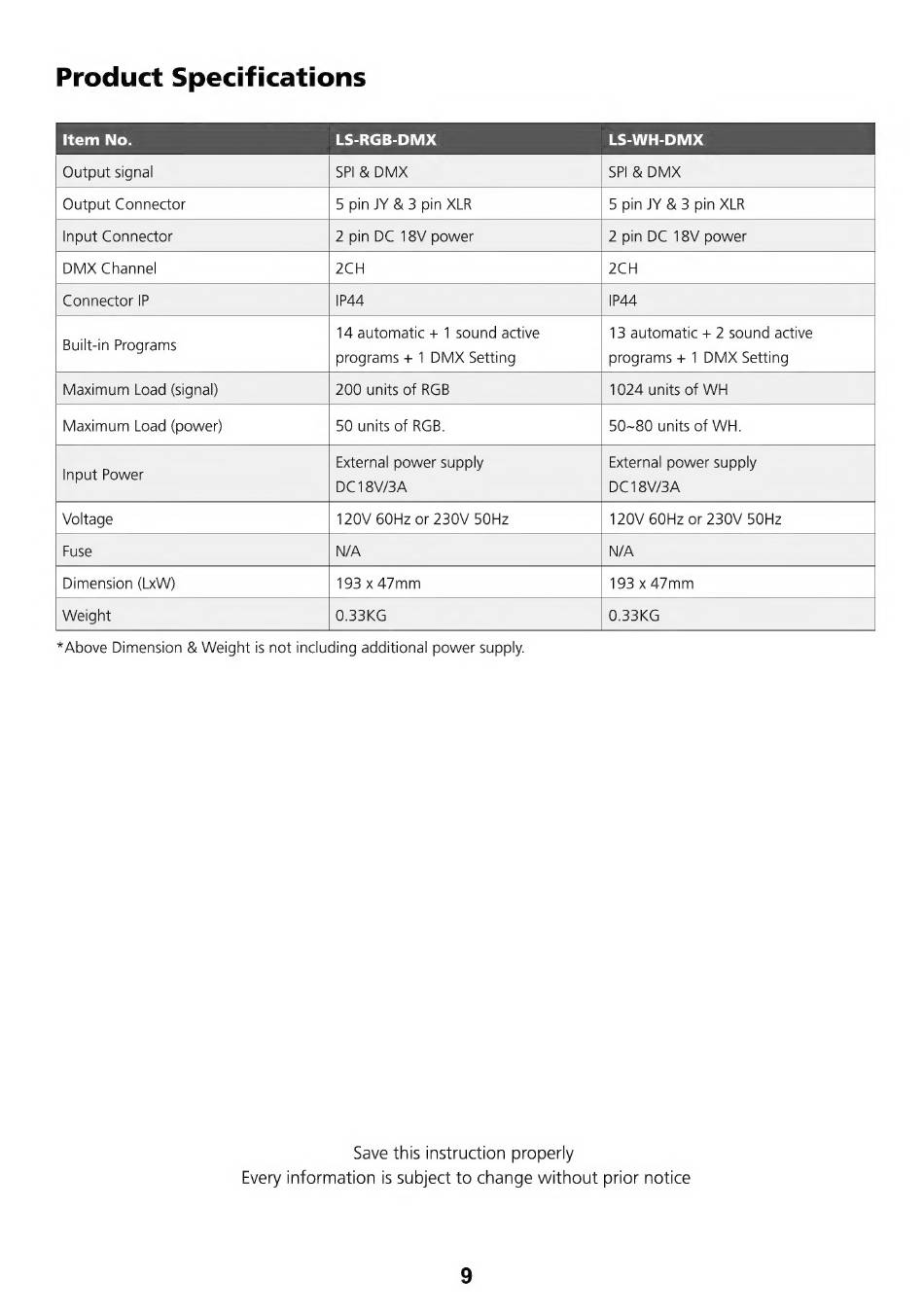

Product Specifications
Item No.
Output signal
LS-RGB-DMX
SPI & DMX
LS-WH-DMX
SPI & DMX
Output Connector 5 pin JY & 3 pin XLR 5 pin JY & 3 pin XLR
Input Connector 2 pin DC 18V power 2 pin DC 18V power
DMX Channel
2CH 2CH
Connector IP
ІР44 ІР44
Built-in Programs
14 automatic + 1 sound active
programs + 1 DMX Setting
13 automatic + 2 sound active
programs + 1 DMX Setting
Maximum Load (signal)
200 units of RGB 1024 units of WH
Maximum Load (power)
50 units of RGB. 50-80 units of WH.
Input Power
External power supply External power supply
DC18V/3A DC18V/3A
Voltage 120V 60Hz or 230V 50Hz 120V 60Hz or 230V 50Hz
Fuse N/A N/A
Dimension (LxW) 193 x 47mm 193 x 47mm
Weight 0.33KG 0.33KG
*Above Dimension & Weight is not including additional power supply.
Save this instruction properly
Every information is subject to change without prior notice
