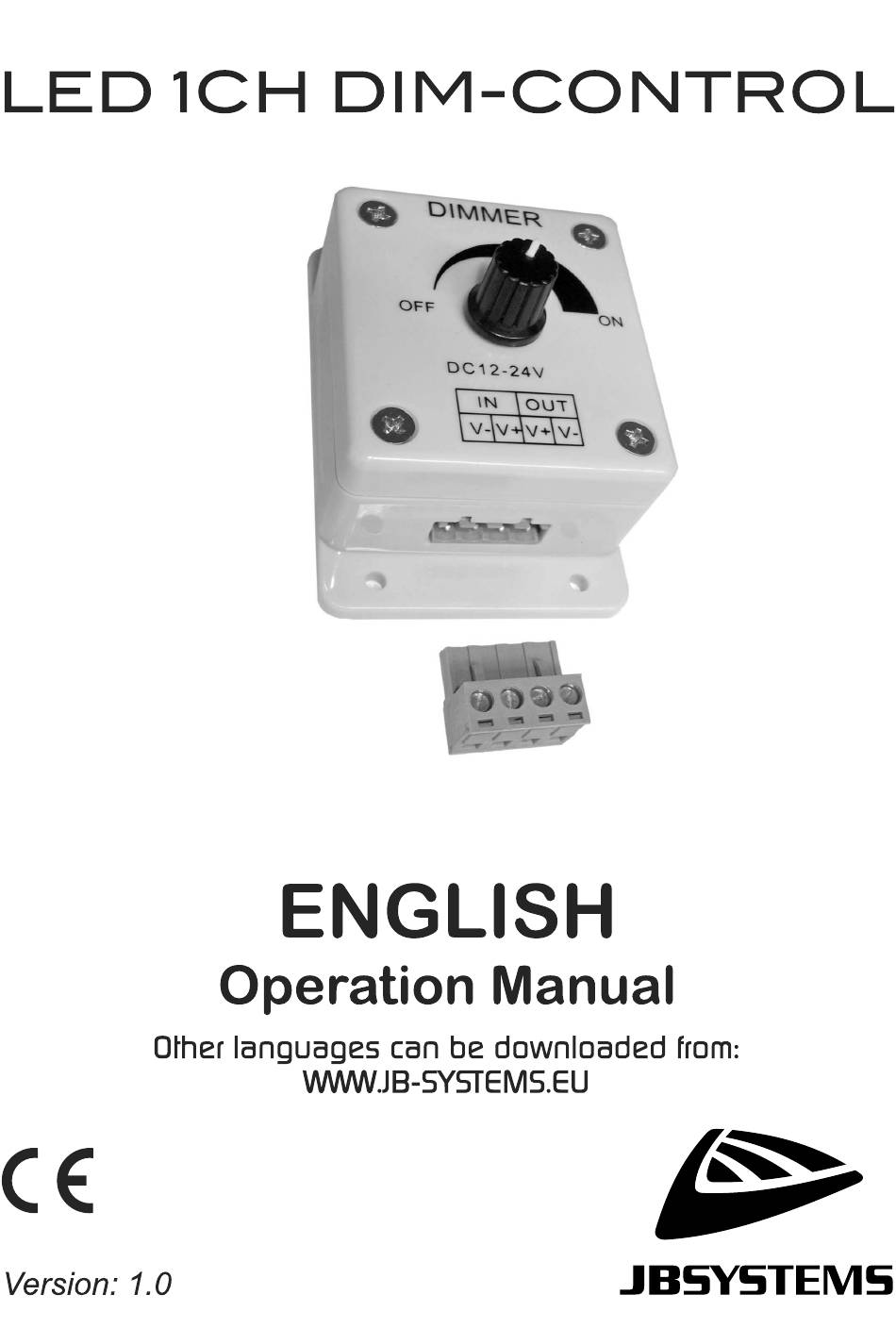

- Page 3 ENGLISH OPERATION MANUAL OPERATION MANUAL ® Thank you for buying this JB Systems product. To take full advantage of all possibilities, please read these operating instructions very carefully. FEATURES User-friendly 1channel dimmer for all kinds of 12Vdc / 24Vdc LED-projectors like led strips.
- Page 4 Due to safety reasons it is prohibited to make unauthorized modifications to the unit. MAINTENANCE Clean by wiping with a polished cloth slightly dipped with water. Avoid getting water inside the unit. Do not use volatile liquids such as benzene or thinner which will damage the unit. JB SYSTEMS LED 1CH DIM-CONTROL ®...
- Page 5 Remark: don’t connect more than 5m led strip in series, excessive current will damage the led strip. Instead you can connect the led strips in parallel. Connect the output of power supply2 to the power input of the LED-REPEATER. (don’t mix-up the polarity of the wires!) JB SYSTEMS LED 1CH DIM-CONTROL ®...
- Page 6 Use wires with a maximum cable section to reduce important voltage drops. Use at least 1,5mm² wires, for higher power and cable lengths we suggest 2,5mm². Even better is to calculate the voltage drop and use special charts to determine the perfect cable section. JB SYSTEMS LED 1CH DIM-CONTROL ®...
- Page 7 89 x 59 x 50 mm (incl. knob and surface-mount box) Weight: 65 g Every information is subject to change without prior notice You can download the latest version of this user manual on our website: www.jb-systems.eu JB SYSTEMS LED 1CH DIM-CONTROL ®...
