  • Page 3: Before Use

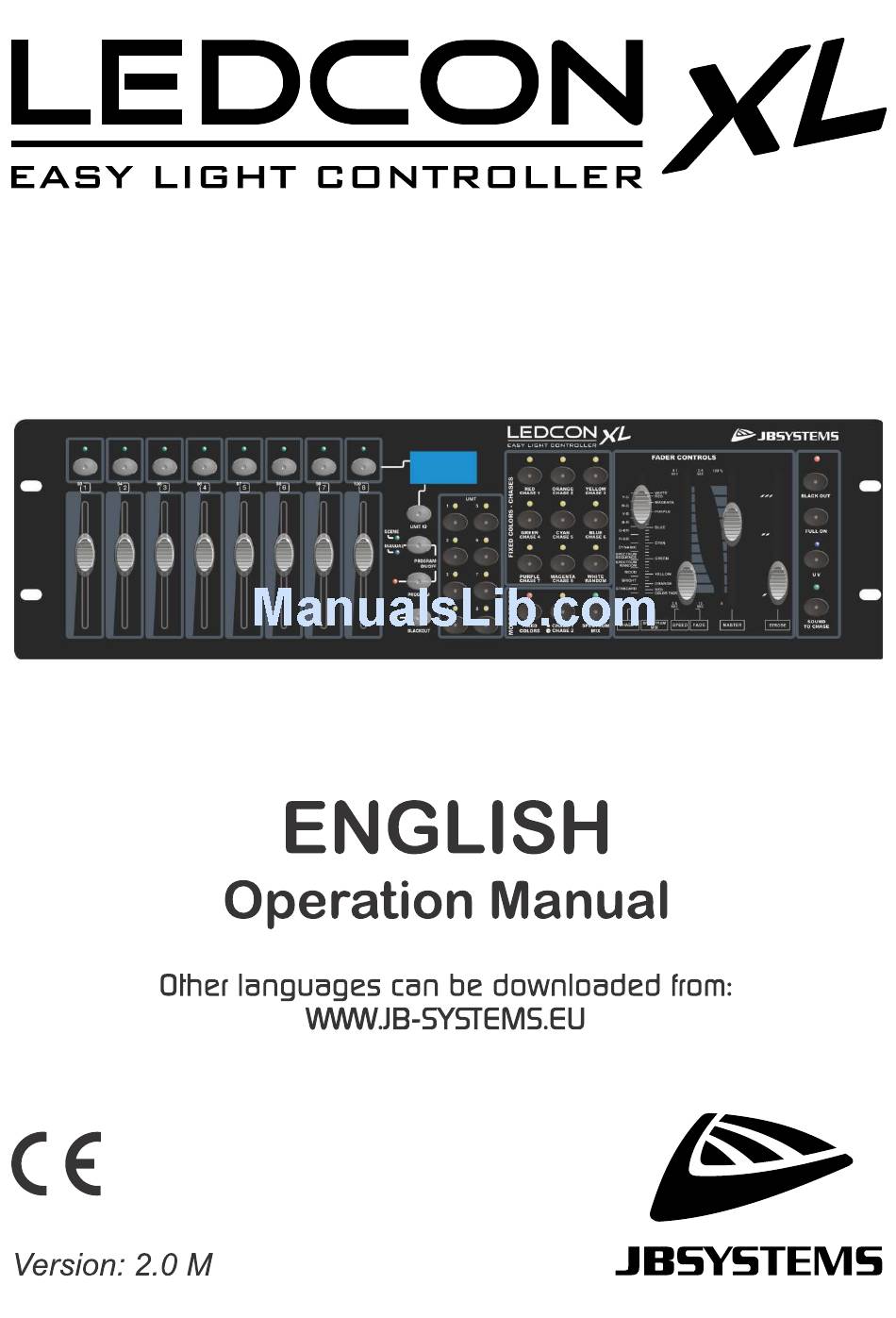

    ENGLISH OPERATION MANUAL OPERATION MANUAL ® Thank you for buying this JB Systems product. To take full advantage of all possibilities, please read these operating instructions very carefully. FEATURES  This LEDCON-XL is probably THE controller you were always dreaming of.

  • Page 4: Safety Instructions

     Due to safety reasons it is prohibited to make unauthorized modifications to the unit. MAINTENANCE Clean by wiping with a polished cloth slightly dipped with water. Avoid getting water inside the unit. Do not use volatile liquids such as benzene or thinner which will damage the unit. JB SYSTEMS LEDCON-XL ®...
  • Page 5 [SCENE/MANUAL] button (4), you can set the controller in [PROGRAM] mode. For more information on using the [PROGRAM] button, see chapter “HOW TO SETUP”. 6. [BLACKOUT] BUTTON: used to shutoff the DMX-output of the Fader section. FUNCTIONS LED PROJECTOR SECTION JB SYSTEMS LEDCON-XL ®...
  • Page 6 You can read the value on the display.  When you have found the right setting, press the [SOUND TO CHASE] button again for about 3 seconds to exit this sound adjustment mode  This new value is now stored in your unit JB SYSTEMS LEDCON-XL ®...

  • Page 7: How To Set Up

    For Example:  Connect a JB Systems SCENEMASTER to the input of the LEDCON-XL  100 DMX channels will be added to the original channels of the SCENEMASTER  This means Channel 001 of the SCENEMASTER will control DMX channel 101 in the DMX line ...
  • Page 8 H. When all the settings are done and all the [UNIT] LEDs are off, press the [UNIT ID] button for about 3 seconds till [Play] appears on the display. I. You can now start using the controller JB SYSTEMS LEDCON-XL ®...
  • Page 9 Set this [Patch] for the 4 individual projectors of your 4-bar (= 4 [UNIT] buttons on the LEDCON-XL).  If you have older JB Systems 4-bars without this special [LC-XL] or [LEDCON-XL] mode, you can use [Patch 01]. In this case, the projectors of the 4-bar will always work by pairs. (2 projectors will be seen as a single projector).

  • Page 10: Specifications

    RCA or internal microphone Size: 482 x 133 x 75 mm Weight: 2.2 kg The information is subject to change without prior notice. You can download the latest version of this user manual on our website: www.jb-systems.eu JB SYSTEMS LEDCON-XL ®...
