Summary of Contents for JB Systems EZ-CON 6

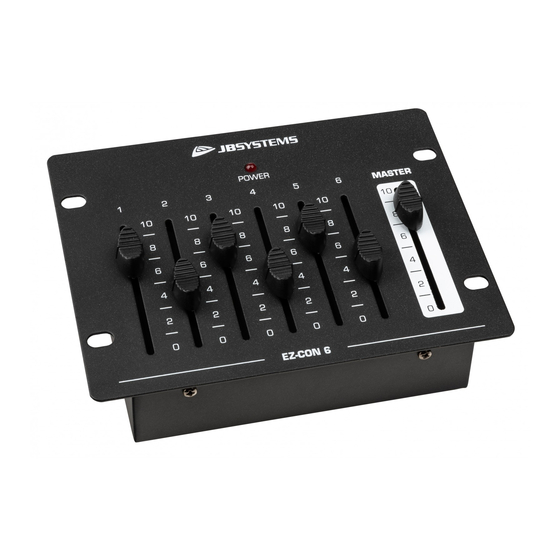

  • Page 3 FEATURES • The EZ-CON 6 is a basic but very useful small DMX controller. • It’s ideal to use with all kinds of devices with very few DMX channels. • The controller sends out 6 DMX channels.
  • Page 4 • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. MAINTENANCE Clean by wiping with a polished cloth slightly dipped with water. Avoid getting water inside the unit. Do not use volatile liquids such as benzene or thinner which will damage the unit. JB SYSTEMS EZ-CON 6 ®...
  • Page 5 1. CHANNEL FADERS: change the output level of the channel. 2. POWER INDICATOR: when the power is ON, this indicators is lit. 3. MASTER FADER: change the output level of the controller. 4. DMX OUTPUT: sends the DMX signal to the connected devices. JB SYSTEMS EZ-CON 6 ®...
  • Page 6 7. MAINS INPUT with IEC14 socket and integrated fuse holder, connect the supplied mains cable here. ADDRESSING THE CONNECTED UNITS Each time you build a different installation with the EZ-CON 6, you should check the DMX addresses of the connected projectors.
