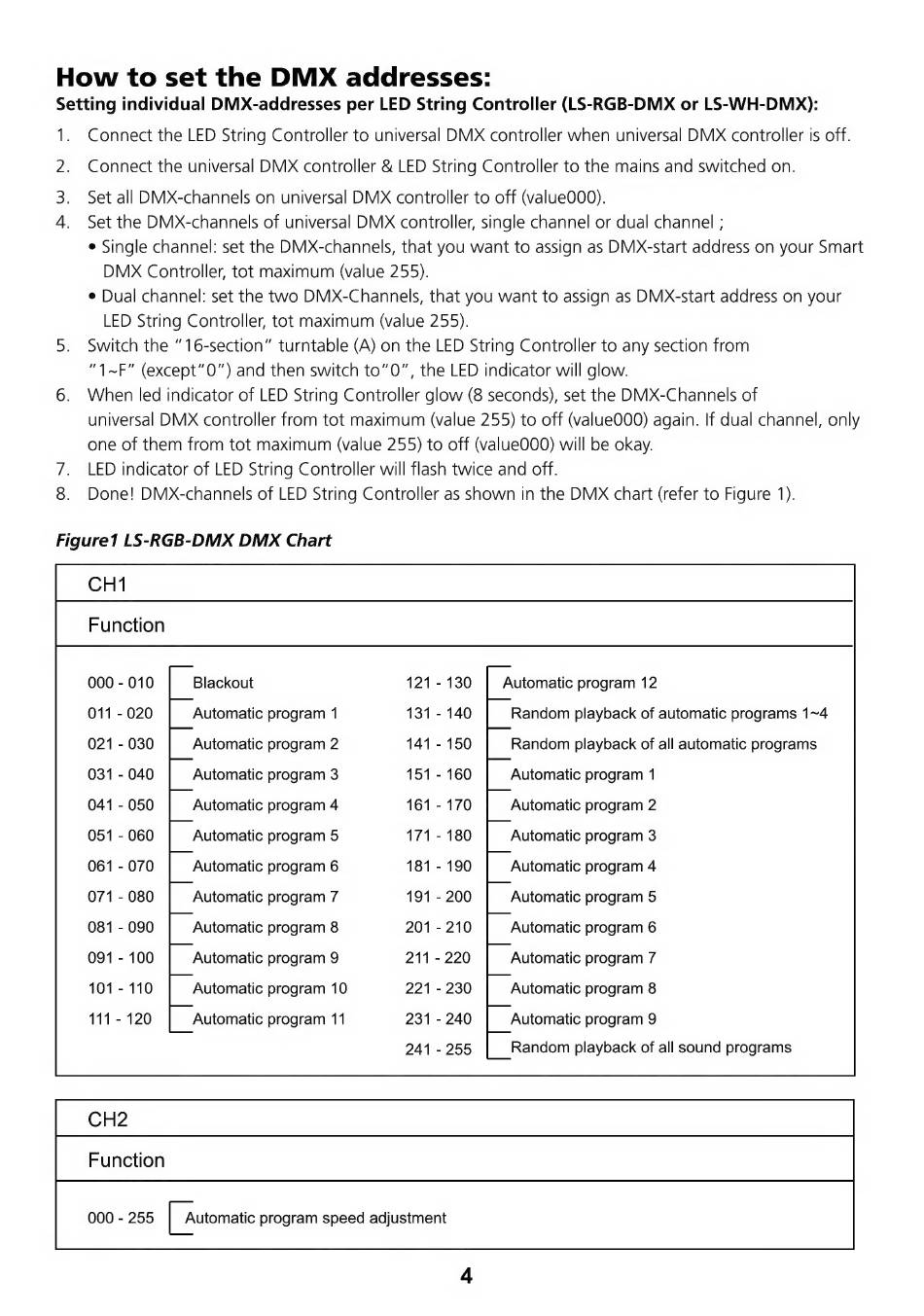

How to set the DMX addresses:
Setting individual DMX-addresses per LED String Controller (LS-RGB-DMX or LS-WH-DMX):
ls
О Я
Connect the LED String Controller to universal DMX controller when universal DMX controller is off.
Connect the universal DMX controller & LED String Controller to the mains and switched on.
Set all DMX-channels on universal DMX controller to off (value000).
Set the DMX-channels of universal DMX controller, single channel or dual channel ;
® Single channel: set the DMX-channels, that you want to assign as DMX-start address on your Smart
DMX Controller, tot maximum (value 255).
* Dual channel: set the two DMX-Channels, that you want to assign as DMX-start address on your
LED String Controller, tot maximum (value 255).
Switch the "16-section" turntable (A) on the LED String Controller to any section from
"1-Е" (except"0") and then switch to"O", the LED indicator will glow.
When led indicator of LED String Controller glow (8 seconds), set the DMX-Channels of
universal DMX controller from tot maximum (value 255) to off (value000) again. If dual channel, only
one of them from tot maximum (value 255) to off (value000) will be okay.
LED indicator of LED String Controller will flash twice and off.
Done! DMX-channels of LED String Controller as shown in the DMX chart (refer to Figure 1).
Figure1 LS-RGB-DMX DMX Chart
Function
000 - 010 Blackout 121 - 130 Automatic program 12
011 - 020 Automatic program 1 131 - 140 Random playback of automatic programs 1-4
021 - 030 Automatic program 2 141 - 150 Random playback of all automatic programs
031 - 040 Automatic program 3 151 - 160 Automatic program 1
041 - 050 Automatic program 4 161 - 170 Automatic program 2
051 - 060 Automatic program 5 171 - 180 Automatic program 3
061 - 070 Automatic program 6 181 - 190 Automatic program 4
071 - 080 Automatic program 7 191 - 200 Automatic program 5
081 - 090 Automatic program 8 201 - 210 Automatic program 6
091 - 100 Automatic program 9 211 - 220 Automatic program 7
101 - 110 Automatic program 10 221 - 230 Automatic program 8
111 - 120 Automatic program 11 231 - 240 Automatic program 9
241 - 255 Random playback of all sound programs
Function
000 - 255 | Automatic program speed adjustment
