- Page 1 USB Type-C 7 Port Hub with 3 Type-C & 5 Type-A Ports w/DIN Rail – Surge Protection Product Manual Coolgear, Inc. Version 1.1 September 2017 Model Number: CG-7PU313C www.coolgear.com...
- Page 2 Coolgear New Manual Format About this document This product manual outlines installation and features of the CG-7PU313C USB Type-C 7 Port Hub with 3 Type-C & 5 Type-A Ports w/DIN Rail – Surge Protection. Scope The scope of this manual is to give the user of the product an understanding of its use with detailed diagrams and verbiage.
- Page 3 CG-7PU313C – Product Manual Table of Contents 1. Introduction ......................4 Features ........................4 Connector Layout ....................5 Hardware Installation ..................... 5 Checking the Hub Installation ................. 6 Environmental Specifications ................. 6 2. Notes, Tips, Warnings, and Safety ................. 7 3.
- Page 4 CG-7PU313C – Product Manual 1. Introduction USB 3.1 USB-C hub incorporates 5 USB Type-A and 2 USB-C reversible ports downstream and 1 USB-C Upstream port. This is a great hub choice for applications that need USB 3.1 5Gbps data speeds and multiple mounting options. It is backward compatible with USB 2.0/1.1 compliant host using its RISC-like USB controller.

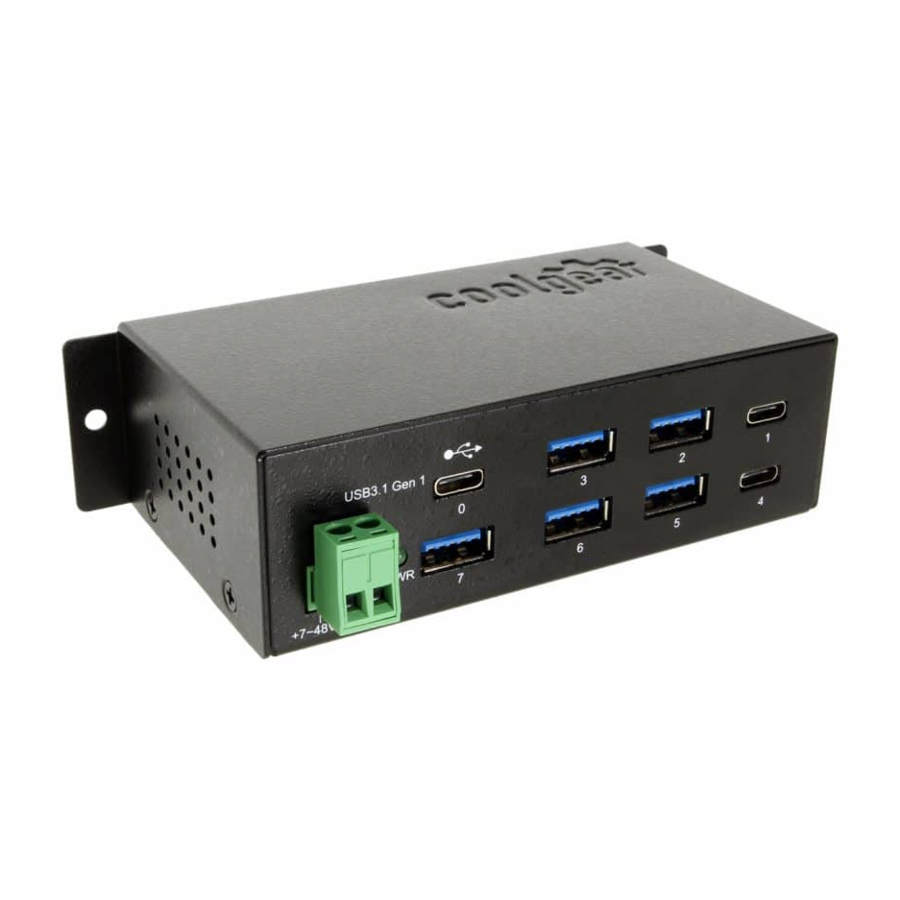

- Page 5 CG-7PU313C – Product Manual 1.2 Connector Layout Figure 1 USB C Upstream Port USB C Downstream Port Self Power Input Type-C connector from The two small 24-pin USB-C This 2-pin (one pin for upstream USB 3.1 port. It is connectors are fully...
- Page 6 CG-7PU313C – Product Manual connect the Type-A end connector of the cable to your PC’s host USB 3.0 port, then insert the type-B end connector to this hub. Since the USB hub is plug-and-play, you don’t have to turn off your host computer when installing the hub.
- Page 7 CG-7PU313C – Product Manual 2. Notes, Tips, Warnings, and Safety In some cases, during hardware installation, you will see an error message said that the USB Hub caused the USB bus power over the current limit, Note please ignore this message since the hub is hot plug and its power capacitor will cause a very short period of current.
- Page 8 © 2017 Coolgear, Inc. All Rights Reserved. All products and accompanying digital documentation including images are the property and / or trademarks of Coolgear Inc. Coolgear Inc. are continuously improving upon its products. Product specifications are subject to change without notice.
