Battery Installation / Belt Clip - Snap-On VERSATORQ 2 SYSTEM Manual

Battery Installation / Belt Clip

The VERSATORQ®2 meter is shipped with three AA batteries installed.
Positive Battery Orientation
Battery Strap Retaining Clip
Negative Battery Orientation
Battery Strap Retaining Clip Tabs
Battery Strap Retaining Holes
Battery Installation
Procedure:
1. Remove the four VERSATORQ®2 case housing retaining hex screws
using a 5/64" hex tool, and lift off the case (Figure2).
2. With the battery holder exposed (Figure 1), lift the Battery
Strap Retaining Tabs and remove (Figure 3), and install three AA
Batteries in the correct orientation as shown in (Figure 1).
3. Reinstall the Battery Strap Retaining Clip and VERSATORQ®2 case
Housing and reinstall the four retaining screws.

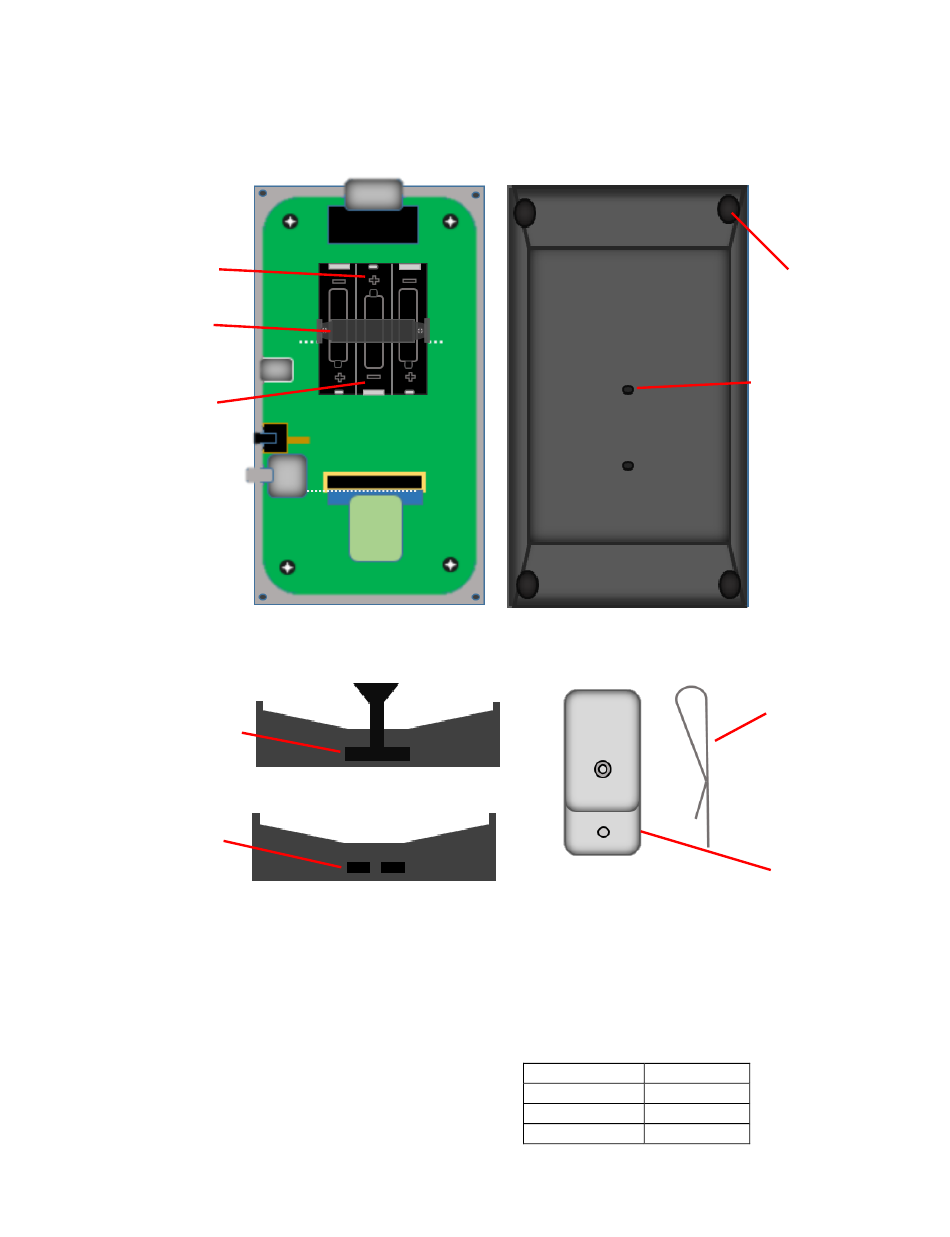

Figure 1
Figure 3
Figure 4
Figure 2
Figure 5 Figure 6
IMPORTANT!
USE ONLY the below SPECIFIED AA batteries
French : Utilisez uniquementdes piles indiquèes dans le
manuel d'utilisation
WARNING!
DO NOT REPLACE BATTERIES WHEN AN EXPLOSIVE
ATMOSPHERE IS PRESENT!
Manufacturer Part No.
Energizer E91
Panasonic LR6XWA
Duracell MN1500
Four 5/64" Hex
Screws
(6-32 x ½ long)
Two threaded holes for Belt
Clip 1/16" Hex
Screws
(Two 4-40 x ¼" long screws)
Screws
Belt Clip Side View
Belt Clip Front View
