Bionet Cardio Q50 Quick Manual

Cardio Q50 / Cardio Q70 Quick Manual
How to start the device
Please check the following Before using the device.
l Operating procedure l
ᆞConnect the power cable to the device and press the 'POWER' switch.
ᆞConnect the ECG cable to the patient in compliance with the ECG measurement preparations.
ᆞCheck the setting status for filter, signal size, output speed, channel configuration, rhythm lead, etc., and
set them to the desired value if you want to modify them.
ᆞEnter patient information according to the patient information input method.
ᆞRefer to What to Do with Poor Lead Connection if the waveform drawn in the LCD screen is abnormal or
there is too much noise.
ᆞIf the waveform displayed on the LCD screen is normal, press the [AUTO] key to record the ECG.
ᆞPress the [COPY] key either to show the 10-second data on the screen, as originally entered, or print it
out as modified in your settings.
ᆞPress the [RHYTHM] key to print out the ECG signal waveform in real-time.
ᆞPress the [ESC] key to stop printing or saving the ECG results.
How to read the eIFU
1) https://www.ebionet.com/operation-manuals/
2) After entering the provided password, you can download the eIFU.
Product Configuration
▣ Basic composition and accessories

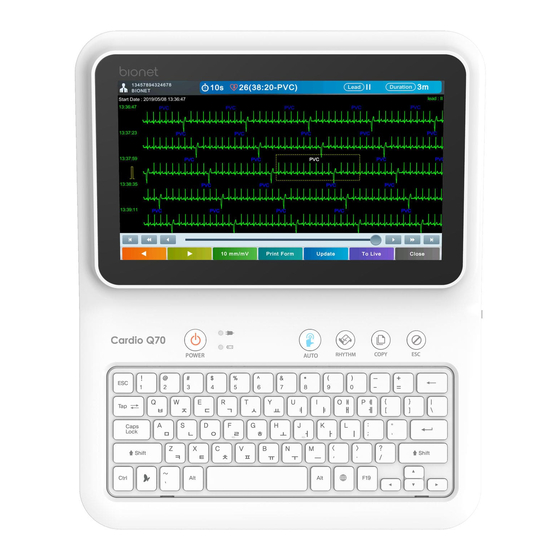

① Cardio Q50 / Cardio Q70 Main Body (1EA)
② Patient Cable (1EA)
③ Limb Electrodes (1SET)
④ Chest Electrodes (1SET)
⑤ ECG Chart Paper (1EA)
⑥ Power Cable (1EA)
⑦ ECG Gel (1EA)
⑧ ECG Diagnosis Guide (1EA)
⑨ Rechargeable Battery (1EA)
Rev. 1.01
PW: C9Mbh5
▣ Optional items
① Spiro Handle (1EA)
② Spiro Diagnosis Guide (1EA)
③ Nose Clip (1EA)
④ Mouthpiece Adaptor (1EA)
⑤ Handle Dock (1EA)
⑥ Disposable Mouthpiece (100EA)
⑦ PFT Filter (20EA)
⑧ Calibration Syringe [3L] (1EA)
⑨ Spiro Connector (1EA)
Rev. 1.01 / Apr. 2023
