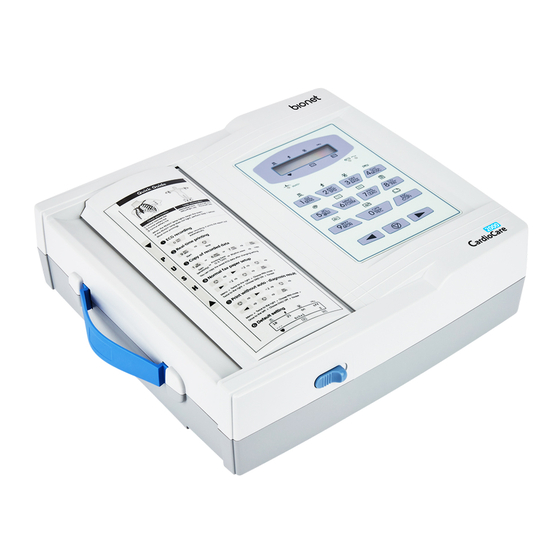

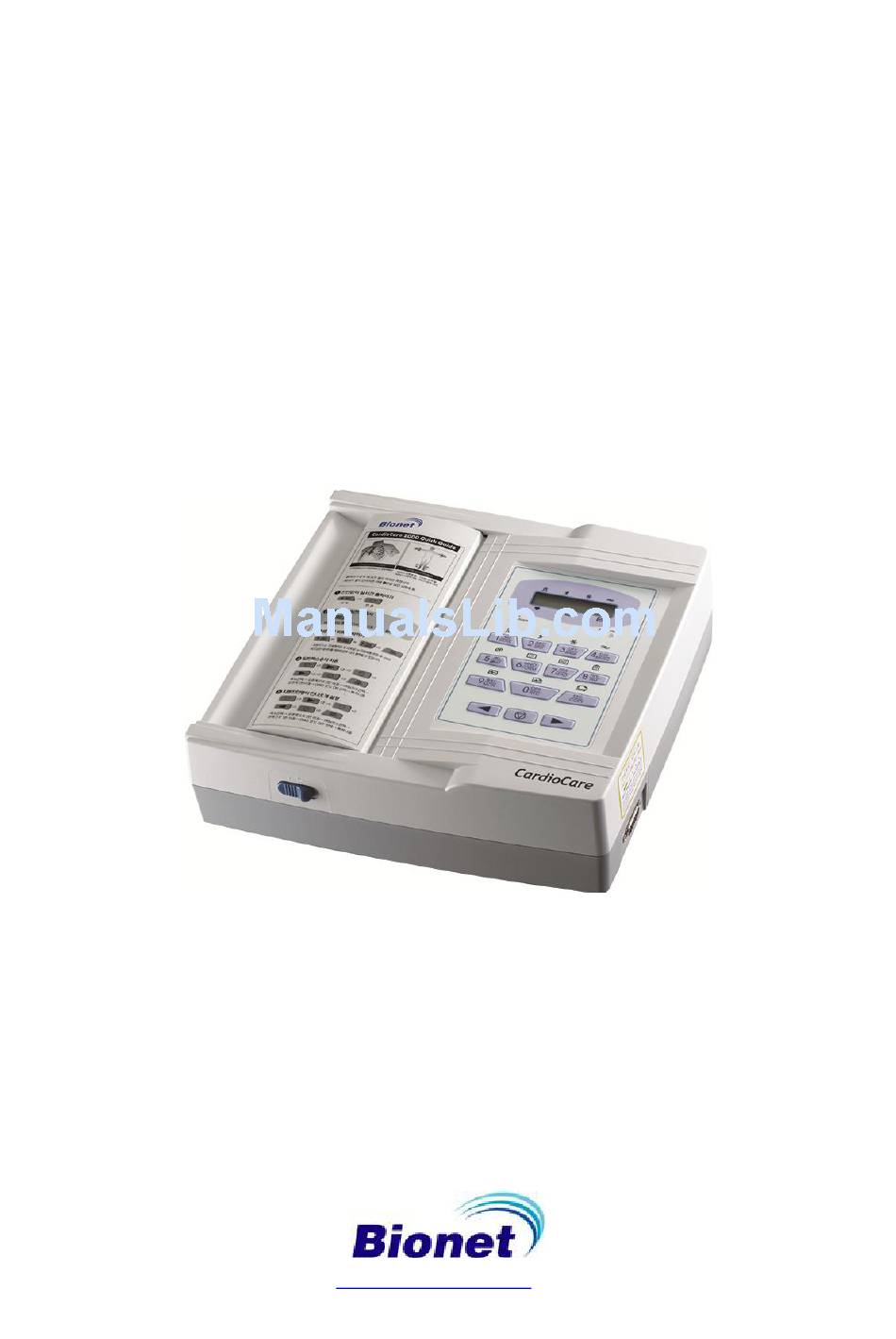

CardioCare 2000
OPERATION MANUAL
Ver. 2.41
www.ebionet.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CardioCare 2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bionet CardioCare 2000

Summary of Contents for Bionet CardioCare 2000

  • Page 1 CardioCare 2000 OPERATION MANUAL Ver. 2.41 www.ebionet.com...
  • Page 2 “Consumer’s protection law” noticed by Ministry of Finace and Economy. EKG 2000 is warranted by Bionet Co., Ltd. to be free from defects in material and workmanship for one year(two years in Europe) from date of purchase.
  • Page 3 E-mail : sales@ebionet.com URL : http:// www.ebionet.com ※ In the event of a malfunction or failure, contact Service Dept. of Bionet Co., Ltd along with the model name, serial number, date of purchase and explanation of failure. ※ If you need the supply circuit diagram, component list, description and calibration instruction etc.
  • Page 4 CardioCare2000 Operation Manual Definition of Warning, Caution, Note  For a special emphasis on agreement, terms are defined as listed below in operation manual. Users should operate the equipment according to all the Warning and Caution.  Manufacturer or Sales agency takes no responsibility for any kind of damage or breakdown that is caused by misuse and failure to maintain the equipment.
  • Page 5 Refer servicing for equipment to Bionet Co., Ltd authorized service personnel. Any attempt to repair equipment under warranty will void that warranty. It is the responsibility of users requiring service to report the need for service to Bionet Co., Ltd., or to one of their authorized agents.
  • Page 6 Power off when Do not disjoint or the equipment is disassemble the not fully installed. equipment. Bionet Otherwise, Co., Ltd. takes no equipment could responsibility for it be damaged. 6 / 61 Ver. 2.41...
  • Page 7 CardioCare2000 Operation Manual General Precaution on Electric Safety Check the items listed below before operating the equipment. - Be sure that AC power supply line is appropriate to use. (100 - 240V AC). - Be sure that the entire connection cable of the system is properly and firmly fixed. - Be sure that the equipment is completely grounded.

  • Page 8: Safety Symbols

    CardioCare2000 Operation Manual Safety Symbols The International Electrotechnical Commission (IEC) has established a set of symbols for medical electronic equipment which classify a connection or warm of any potential hazards. The classifications and symbols are shown below. Save these instructions. Symbols contents Isolated patient connection.

  • Page 9: Table Of Contents

    CardioCare2000 Operation Manual Table of Contents Table of Contents ................9 Chapter 1. General Information ........... 11 1) Introduction ................12 2) Features of the equipment ............12 3) Equipment description .............. 13 Standard accessories ..................13 Options ......................13 Main Unit .......................
  • Page 10 CardioCare2000 Operation Manual Chapter 3. Recording of ECGs ..........31 1) Introduction ................32 2) Basic setting ................33 General information ..................33 Signal Level Setting ..................33 Display speed setting ..................33 Filter Setting ....................34 Channel form setting ..................35 Rhythm channel setting .................

  • Page 11: Chapter 1. General Information

    CardioCare2000 Operation Manual Chapter 1. General Information 1) Introduction 2) Features of the equipment 3) Equipment description Standard Accessories Options Main Unit LCD Panel Control Panel AC Power 4) System Installation 5) Menu Structure 6) System Settings Initial Setting Date and Time User Identification Language 11 / 61...

  • Page 12: Introduction

    CardioCare2000 Operation Manual 1) Introduction EKG2000 is 12ch ECGs equipment which measure and record ECGs of the patient. EKG2000 provides users with ECGs record of the patient, measurement parameters for diagnosis and auto analysis. Patient information and user identification printed along with ECGs on the output report is effective for hospital chart control.

  • Page 13: Equipment Description

    CardioCare2000 Operation Manual 3) Equipment description EKG 2000 is composed of the items as follows. Checks out all the listed accessories are available after opening the packaging box. Also, check if the main unit and accessories are damaged or harmed Standard accessories ①...

  • Page 14: Main Unit

    CardioCare2000 Operation Manual Main Unit ▣ Front View ④ ① ⑤ ② ③ ① Knob ② Printer door ③ Printer door release button ④ LCD ⑤ Control panel 14 / 61 Ver. 2.41...
  • Page 15 CardioCare2000 Operation Manual ▣ Rear view ① ② ③ ④ ⑤ ① Potential equalization stud ② Main power switch ③ AC power socket ④ RS-232C SERIAL port ⑤ LAN port ▣ Left side view ① ① Handle 15 / 61 Ver.
  • Page 16 ▣ Right side view ① ① Patient cable connection port Warning Do NOT disassemble the case of the equipment to avoid the electric shock. Refer servicing to Bionet Co., Ltd qualified personnel or your local authorized dealer. 16 / 61 Ver. 2.41...

  • Page 17: Lcd Panel

    CardioCare2000 Operation Manual LCD Panel LCD panel displays system setting status after indicating the version of the system and manufacturer name for 2 seconds when power is turned on. Displayed items on the LCD are as follows. ① ② ③ ④...

  • Page 18: Control Panel

    CardioCare2000 Operation Manual Control panel ▣ Indicator lamp Indicate the lead connection status. If LED is illuminated green, connection status is good . If LED is off, connection status is bad. In this case, check off which one of lead connection is in lead-off status through monitor mode output.
  • Page 19 CardioCare2000 Operation Manual Select channel form of the output report out of 3ch+1rhy, 6ch+1rhy, 12ch rhy, 60s 1rhy Select rhythm channel Call up the menu to enter patient ID, name, age, sex, height, weight Display real-time ECGs from the patient continuously or monitoring the patient ECGs for long time, Record ECGs for 10 seconds by pressing key and prints in A4 sized report form after calculating the measurement parameter of the recorded...

  • Page 20: Ac Power

    CardioCare2000 Operation Manual AC Power When AC power is supplied to the equipment, AC power indicator lamp at the front side is illuminated green and battery is being charged automatically. Battery charge AC Power indicator lamp indicator lamp If no battery is installed, battery indicator lamp will be off. Once a battery is plugged in and the device is powered on, it will change its power mode to supply power to the battery.

  • Page 21: System Installation

    Replace the fuse of the equipment if power is not turned on despite that power cord is connected and battery power is in normal condition. Contact service dept. of Bionet Co.,Ltd if the equipment is not operated after replacing fuse.

  • Page 22: Patient Cable Connection

    CardioCare2000 Operation Manual Patient Cable Connection Connect the patient cable into the connection port at the rear of the equipment. Connect the limb electrodes to the N, F, R, L lead and chest electrodes to C1, C2, C3, C4, C5, C6 of the patient cable. Recording paper installation Printer door open if printer release button at the side of EKG 2000 is pushed in the right.

  • Page 23: Menu Structure

    CardioCare2000 Operation Manual 5) Menu structure EKG2000 system provides 3 basic modes with preparation mode, output mode, and menu mode. Preparation mode is an initial condition when system starts operating. LCD displays system settings and heart rate. In preparation mode, system setting can be changed by pressing each short keys SENS, SPD, BASE, MUSC, FORM, LEAD, PAT, MON, REC, COPY of the control panel.

  • Page 24: System Setting

    CardioCare2000 Operation Manual 6) System Setting Initial setting Press 1key of the control panel for 3 seconds to initialize the system at the factory preset. After 3 seconds, following window message appears on the LCD for 1sec and system sets to initialize. * FACTORY MODE * initialize Initialized details are as follows;...

  • Page 25: Date And Time

    CardioCare2000 Operation Manual Date and time To set the present date of EKG2000, move the menu to * DATE SETUP * as following steps; PAT FLT PRN SYS < SYStem setup > SYS select -- DATE TIME HOSP >> 2000-03-01 DATE Select -- * DATE SETUP * 2000-03-01...

  • Page 26: User Identification

    CardioCare2000 Operation Manual User identification User identification is to enter the hospital name and doctor name that operates the system. To enter the hospital name, move the menu to * ENTER HOSP. * as following steps. PAT FLT PRN SYS <...

  • Page 27: Language

    CardioCare2000 Operation Manual Language To set a language for CARDIOCARE-2000, press and hold the ◁ key and turn the power on. You will then be redirected to the “Language” menu. In the ‘Language’ menu, press a number key (1 through 7) to select a desired language (1: English; 2: Chinese; 3: German; 4: French;...

  • Page 28: Chapter 2. Preparation For Ecgs Recording

    CardioCare2000 Operation Manual Chapter 2. Preparation for ECGs recording 1) Electrode positions 2) Electrode Connection Check before connection Connecting the Electrodes Connecting the patient cable Lead-off troubleshooting 28 / 61 Ver. 2.41...

  • Page 29: Electrode Positions

    CardioCare2000 Operation Manual 1) Electrode positions To record the 12 standard leads ECGs [ I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6 ] , connect the electrodes to the patient as follows ; Electrode positions for limb leads are as follows; N(RL) = Right leg F(LL) = Left leg R(RA) = Right arm...

  • Page 30: Electrode Connection

    ECG gel to the electrodes and reapply it to the patient.. In exceptional circumstances if you are still troubled with poor EKG signal after troubleshooting as described above, it can be a problem with the patient cable. Contact Service Center of Bionet Co.,Ltd..

  • Page 31: Chapter 3. Recording Of Ecgs

    CardioCare2000 Operation Manual Chapter 3. Recording of ECGs 1) Introduction 2) Basic Setting General Information Signal Level Setting Signal Display Setting Filter Setting Channel Form Setting Rhythm Lead Setting Grid Setting Monitoring Form Setting Monitoring Channel Setting Diagnosis on/off setting Enter patient data 3) Monitor Mode Output Output Method...

  • Page 32: Introduction

    CardioCare2000 Operation Manual 1) Introduction 1. Turn the power switch on after connecting leads to the patient according to preparation for ECGs recording of Chap2. 2. Set the filter, signal level, display speed, channel form, rhythm lead according to “Basic Setting”...

  • Page 33: Basic Setting

    CardioCare2000 Operation Manual 2) Basic setting General information LCD displays current system setting in the order of signal level, printing speed, base line filter ,EMG filter, heart rate, channel form, rhythm channel when system is turned on . These settings can be changed by two kinds of methods. First method is to use short keys. System setting can be easily changed by pressing short keys of control panel that accord with the icons displayed on the LCD screen.

  • Page 34: Filter Setting

    CardioCare2000 Operation Manual Filter Setting AC power noise, base line drift caused by breathing , EMG signal can be recorded along with the output ECG signal. To set the AC noise filter, move to “FLT” menu to call up “AC” menu and press key.

  • Page 35: Channel Form Setting

    CardioCare2000 Operation Manual Channel form setting Channel form setting is to adjust the numbers of channel of output form. This system provides four kinds of channel form of 3ch+1rhy, 6ch+1rhy, 12ch rhy, 60s 1rhy. As for 3ch+1rhy, 10 seconds of ECG data are recorded in four consecutive segments of 2.5 seconds such as I, II, III for first 2.5 seconds time segment, aVR, aVL, aVF for second 2.5 seconds time segment, V1,V2, V3 for third 2.5 seconds time segment, V4, V5, V6 for last 2.5 seconds segment.

  • Page 36: Grid Setting

    Grid is marked with solid line of 5mm X 5mm and with dot of 1mm X 1mm position. In case of using standard ECG recording paper supplied from Bionet Co.,Ltd instead of using fax sheet, grid setting should be off because grid is already marked on recording paper.

  • Page 37: Monitoring Form Setting

    CardioCare2000 Operation Manual Monitoring form setting You can set up the real time printing size. To set the monitoring form, moves the menu to * MONI * as following steps. PAT FLT PRN SYS < PRiNter setup > FORM LEAD MONI CONTINUE key switches continue or A4 report.

  • Page 38: Monitoring Channel Setting

    CardioCare2000 Operation Manual Monitoring channel setting Monitoring channel setting is to adjust the numbers of channel of monitoring form. This system provides four kinds of channel form of 3ch, 6ch, 12ch. To set the monitoring channel, moves the menu to * M-CH * as following steps. PAT FLT PRN SYS <...

  • Page 39: Diagnosis On/Off Setting

    CardioCare2000 Operation Manual Diagnosis on/off setting When you print out the diagnosis report, you can choose the result of diagnosis is printed out or not on the report. To set the diagnosis, moves the menu to * DIAG * as following steps. PAT FLT PRN SYS <...

  • Page 40: Enter Patient Data

    CardioCare2000 Operation Manual Enter Patient Data Patient information including patient ID, name, age, sex, height, weight can be entered. There are two methods to enter patient data. First, move the menu to patient data menu by pressing key. Second, move the menu to “ID” as following steps. PAT FLT PRN SYS <...
  • Page 41 CardioCare2000 Operation Manual All the other patient data are deleted with selecting yes and then move the menu to “ENTER ID” for new patient data entry. Previous patient data are displayed on the LCD as follows with selecting no; New Patient? Select No ID NAME AGE >>...
  • Page 42 CardioCare2000 Operation Manual Patient ID can be entered in up to 15 characters. ID number is entered by pressing 0,…, 9 numeric key in the current cursor position. Wrongly typed number can be deleted with ◁ key. Use ▷ key to enter ‘–‘. ID entry can be combined with numbers of 123-456-789 and ‘-’.
  • Page 43 CardioCare2000 Operation Manual To enter age, move the menu to “ENTER AGE” as following step ; PAT FLT PRN SYS < PATient info. > PAT 선택 ID NAME AGE > > Select Age * Enter Age* years Age can be entered in up to 3 figures. Age is entered by the unit of year. Age is entered with pressing 0,…, 9 numeric key in the current cursor position and cursor automatically moves to the right.
  • Page 44 CardioCare2000 Operation Manual To enter sex, move the menu to “ENTER SEX” as following steps ; PAT FLT PRN SYS < PATient info. > Select PAT << SEX HEI WEI Select SEX * Enter Sex * male female Sex can be selected between male and female with ◁▷ key. To exit sex press key or ESC key that moves to the menu above.
  • Page 45 CardioCare2000 Operation Manual To enter weight, move the menu to “ENTER WEIGHT” as following steps ; PAT FLT PRN SYS < PATient info. > Select PAT << SEX HEI WEI Select WEI * Enter Weight * Weight can be entered in up to 3 figures. Weight is entered by the unit of kg. Weight is entered with pressing 0,…, 9 numeric key in the current cursor position and cursor automatically moves to the right.

  • Page 46: Monitor Mode Output

    CardioCare2000 Operation Manual 3) Monitor mode output In monitor mode output, the measured ECGs is displayed in real-time. This output function can be used for the purpose of checking out that the entire channel signal is active before recording ECGs and monitoring ECGs of the patient for long time. In this monitor mode, filter setting is fixed as follows ;...

  • Page 47: Record Mode Output

    CardioCare2000 Operation Manual 4) Record mode output In record mode output, ECGs is recorded on the memory first and displayed according to the selected signal level, output display speed, channel form after applying the selected filter and calculating the measurement parameter including heart rate, PR interval, QRS duration, QT/QTc, P-R-T axes of the recorded ECGs.

  • Page 48: Seconds Ecg Recording

    CardioCare2000 Operation Manual 60 seconds ECG recording Press key when channel form is set to 60s 1rhy. Then, the system starts recording data on the selected rhythm channel for 60 seconds on the memory with the following message indicates recording time on the LCD. * RECORD(10s) * 60 sec After recording data for 60 seconds, the system starts applying the selected filter and calculates...

  • Page 49: Output Form

    CardioCare2000 Operation Manual Output form The printing forms are described and the example of printing form by each channel form is provided below. RHYTHM REPORT FORM 49 / 61 Ver. 2.41...
  • Page 50 CardioCare2000 Operation Manual RECORD REPORT FORM( 3ch+1rhy ) 50 / 61 Ver. 2.41...
  • Page 51 CardioCare2000 Operation Manual RECORD REPORT FORM( 6ch+1rhy ) 51 / 61 Ver. 2.41...
  • Page 52 CardioCare2000 Operation Manual RECORD REPORT FORM( 12ch rhy ) 52 / 61 Ver. 2.41...
  • Page 53 CardioCare2000 Operation Manual RECORD REPORT FORM( 60s 1rhy ) Output form These are the explanation of the output form and examples according to each channel form. 53 / 61 Ver. 2.41...

  • Page 54: Copy Mode Output

    CardioCare2000 Operation Manual 5) Copy mode output Copy mode output function is to print the same report as previously printed one or print after changing setting such as filter, signal level, output display speed, channel form, rhythm cannel of previously recorded ECG data . System starts printing the same report as previously printed one with the following message on the LCD by pressing key after record mode printing.
  • Page 55 CardioCare2000 Operation Manual Warning When a defibrillator is used, do not touch the patient, table, or apparatus. Warning When you are connecting to the electrodes or the patient cable, make sure that the connectors never come into contact with other conductive parts, or with earth. In particular, make sure that all of the ECG electrodes are attached to the patient, to prevent them from contacting conductive parts or earth.

  • Page 56: Chapter 4. System Control

    CardioCare2000 Operation Manual Chapter 4. System control 1) Maintenance and Cleaning 2) Regular Inspection 3) Troubleshooting 56 / 61 Ver. 2.41...

  • Page 57: Maintenance And Cleaning

    CardioCare2000 Operation Manual 1) Maintenance and Cleaning EKG 2000 can be kept clean and maintained in a various method. Avoid damage or disinfection of the unit as recommended follow. The warranty does not cover the damage resulting from using materials (unauthorized material) which may cause damage of the product even during the warranty period.

  • Page 58: Regular Inspection

    2) Regular Inspection In common with all medical equipment, it is recommended that a safety check of EKG2000 should be carried out once a year. Refer to Service manual offered by Bionet Co., Ltd. on the extent of the check.

  • Page 59: Chapter 5. Specification

    CardioCare2000 Operation Manual Chapter 5. Specification TECHNICAL DATA Input circuit : Isolated and defibrillation protected ECG leads : Standard 12 leads Sensitivity selection : 5,10,20 mm/mV  5 % Calibration voltage : 1mV  2 % Electrode offset tolerance :   250mV Resolution : 2 V, 500 Sample/Sec Frequency response: 0.05 ~ 150Hz Common mode rejection : >...
  • Page 60 CardioCare2000 Operation Manual Warranty Product Name Electrocardiograph Model Name CardioCare-2000 Approval No. Approval Date Serial No. One year from date of purchase Warranty period (Two years in Europe) Date of purchase Customer Hospital : Address : Name : Tel : Sales Agency Manufacturer ※...
  • Page 61 CardioCare2000 Operation Manual International Sales & service Bionet Co., Ltd. : #1101 11F E&C Venture Dream Tower3, 38-21, Digital-Ro, 31-Gil, Guro-Gu, Seoul, 08376, REPUBLIC OF KOREA Tel : +82-2-6300-6418 / Fax : +82-2-6300-6454 / e-mail: sales@ebionet.com Website: www.ebionet.com U.S.A sales & service representative Bionet America, Inc.
