Comeup BMC-250 Manual

Introduction
 Feature
250 kg
Lifting capacity:
Lifting height: 3 m
Line speed: 13.1 m/min
Brushless DC motor
500w x 6.6A at 200-240V
output:
Dual brakes of double mechanical ratchet pawls and
Brake:
a motor dynamic brake
Control:
Pendant switch powers the hoist
 Unpacking
．Hoist assembly
．Load chain 6.3 mm x 3.5 m w/hook tackle
2
．Power lead 1.5 mm x 3C x 3m w/3 round pins plug
．Pendant switch PB-418 w/cord 0.5 mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless hoist operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Hoist PN ．Quantity for each part
．Serial number ．Replacement part
Installation
Before using the hoist, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
Material Handling Hoist
BMC-250
Model:
PN:445411 200~240V
1pc
1pc
1pc
2
x 7C x 3m
1pc
．Part description
 Load Chain Replacement
1). Be sure that the replacement chain is the exact size, grade and
constructions as the original chain. The new load chain must have an odd
number links so that both its end links have the same orientation. Destroy
the old chain to prevent its reuse.
2). When replacing load chain, check for wear on mating parts such as
sprocket , and replace parts if necessary.
3). Remove all chain components including load hook kit from the old chain
for reuse on new chain. Inspect and replace any damaged or worm parts.
4). Using a C-link to attach the new chain to the old end link on the no-load
side. The new end link should be connected so the welded portion to pass
over the sprocket.
5). Operate the hoist down to move the chain through the hoist body. Stop
when a sufficient amount of new chain is accumulated on the load side.

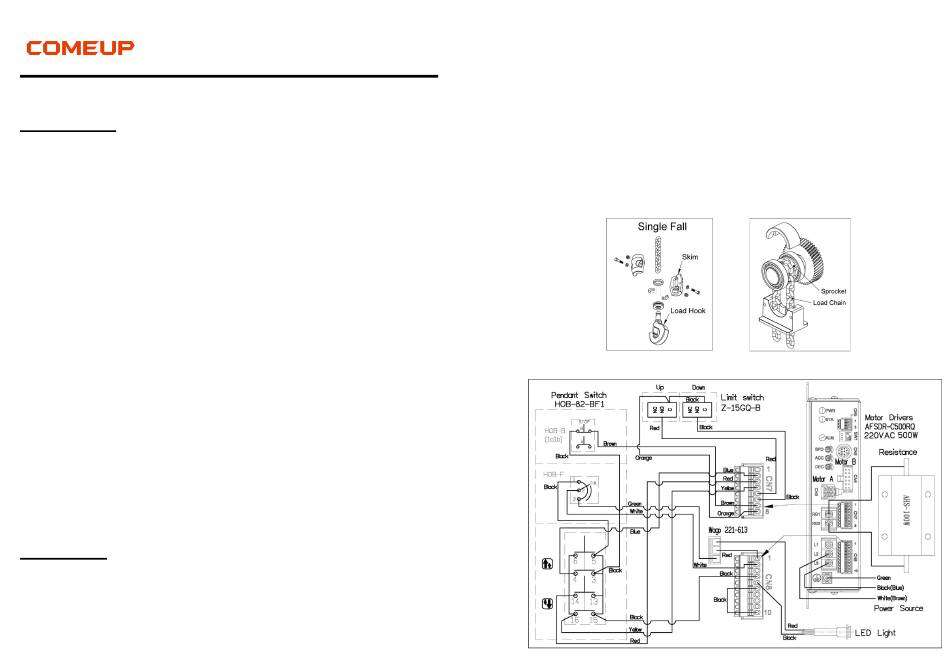

 Wiring Diagram
