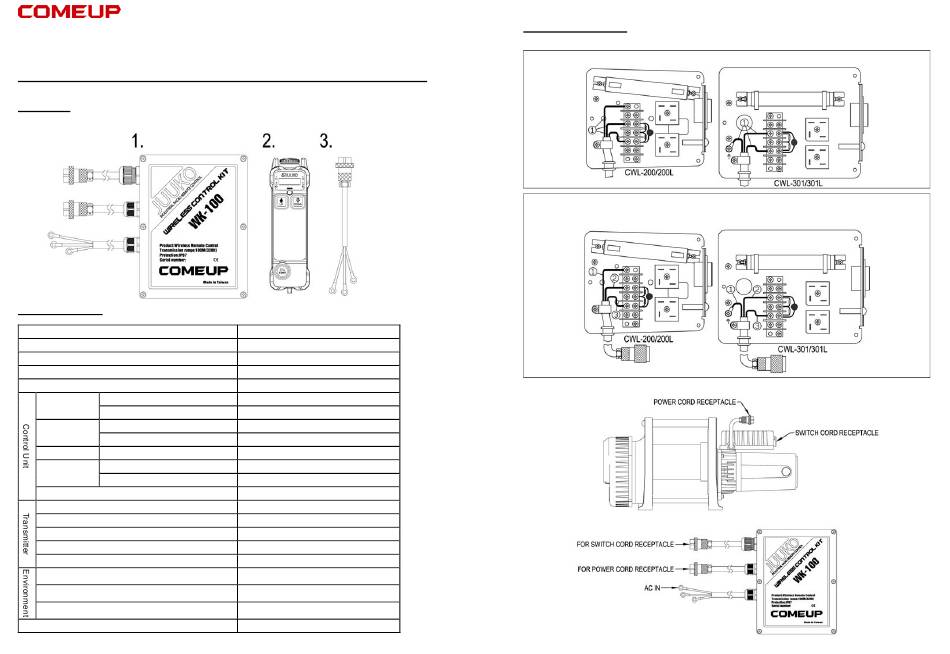

WK-100L
INSTALLATION INSTRUCTION
Wireless Control Kit For COMEUP CWL-200/200L/301/301L Winch
Includes:
1.Wireless Receiver
2.Wireless Transmitter.883844

Specifications:

Control module
Frequency band
Typical operating range
Applicable current
Function
Current range
Power Input
Power cord for main power source
Power cord for winch
Power Output
Control cord
contactors
Number
Power supply
Receiver
Function
Protection degree
Power supply
Button
Power consumption
Battery
Protection degree
Operating temperature
Storage temperature
Humidity
Complied with RED directive
AC110V PN:884018
AC220V PN:884019
AC240V PN:884020
3.Power cord receptacle.884021
Indirect control +Wireless Control
433MHz
100 M (328 ft)
AC 110V 15A / 220V 7.5A / 240V 7.5A
Go up / Go down / Emergency stop
110V OR 220V OR 240V
2.0 mm × 3C ×1.5M
2.0 mm × 3C/3P quick connector
2.0 mm × 6C/6P quick connector
3 sets
AC 110V / 220V / 240V
Go up / Go down / built-in buzzer
IP67
DC3V
Emergency stop switch, Power on switch
16mA
LR6(AA)1.5V*2
IP65
-25°C ~ + 55°C
-40°C ~ + 65°C
90%RH
2014/53/EU
1

Installation Guide:

1.Change power lead

a. Use a Philip screw driver to remove 3 wirings on the control panel accordingly.
b. Use a Philip screw driver to fasten all the 3 wirings of power cord receptacle (NO.3)
accordingly with 1. Green wire (Ground wire), 2.Black wire and 3.White wire.

2.Wiring

2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WK-100L and is the answer not in the manual?

Questions and answers

Summary of Contents for Comeup WK-100L

  • Page 1 AC110V PN:884018 a. Use a Philip screw driver to remove 3 wirings on the control panel accordingly. AC220V PN:884019 INSTALLATION INSTRUCTION AC240V PN:884020 Wireless Control Kit For COMEUP CWL-200/200L/301/301L Winch Includes: 1.Wireless Receiver 2.Wireless Transmitter.883844 3.Power cord receptacle.884021 b. Use a Philip screw driver to fasten all the 3 wirings of power cord receptacle (NO.3) accordingly with 1.
  • Page 2 Operation: 4.Troubleshooting Transmitter 1. Install and replace battery Remove 3 battery cap and replace batteries (1.5V,LR6 AA×2) into transmitter. Start a. Turn to release the 1 emergency button. b. Press 2 Start button. Receiver Should an error occur, LED of the receiver unit will indicate the cause of the error. ※...
