Comeup BMC-1000 Quick Start Manual

Introduction

 Feature
1000 kg
Lifting capacity:
Lifting height: 3 m
Line speed: 3.2 m/min
Brushless DC motor
500w x 6.6A at 200-240V
output:
Dual brakes of double mechanical ratchet pawls and
Brake:
a motor dynamic brake
Control:
Pendant switch powers the hoist
 Unpacking
．Hoist assembly
．Load chain 6.3 mm x 6.5 m w/hook tackle
．Power lead 2.0 mm 2 x 3C x 3m w/2 flat pins plug for PN:441405
．Power lead 1.5 mm 2 x 3C x 3m w/3 round pins plug for PN:441411 1pc
．Pendant switch PB-418 w/cord 0.5 mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless hoist operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Hoist PN ．Quantity for each part
．Serial number ．Replacement part

Installation

Before using the hoist, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
Material Handling Hoist
BMC-1000
Model:
PN:441405 200~240V
441411 200~240V
1pc
1pc
1pc
2
x 7C x 3m
1pc
．Part description

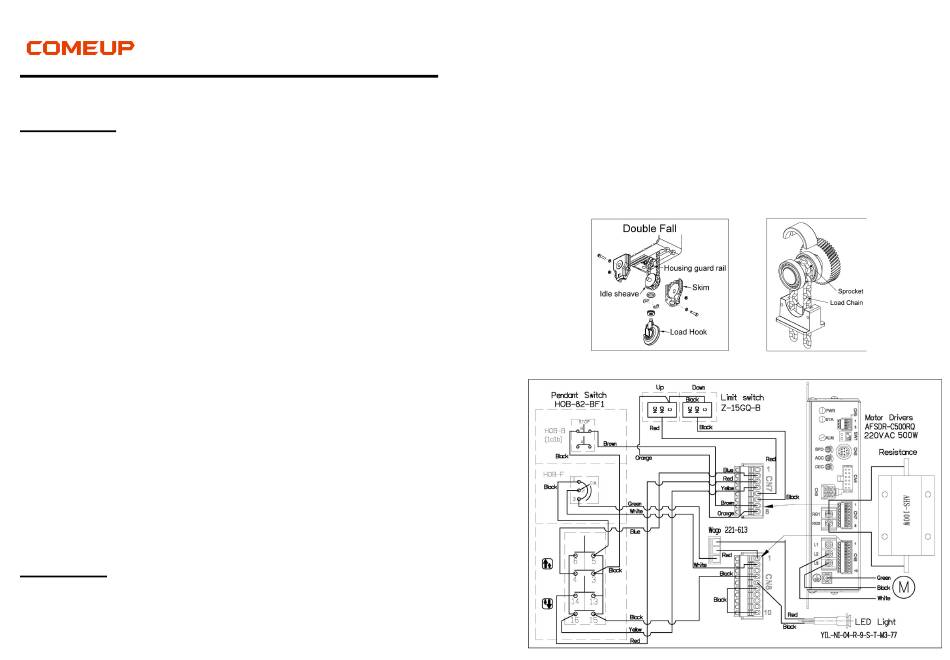

 Load Chain Replacement
1). Be sure that the replacement chain is the exact size, grade and
constructions as the original chain. The new load chain must have an odd
number links so that both its end links have the same orientation. Destroy
the old chain to prevent its reuse.
2). When replacing load chain, check for wear on mating parts such as
sprocket , and replace parts if necessary.
3). Remove all chain components including load hook kit from the old chain
for reuse on new chain. Inspect and replace any damaged or worm parts.
4). Feed the end link on the load side of the new chain through the require
chain components and idle sheave of load hook. Attach the remaining
chain components to the chain guide rail for the proper locations.
5). Operate the hoist down to move the chain through the hoist body. Stop
when a sufficient amount of new chain is accumulated on the load side.
 Wiring Diagram
