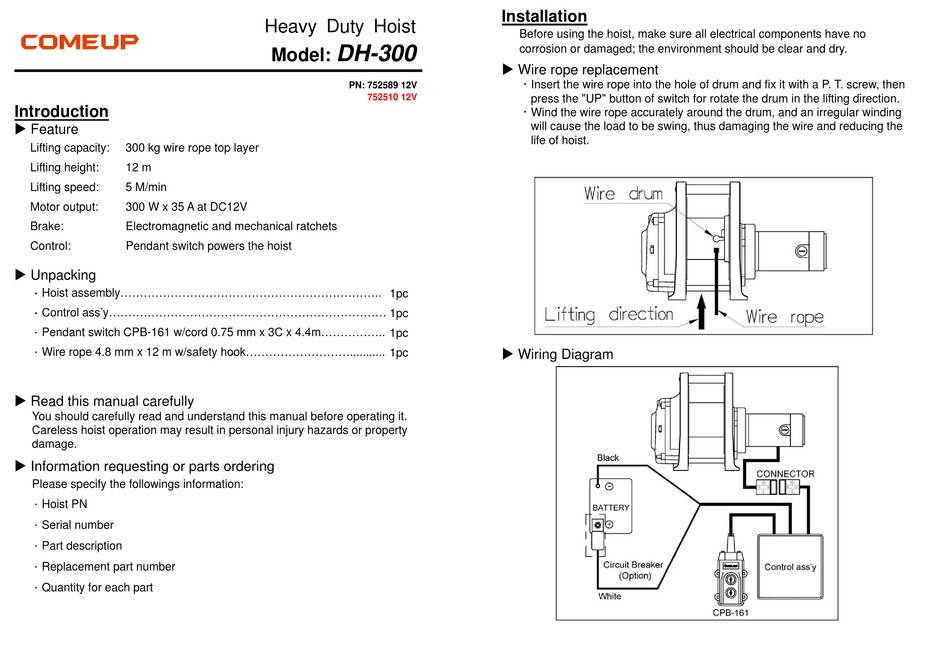

Comeup DH Series Quick Start Manual

Introduction

 Feature
Lifting capacity: 300 kg wire rope top layer
Lifting height: 12 m
Lifting speed: 5 M/min
Motor output: 300 W x 35 A at DC12V
Brake: Electromagnetic and mechanical ratchets
Control: Pendant switch powers the hoist
 Unpacking
．Hoist assembly.................................................................... 1pc
．Control ass'y........................................................................ 1pc
．Pendant switch CPB-161 w/cord 0.75 mm x 3C x 4.4m................. 1pc
．Wire rope 4.8 mm x 12 m w/safety hook...................................... 1pc
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless hoist operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Hoist PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part
Heavy Duty Hoist
DH-300
Model:
PN: 752589 12V
752510 12V

Installation

Before using the hoist, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Wire rope replacement
． Insert the wire rope into the hole of drum and fix it with a P. T. screw, then
press the "UP" button of switch for rotate the drum in the lifting direction.
． Wind the wire rope accurately around the drum, and an irregular winding
will cause the load to be swing, thus damaging the wire and reducing the
life of hoist.
 Wiring Diagram
