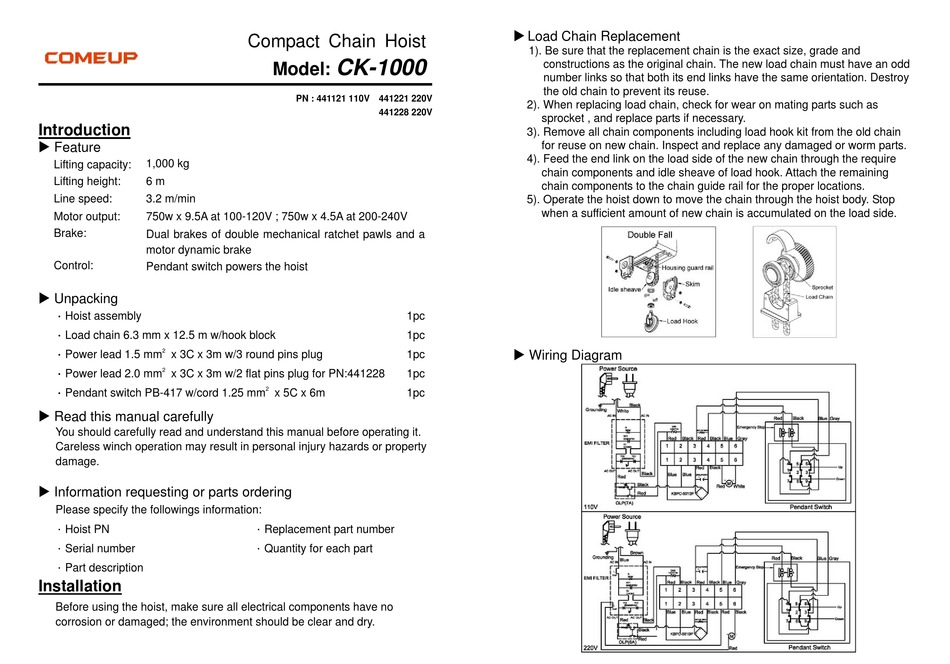

Comeup CK-1000 Quick Start Manual

Introduction

 Feature
1,000 kg
Lifting capacity:
Lifting height: 6 m
Line speed: 3.2 m/min
Motor output: 750w x 9.5A at 100-120V ; 750w x 4.5A at 200-240V
Brake:
Dual brakes of double mechanical ratchet pawls and a
motor dynamic brake
Control:
Pendant switch powers the hoist
 Unpacking
．Hoist assembly
．Load chain 6.3 mm x 12.5 m w/hook block
2
．Power lead 1.5 mm
x 3C x 3m w/3 round pins plug
．Power lead 2.0 mm 2
x 3C x 3m w/2 flat pins plug for PN:441228
．Pendant switch PB-417 w/cord 1.25 mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Hoist PN
．Serial number
．Part description

Installation

Before using the hoist, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
Compact Chain Hoist
CK-1000
Model:
PN : 441121 110V 441221 220V
441228 220V
1pc
1pc
1pc
1pc
2
x 5C x 6m 1pc
．Replacement part number
．Quantity for each part
 Load Chain Replacement
1). Be sure that the replacement chain is the exact size, grade and
constructions as the original chain. The new load chain must have an odd
number links so that both its end links have the same orientation. Destroy
the old chain to prevent its reuse.
2). When replacing load chain, check for wear on mating parts such as
sprocket , and replace parts if necessary.
3). Remove all chain components including load hook kit from the old chain
for reuse on new chain. Inspect and replace any damaged or worm parts.
4). Feed the end link on the load side of the new chain through the require
chain components and idle sheave of load hook. Attach the remaining
chain components to the chain guide rail for the proper locations.
5). Operate the hoist down to move the chain through the hoist body. Stop
when a sufficient amount of new chain is accumulated on the load side.
 Wiring Diagram
