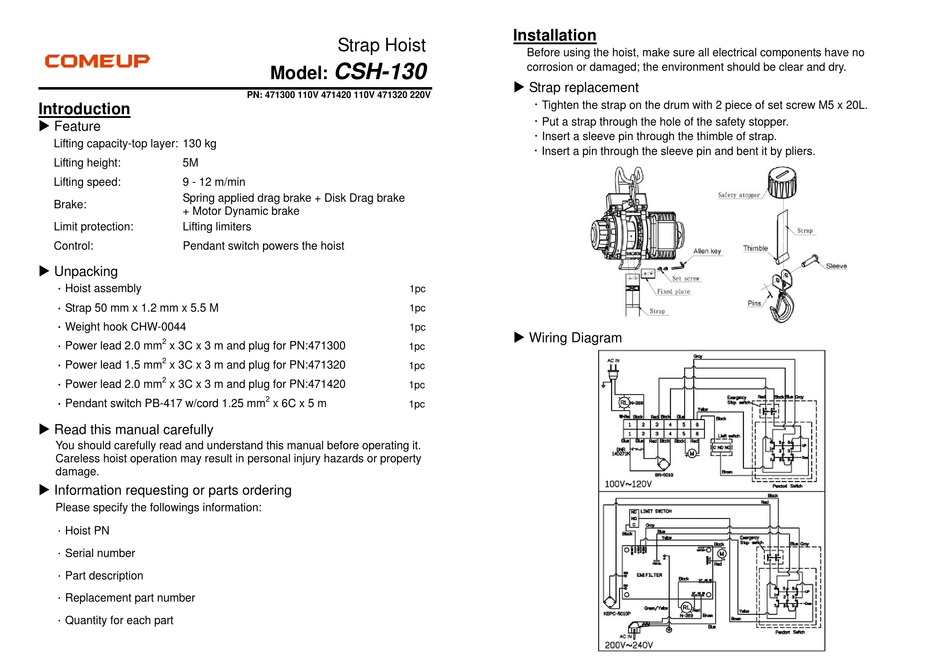

Comeup CSH-130 Manual

Introduction

 Feature
Lifting capacity-top layer: 130 kg
Lifting height: 5M
Lifting speed: 9 - 12 m/min
Spring applied drag brake + Disk Drag brake
Brake:
+ Motor Dynamic brake
Limit protection: Lifting limiters
Control: Pendant switch powers the hoist
 Unpacking
．Hoist assembly
．Strap 50 mm x 1.2 mm x 5.5 M
．Weight hook CHW-0044
2
．Power lead 2.0 mm
x 3C x 3 m and plug for PN:471300
2
．Power lead 1.5 mm
x 3C x 3 m and plug for PN:471320
2
．Power lead 2.0 mm
x 3C x 3 m and plug for PN:471420
．Pendant switch PB-417 w/cord 1.25 mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless hoist operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Hoist PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part
Strap Hoist
CSH-130
Model:
PN: 471300 110V 471420 110V 471320 220V
1pc
1pc
1pc
1pc
1pc
1pc
2
x 6C x 5 m
1pc

Installation

Before using the hoist, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Strap replacement
． Tighten the strap on the drum with 2 piece of set screw M5 x 20L.
． Put a strap through the hole of the safety stopper.
． Insert a sleeve pin through the thimble of strap.
． Insert a pin through the sleeve pin and bent it by pliers.
 Wiring Diagram
