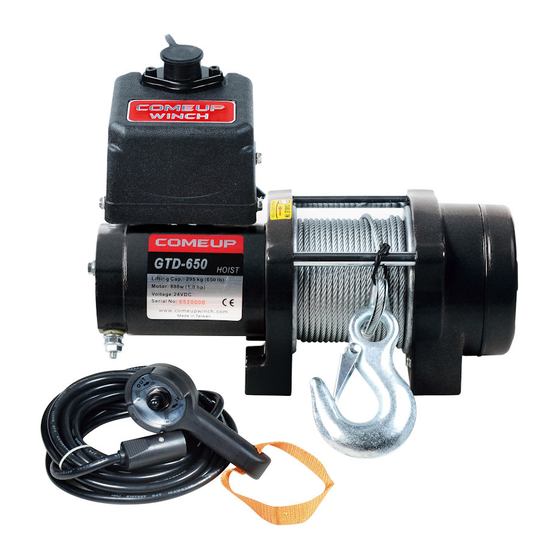

Comeup GTD-650 Manual

Comeup GTD-650 Manual

Heavy duty hoist
Hide thumbs Also See for GTD-650:

Advertisement

Quick Links

Introduction

Feature

Line lifting:
Wire rope:
Brake:
Control:

Unpacking

H oist assembly..................................................................... 1 pc
. . . .
C ontrol box................................................................................ 1 pc
. . . .
R emote control..................................................................... 1 pc
. . . .
W ire rope with hook............................................................... 1 pc
. . . .
Read this manual carefully
Carefully read and understand this manual before operating the winch.
Careless winch operation may result in personal injury, danger to others and or
damage to property
Information requesting or parts ordering
Please specify the following information:
. . . .
H oist PN
. . . .
S erial number
. . . .
Q uantity for each part
295 kg / 650 lb wire rope first layer
3.6 mm × 18.3m galvanized aircraft A7 × 19
Mechanical spring applied and permanent motor
dynamic brakes together
Handheld pendant switch powers the hoist
Heavy Duty Hoist
Model:
. . . .
P art description
. . . .
R eplacement part number
GTD-650
PN: 750265 12V
750280 24V

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTD-650 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Comeup GTD-650

  • Page 1 Heavy Duty Hoist GTD-650 Model: PN: 750265 12V 750280 24V Introduction Feature Line lifting: 295 kg / 650 lb wire rope first layer Wire rope: 3.6 mm × 18.3m galvanized aircraft A7 × 19 Brake: Mechanical spring applied and permanent motor...
  • Page 2 Installation Before using the winch ensure all electrical components are in good condition and all connections are sound. Hoist mounting . . . . F our (4) M8 x 25L 8.8 grade with 22 N-m torque settings (maximum) high tensile steel bolts must be used in order to sustain the loads imposed on the winch mounting Wire Rope Replacement F eed the end of the wire rope through the anchor hole in the drum and make...
  • Page 3 Wiring Diagram Attach the black lead firmly to the negative (–) battery terminal and red lead to the positive (+) battery terminal. The voltage drop for the winch motor must not exceed 10% of the nominal voltage of 12/24vdc. Warning T he operator shall always work in compliance with the operating instructions.
  • Page 4 Parts List Item No. Description Part No. Motor 12V 882417 Motor 24V 882288 Motor couple kit 880988 Drum bushing 880990 Drum kit 882322 Tie bar kit 880992 Tie bar kit 880993 Gearbox support rack 880994 stage carrier 880995 stage carrier 880996 stage carrier 880997...
  • Page 5 Hoist Assembly (GTD650)
