Omron CX-PROGRAMMER V9 - REV 12-2009 Operation Manual page 480

PART 3: CX-Server Runtime
CHAPTER 3 – Communications
Connecting Online Automatically
You can connect the computer and NS-series PT online automatically without making the above settings in the
Change PLC Dialog Box.
CX-Server Runtime_Page 36

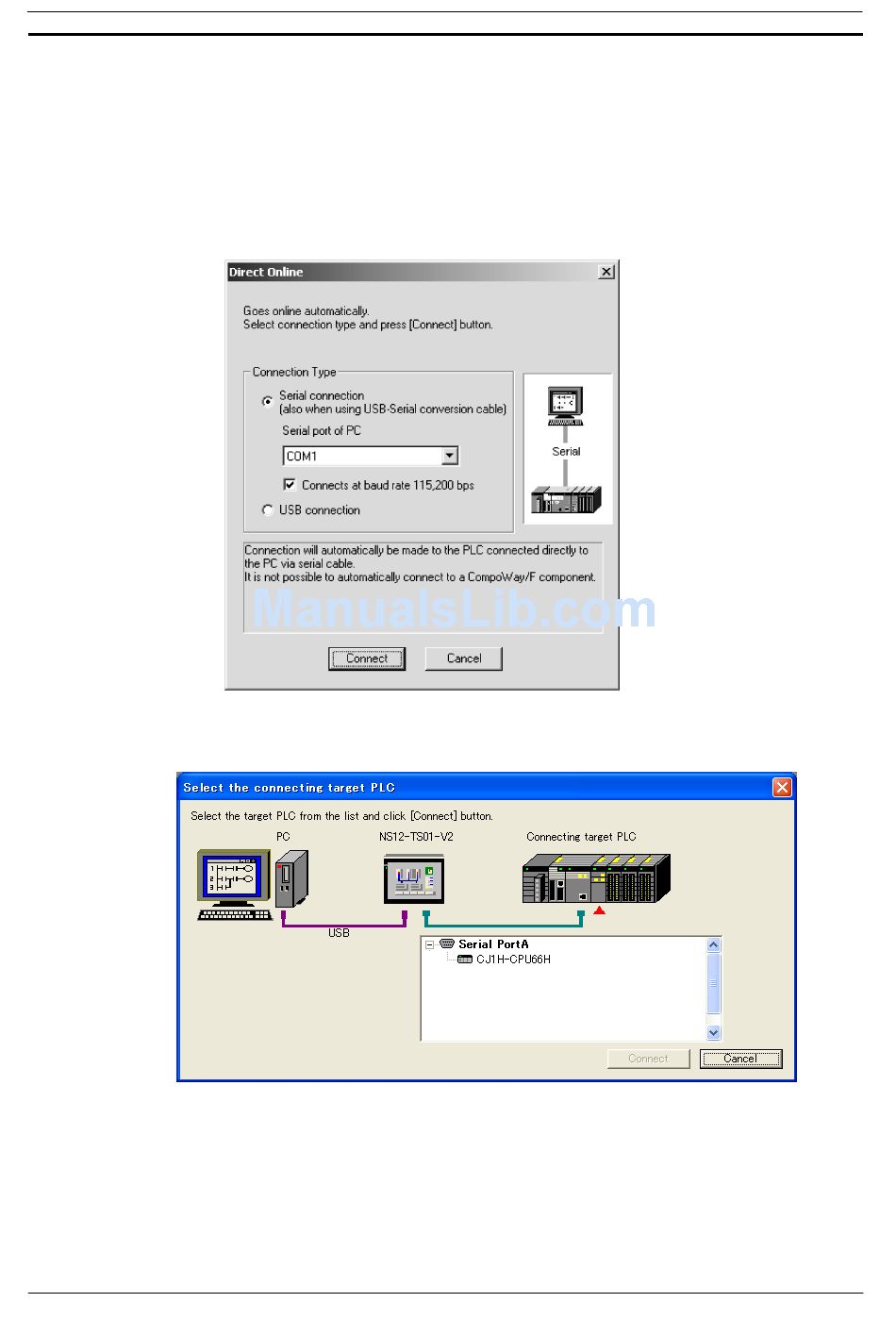

1. Start the CX-Programmer.
Select Auto Online – Direct Online from the PLC Menu.
2. Select the USB Connection Option from the Direct Online Dialog Box, and then click the
Connect Button.
3. The Select the connecting target PLC Dialog Box will be displayed. Select the CPU Unit of
the PLC to connect to from under Serial port A, and then click the Connect Button.
4. An online connection will be made. Download the ladder programs or other data.
OMRON
Revision 2.0
