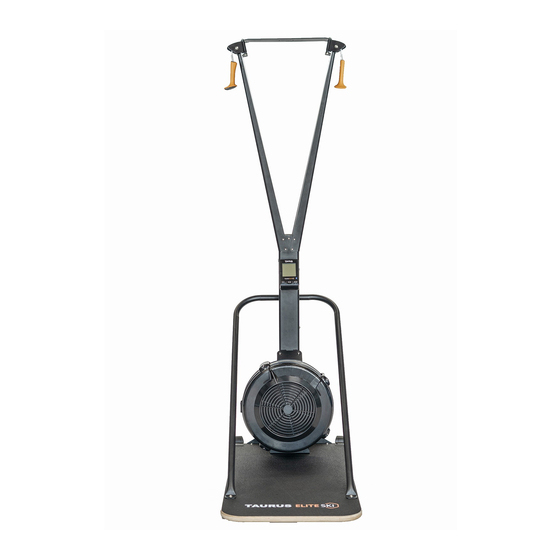

- Page 1 Assembly and Operating Instructions max. 150 kg ~15-30 Min. 49 kg L 127 | W 60 | H 216 CVRM2551.11.14 SKU Code: CVRM2551 Taurus Elite Ski Trainer...
- Page 2 CVRM2551 Elite Ski Trainer CVRM2551 Elite Ski Trainer...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console Display Key Functions Operation Instructions Bluetooth© & Fitness-Apps Usage and Training INSTALL / OPERATE How To Install on the Wall How To Operate the Damper TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis... - Page 4 CVRM2551 Elite Ski Trainer CVRM2551 Elite Ski Trainer...
- Page 5 Germany European VAT Number: DE813211547 Disclaimer ©2011 Taurus® is a registered brand of the company Sport Tiedje GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Sport- Tiedje is prohibited. Product and manual are subject to change. Technical data can be changed without...
- Page 6 This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries! NOTICE This notice indicates further useful information. Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts. CVRM2551 Elite Ski Trainer CVRM2551 Elite Ski Trainer...
-
Page 7: General Information
GENERAL INFORMATION Technical Data LCD display of strokes, strokes per minute training time in min distance in m time/500 m: average / current calorie consumption in kcal heart rate (when using a chest strap) Watt Resistance system: air resistance Total number of training programs: Weight and dimensions: Article weight (gross, including packaging): (Box-A) 38.0 kg... -
Page 8: Personal Safety
Make sure that nobody is within the range of motion of the equipment during training so as not to endanger you or other persons. ATTENTION Do not insert any objects of any kind into the openings of the device. CVRM2551 Elite Ski Trainer CVRM2551 Elite Ski Trainer... -
Page 9: Set-Up Place
Set-Up Place WARNING Do not place the equipment in main corridors or escape routes. CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. Make sure that you leave at least 30 cm on each side of the equipment and at least 15 cm in front of and behind the equipment as a training zone. -
Page 10: Assembly
NOTICE In order to make the assembly as simple as possible, some screws and nuts to be used can already be pre-assembled. Ideally, assemble the equipment at its later set-up place. CVRM2551 Elite Ski Trainer CVRM2551 Elite Ski Trainer... -
Page 11: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION If parts of the scope of delivery are missing or damaged, the assembly must not be carried out. -
Page 12: Assembly
3. Attach the Left vertical Plate (No.3) and Right vertical Plate (No.4) to the Main Frame U Plate (No.1). Tighten with 12pcs Bolt (No.62) and 4pcs Nylon Nut (No.58). #62 M6x12 12PCS #58 M6 4PCS #83 S4 #84 M10 CVRM2551 Elite Ski Trainer CVRM2551 Elite Ski Trainer... - Page 13 Step 2: 1. 2pcs Lock Nut (No.76), 2pcs Lock Washer (#No.77), 2pcs Washer (No.80) and 2pcs Bolt (No.78) is pre locked on the Bottom Board (No.28). Before assembly, remove them. 2. Place 2pcs Lock Nut (No.76) and 2pcs Lock Washer (No.77) in the corresponding hole of Bottom Board (No.28) as shown in the gure.
- Page 14 3. Use 4pcs Bolt (No.78) and 4pcs Washer (No.80) to assemble the Base Plate (No.9) with the Bottom Board (No.28). #78 M6x30 2PCS #78 M6x30 2PCS #80 OD18xID6.5xT1.5 2PCS #80 OD18xID6.5xT1.5 2PCS #77 M8 2PCS #77 M8 2PCS 27xM6x11.2xT1.2 2PCS 27xM6x11.2xT1.2 2PCS #83 S4 #83 S4 CVRM2551 Elite Ski Trainer CVRM2551 Elite Ski Trainer...
- Page 15 Step 5: 1. 2pcs Lock Nut (No.76), 2pcs Lock Washer (No.77), 2pcs Washer (No.80) and 2pcs Bolt (No.78) is pre locked on the Bottom Board (No.28). Before assembly, Remove them. 2. Place 2pcs Lock Nut (No.76) and 2pcs Lock Washer (No.77) in the corresponding hole of Bottom Board (No.28) as shown in the gure.
-
Page 16: Operating Instructions
TOTAL STROKES Display its value according to the cumulative count input. WATT Display its value according to the signal input. PULSE Current user exercise pulse. Setting range: 30 ~ 230 (+1) BPM CVRM2551 Elite Ski Trainer CVRM2551 Elite Ski Trainer... -
Page 17: Key Functions
MANUAL Do Manual Program when RPM signal is detected without entering any PROGRAM mode. INTERVAL 20-10 Interval exercise mode, exercise 20s, rest 10s. INTERVAL 10-20 Interval exercise mode, exercise 10s, rest 20s. INTERVAL CUSTOM Interval exercise mode. The exercise time and rest time will be set by user. -
Page 18: Operation Instructions
3-3 When the exercise is paused or ends, press RESET key to enter into standby mode, if no key is pressed or exercise is completed for 4 minutes, the console will enter into standby mode. (picture 1 Picture 1 Picture 2 CVRM2551 Elite Ski Trainer CVRM2551 Elite Ski Trainer... - Page 19 4. The display screen of VR adjustment: 4-1 For standby mode and exercise mode, press SET key to enter the LEVEL display screen and display the current LEVEL value “LEVEL 01~10” , the LEVEL value will change with VR adjustment (LEVEL 05), press SET key again to exit the LEVEL adjustment screen and return to standby or exercise screen.
- Page 20 6-1-6 The REST function does not enter into the Sleeping mode without pressing any key or a signal input. Picture 6 Picture 7 Picture 8 Picture 9 Picture 10 Picture 11 CVRM2551 Elite Ski Trainer CVRM2551 Elite Ski Trainer...
- Page 21 7-1 Interval 20/10 7-1-1 Pressing SET key to select 20/10 (Picture 12), press MODE key to start 20/10 function, ”READY” 7-1-2 After ”READY” 3s, LCD displays the “WORK 01/08” the TIME will begin to count down 20s (picture 13). All function values will accumulate according to the operation value and switch display every 5s.
- Page 22 7-2-10 The REST function does not enter into the Sleeping mode without pressing any key or a Picture 15 Picture 16 signal input. Picture 17 Picture 18 Picture 19 Picture 20 CVRM2551 Elite Ski Trainer CVRM2551 Elite Ski Trainer...
- Page 23 8. Target: In standby mode, press the MODE and SET keys to select TARGET function. The LCD displays TARGET ashing(picture 21). Pressing MODE keys to enter into TARGET FUNCTION SELECTION. 8-1 Target Time 8-1-1 Toggle the TARGET TIME function (picture 22) and press the MODE key to start the TIME setting function.
- Page 24 8-3-3 When the LCD displays the ”TARGET” and ”CALORIES” it will switch display every 2s (picture 32~ 33). All function values will accumulate according to the operation values and the display will switch every 5s. Picture 30 Picture 31 Picture 32 Picture 33 CVRM2551 Elite Ski Trainer CVRM2551 Elite Ski Trainer...
- Page 25 8-4 Target Strokes 8-4-1 Toggle the TARGET STROKES function until the LCD ashes and displays "TARGET". The STROKES window will ash and display STROKES (picture 34). Press the MODE key to start setting the STROKES function. 8-4-2 When the LCD display keeps ashing with "SET " (picture 35) and 0 ashes in the STROKES window, press the SET key to set target STROKES (the setting range is 0~9990), which can be set circularly.
- Page 26 Picture 47 actual AD value of VR will be displayed in the DISTANCE window (Picture 46). Adjust Damper (Picture 47) to the highest level and press MODE values into 10 segments on average. CVRM2551 Elite Ski Trainer CVRM2551 Elite Ski Trainer...
-
Page 27: Bluetooth© & Fitness-Apps
Bluetooth© & Fitness-Apps This console is equipped with a Bluetooth© interface. To use training apps you will have to connect your equipment with your mobile device (tablet or smart phone). To do this, please activate the Bluetooth© function on your mobile device. Now choose your equipment. Please take note that your mobile device needs to be compatible with the Bluetooth©... -
Page 28: Usage And Training
5. Classic skiing practice (alternating arms): At the beginning, lift one arm up slightly. Use upper arm force to pull down while slowly lifting the lower arm. Then alternate your arms to slightly bend the pulled arms to increase strength. CVRM2551 Elite Ski Trainer CVRM2551 Elite Ski Trainer... -
Page 29: Install / Operate
INSTALL ON THE WALL / OPERATE THE DAMPER ow to install on the wall Step 1: Step 2: Fix Base Plate (No.9) to Main Frame U Plate Fix Strengthening Plate (No.8) to Connecting Plate (No.1) with 2pcs Bolt (No.62). (No.2) with 2pcs Bolt (No.62) and 2pcs Nylon Nut (No.58). -
Page 30: Troubleshooting, Care And Maintenance
Hold Reset to start the console again. Disconnect and connect again all Batteries empty cable connections. LCD error – software Console has no power error etc. Changing batteries supply Contact a service technician of your contract partner. CVRM2551 Elite Ski Trainer CVRM2551 Elite Ski Trainer... -
Page 31: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. Part Weekly Monthly Quarterly Half-yearly Yearly Display console Lubrication of the moving parts Plastic covers Screws and cable connections Legend: C = clean;... -
Page 32: Recommended Accessories
Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you! chest strap chest strap contact gel silicone spray towels CVRM2551 Elite Ski Trainer CVRM2551 Elite Ski Trainer... -
Page 33: Ordering Spare Parts
10 of this operating manual. NOTICE The serial number of your equipment is unique. It's located on a black sticker. Serial number: Brand / Category: Taurus / Ski Trainer Model Name: Taurus Elite Ski Trainer SKU: CVRM2551... -
Page 34: Parts List
42 Long Spacer Sleeve (OD20×ID17×32.5) 87 Expansion Screw (ST5×80) 43 Short Spacer Sleeve (OD20×ID17×24) 88 Expansion Screw (ST5×50) 44 Wave Washer (65mm, OD23×ID17.1×T0.3mm) 89 Washer (OD20×ID8.5×T2.0) 45 6003 Bearing Sleeve (PA, ø40×12.5) 90 Screw (ST3×25) CVRM2551 Elite Ski Trainer CVRM2551 Elite Ski Trainer... -
Page 35: Exploded Drawing
Exploded Drawing... -
Page 36: Warranty
Home use: solely for private use in private households up to 3 hours per day Semi-professional use: up to 6 hours per day (e. g. rehabilitation centres, hotels, clubs, company gyms) Professional use: more than 6 hours per day (e. g. commercial gyms) CVRM2551 Elite Ski Trainer CVRM2551 Elite Ski Trainer... - Page 37 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
-
