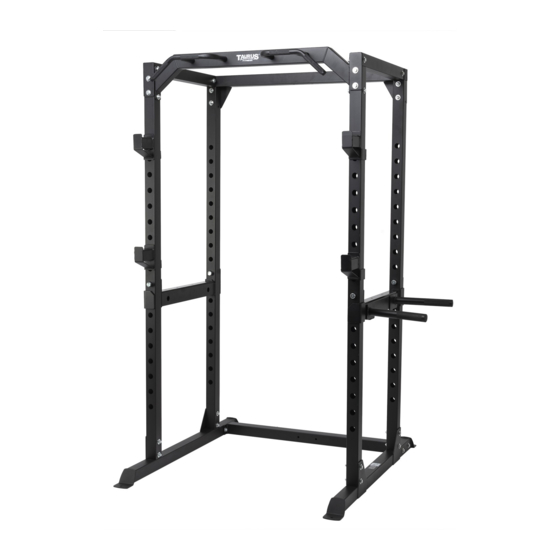

- Page 1 Assembly Instructions max. 150 kg TF-CAGE TF-CAGE-LAT ~ 90-120 Min. 75 kg L 134 | W 119 | H 214 TFCAGE.01.02 TF-CAGE-DIP TF-HOOKS Art. No. TF-CAGE Taurus Power Cage Premium...
- Page 2 Power Cage...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery 2.2.1 Power Cage Premium 2.2.2 Cable Pull for the Power Cage Premium Assembly Assembly Accessories 2.4.1 Assembly: Cable Pull for Power Cage 2.4.2 Assembly: Dip station for the Power Cage Premium 2.4.3 Assembly: Hooks for the Power Cage Premium STORAGE AND TRANSPORT General Instructions... - Page 4 WARRANTY CONTACT Power Cage...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data Power Cage Premium: Article weight (gross, incl. packaging): 80 kg Article weight (net, without packagaing): 74.5 kg Packaging dimensions (L x W x H): Box 1 - 136 cm x 32 cm x 23 cm Box 2 - 199 cm x 15 cm x 14 cm Set-up dimensions (L x W x H) approx.: 134 cm x 119 x 214 cm Maximum user weight:... -
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 11: Power Cage Premium
2.2.1 Power Cage Premium PART LIST NUMBER DESCRIPTION QUANTITY Vertical Frame Left Base Frame Right Base Frame Cross Brace Upper Frame Top Beam Chin Up Bar Left Handle Right Handle Left Safety Catch... - Page 12 Right Safety Catch Left Adjustment Bar Right Adjustment Bar Bolt M10*16 Bolt M12*20 Bolt M10*80 Big Washer 10 Lock Nut M10 Safety Catch Pad Bolt M5*10 Safety Catch Pad Washer 12 Power Cage...
-
Page 13: Cable Pull For The Power Cage Premium
PART LIST 2.2.2 Cable Pull for the Power Cage Premium NUMBER DESCRIPTION QUANTITY Middle Upper Post Weight Base Tube Guide Rod Sliding Weight Post Shiver Bar Lat Bar Bracket Pulley Weight Holder Olympic Spring Clip... - Page 14 Sliding Sleeve Pulley Bushing Hook Chain Bolt M10*50 Bolt M10*75 Bolt M10*80 Square Neck Bolt M10*70 Washer 10 Lock Nut M10 Cable A-3000mm Cable B-3250mm Power Cage...
-
Page 15: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Assembly of the Base Frames Attach the cross brace (4) to the left and right base frames (2 &... - Page 16 Step 2: Assembly of the Vertical Frames Attach the four vertical frames (1) to the left and right base frames (2 & 3) with eight bolts (16), sixteen big washers (17) and eight lock nuts (18). Power Cage...
- Page 17 Step 3: Assembly of the Upper Frame and Top Beams Attach the upper frame (5) to the vertical frame (1) with four bolts (16), eight big washers (17) and four lock nuts (18). Attach the two top beams (6) to the vertical frame (1) with four bolts (16), eight big washers (17) and four lock nuts (18).
- Page 18 Step 4: Assembly of the Chin Up Bar and Handles Attach the left handle and the right handle (8 & 9) to the chin up bar (7) with four bolts (15) and four big washers (17). Attach the chin up bar (7) to the top beam (6) and the vertical frame (1) with four bolts (16), eight big washers (17) and four lock nuts (18).
-
Page 19: Assembly Accessories
Assembly Accessories The following two pieces of equipment are optional accessories for the Darwin Power Cage. The lat pulldown and dip station are not included with the Power Cage and must be purchased separately or are only included if you have purchased the Power Cage Set. Contact your dealer for more information. - Page 20 Step 2: Assembly of the Pulley, Guide Rods and Sliding Weight Post Attach the pulley (8) to the weight base tube (2) with one bolt (15), two washers (19) and one lock nut (20). Attach the guide rod (3) and the sliding weight post (4) to the weight base tube (2) with the sliding sleeves (11) and the two square neck bolts (18).
- Page 21 Step 3: Assembly of the Pulleys and Middle Upper Post Attach the three pulleys (8) to the middle upper post (1) with three bolts (16), six pulley bushings (12), six washers (19) and three lock nuts(20). Attach the middle upper post (1) to the heavy power rack and the guide rod (3) with two bolts (17), two bolts (16), six washers (19) and two lock nuts (20).
- Page 22 Step 4: Assembly of the Cables Pass the cable (21) through a-b-c-d-e, and attach the screw at the end of the cable to the sliding weight post (4). Pass the cable (22) through f-g-h and attach the eyelet end of the cable to the weight base tube (2) with two hooks (13) and the chain (14).
-
Page 23: Assembly: Dip Station For The Power Cage Premium
2.4.2 Assembly: Dip station for the Power Cage Premium Step 1 Step 2 Step 3... -
Page 24: Assembly: Hooks For The Power Cage Premium
2.4.3 Assembly: Hooks for the Power Cage Premium Step 1 Step 2 Step 3 Power Cage... -
Page 25: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 26: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 27: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Cables Screw connections Pulleys and cable routing... -
Page 28: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 29: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / multi gym Model Name: Power Cage Premium Article Number: TF-CAGE / TF-CAGE-LAT / TF-CAGE-DIP / TF-HOOKS... -
Page 30: Parts List: Power Cage Premium
Parts List: Power Cage Premium Name Qty. Vertical Frame Left Base Frame Right Base Frame Cross Brace Upper Frame Top Beam Chin Up Bar Left Handle Right Handle Left Safety Catch Right Safety Catch Left Adjustment Bar Right Adjustment Bar Bolt M10*16 Bolt M10*20 Bolt M10*80... -
Page 31: Exploded Drawing: Power Cage Premium
Exploded Drawing: Power Cage Premium... -
Page 32: Parts List: Cable Pull For Power Cage Premium
Parts List: Cable Pull for Power Cage Premium Name Qty. Specification Middle Upper Post Weight Base Tube Guide Rod Sliding Weight Post Shiver Bar Lat Bar Bracket δ3*212*38 Φ90*27(厚) Pulley Weight Holder Φ25MM "Φ50*Φ4 Olympic Spring Clip " Φ60*Φ25*δ25 Sliding Sleeve Pulley Bushing Φ16*16 Φ7*70... -
Page 33: Exploded Drawing: Cable Pull For Power Cage Premium
Exploded Drawing: Cable Pull for Power Cage Premium... -
Page 34: Parts List: Hooks For Power Cage Premium
Parts List: Hooks for Power Cage Premium Name Qty. Left adjustment bar Right Adjustment bar Safety Catch Pad Bolt M5*10 Exploded Drawing: Hooks for Power Cage Premium Power Cage... - Page 35 WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
- Page 36 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
- Page 37 CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��...
- Page 38 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store www.sport-tiedje.co.uk for home fitness equipment with currently over www.sport-tiedje.de/blog 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 www.facebook.com/SportTiedje web shops in the respective national language or have their desired equpiment assembled on...
