Thor Broadcast H-4SDI-ATSC-IP-LL Quick Setup Manual page 3

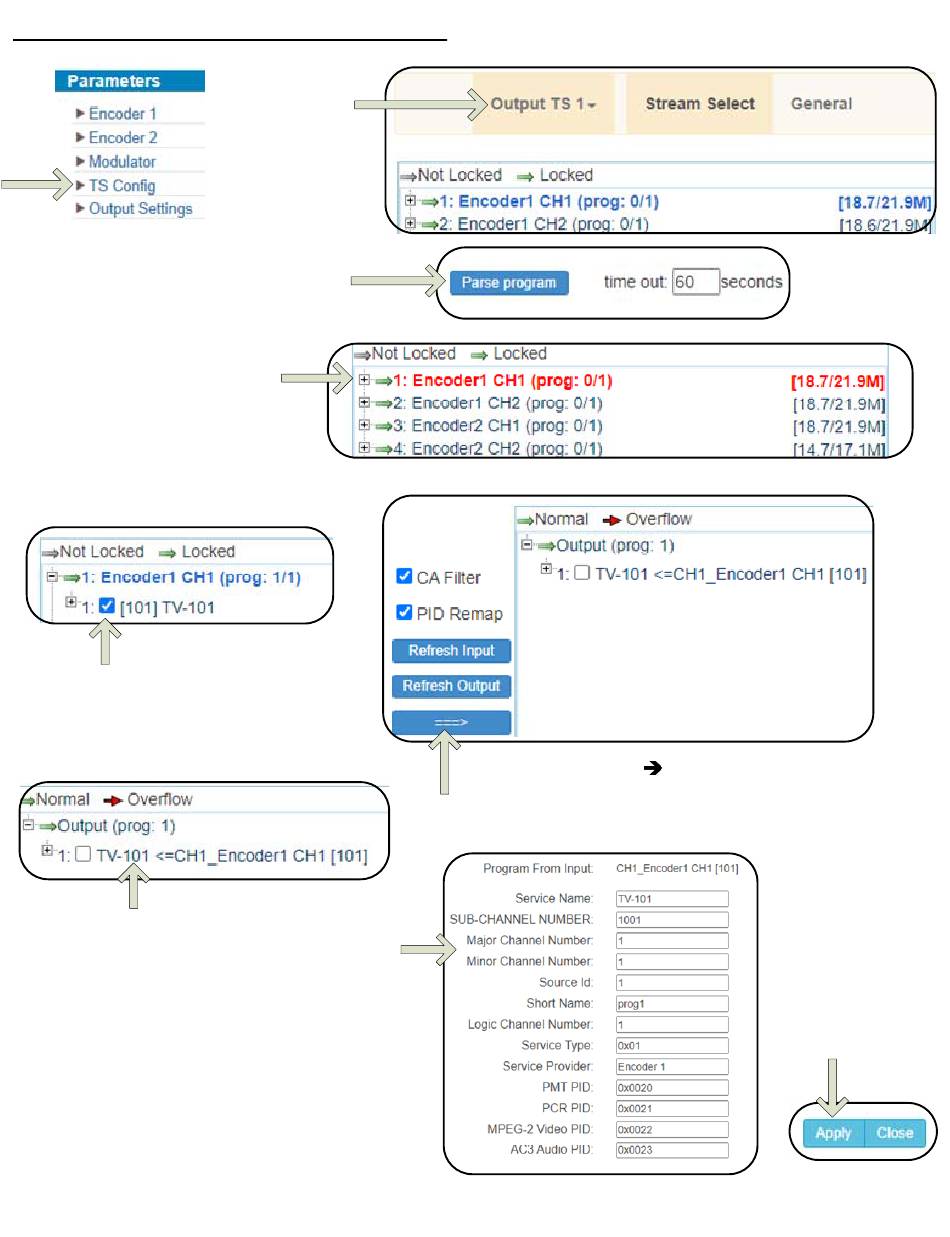

Step 4: SELECT "TS Config" FROM MAIN MENU
2). Discover Inputs:
Click "Parse Program"
3). Click "+" to expand
4). Assign outputs:
Click the checkbox selecting
the discovered TS program
6). Click the name of
the output program
for more options
REPEAT THE ABOVE STEPS AS NEEDED TO CONTINUE ADDING MORE PROGRAMS
1). Select
Output
TS (1-4)
7). OPTIONAL:
You may set the
Major and Minor
channels to your
preference
5). Press the Blue "
selected program from the Input side to the
Output side
" button to move the
Click "Apply" to
save changes
