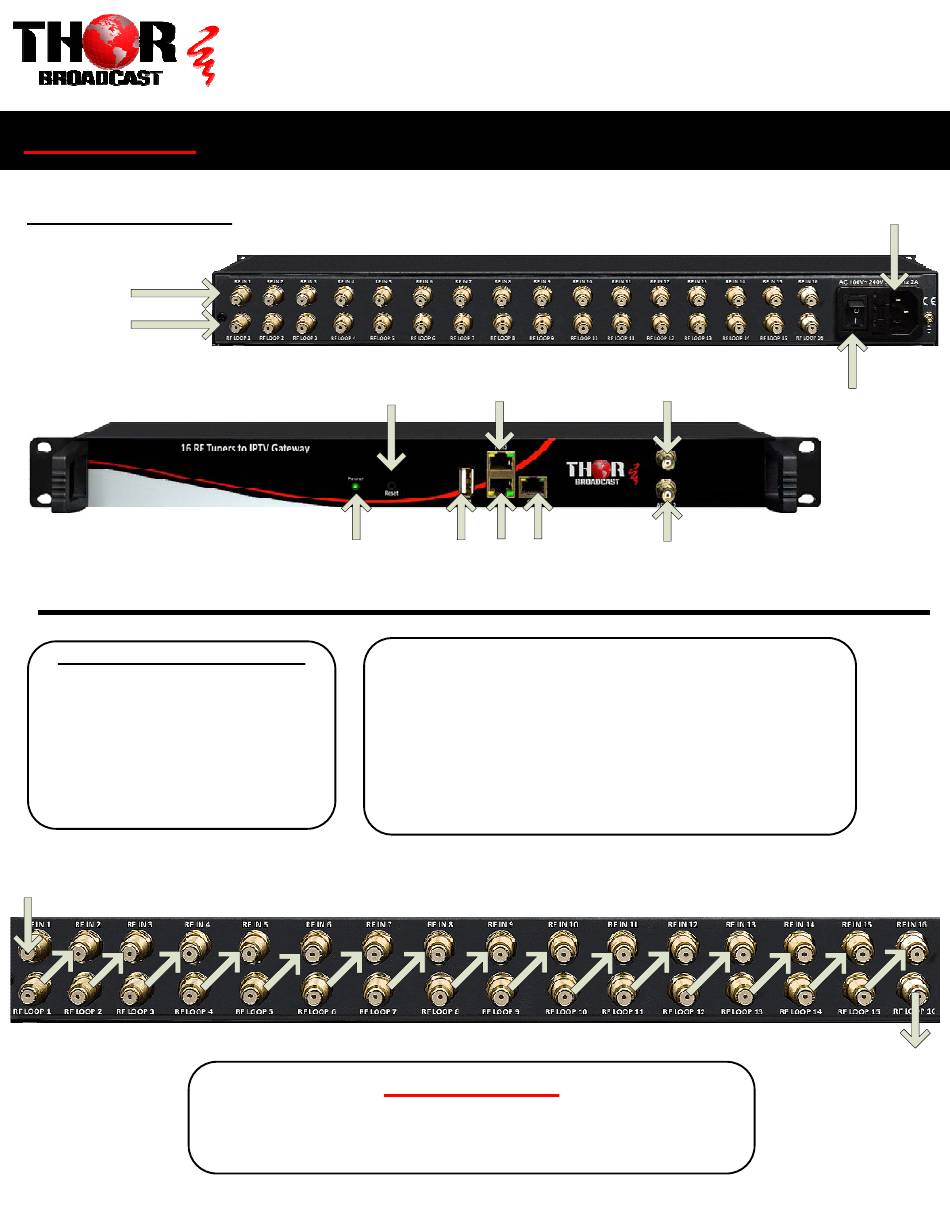

Thor Broadcast H-16ATSC-IP Quick Setup Manual

H-16ATSC-IP
Step 1: CONNECTIONS
TOP ROW:
RF INPUTS
1-16
BOTTOM ROW:
LOOP OUTPUTS
1-16
Using Loop Jumper Cables:
The unit is supplied with a set of 15
Loop Jumper Cables.
Connect the RF LOOP OUT of the
previous channel to the RF IN of
the next channel.
RF SIGNAL IN
https://thorbroadcast.com
RESET
POWER LED
RF LOOP 1 → RF IN 2
RF LOOP 2 → RF IN 3
RF LOOP 3 → RF IN 4
RF LOOP 4 → RF IN 5
RF LOOP 5 → RF IN 6
RF LOOP 6 → RF IN 7
RF LOOP 7 → RF IN 8
RF LOOP 8 → RF IN 9
IMPORTANT:
A small amount of signal loss will occur with each
consecutive loop used. A splitter may be used to create
separate loops in order to reduce this signal loss.
800-521-8467
NMS Port
GE1 GE2
USB
RF LOOP 9 → RF IN 10
RF LOOP 10 → RF IN 11
RF LOOP 11 → RF IN 12
RF LOOP 12 → RF IN 13
RF LOOP 13 → RF IN 14
RF LOOP 14 → RF IN 15
RF LOOP 15 → RF IN 16
sales@thorfiber.com
Quick Setup Guide
Connect the included
power supply
ASI IN 1
Power Switch
ASI IN 2
RF SIGNAL OUT
