Thor Broadcast H-16QAM-IP-RF User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
H-16QAM-IP-RF
Thor Fiber 2018
Tel: (800) 521-8467
Email: sales@thorfiber.com
http://www.thorbroadcast.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-16QAM-IP-RF and is the answer not in the manual?

Questions and answers

Related Manuals for Thor Broadcast H-16QAM-IP-RF

Summary of Contents for Thor Broadcast H-16QAM-IP-RF

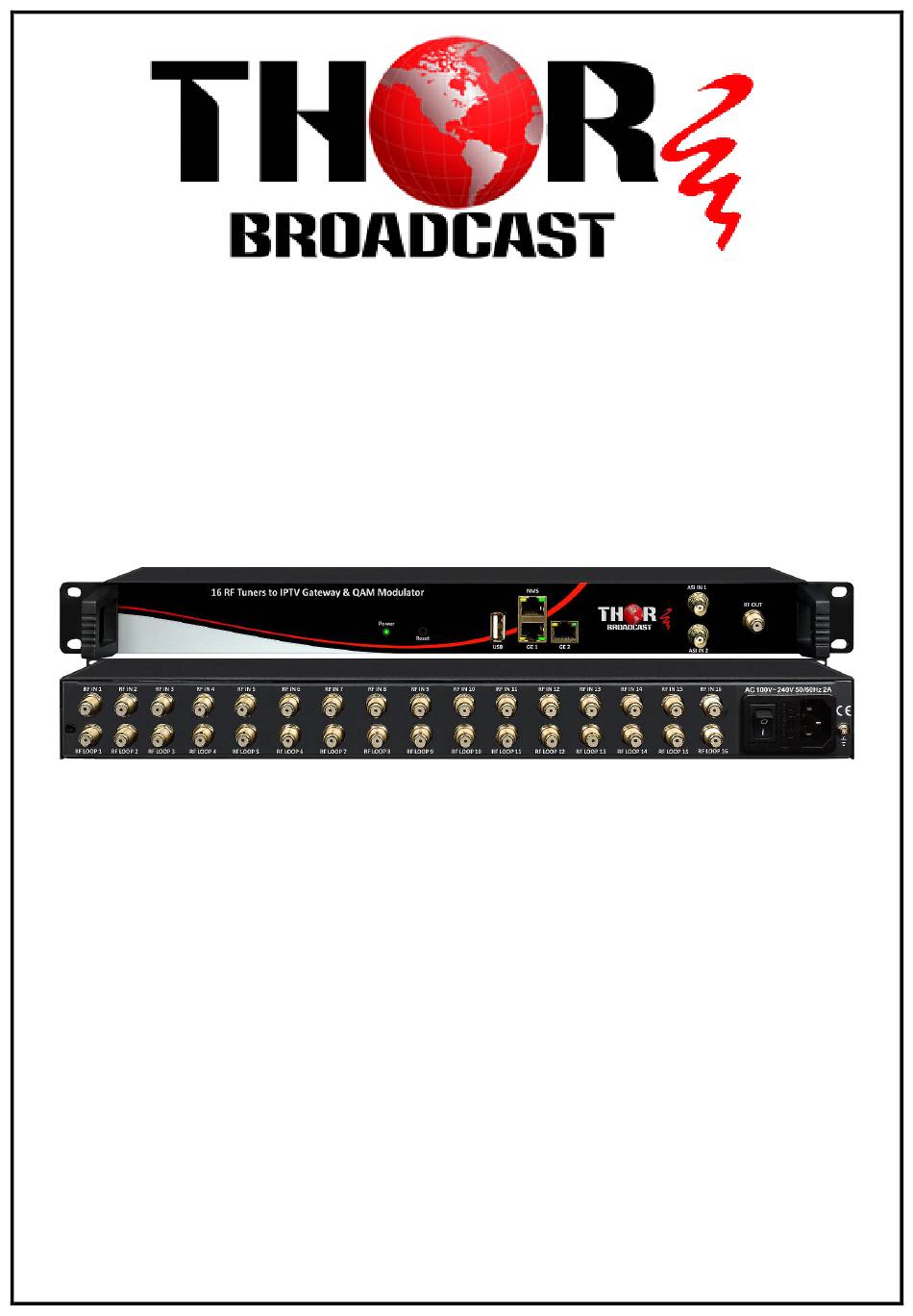

  • Page 1 User Manual H-16QAM-IP-RF Thor Fiber 2018 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
  • Page 2 Disclaimer No part of this document may be reproduced in any form without the written permission of Thor Broadcast. The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. Thor shall have no liability for any error or damage of any kind resulting from the use of this document.

  • Page 3: Table Of Contents

    H-16QAM-IP-RF Table of Contents CHAPTER 1 ............................... 1 1.1O ................................ 1 UTLINE 1.2 F ..............................1 EATURES 1.3 S ................................2 PECS 1.4 F ..............................3 HART 1.5A ........................4 PPEARANCE AND ESCRIPTION CHAPTER 2 - INSTALLATION GUIDE......................5 2.1 G ..........................

  • Page 4: Chapter 1

    Chapter 1 1.1Outline The Thor Broadcast H-16QAM-IP-RF gateway is our new solution in converting tuner based inputs into IP transport streams. This ideal head-end conversion device has massive processing power which lets you intake up to 16 QAM frequencies and convert them to a single Ethernet output.

  • Page 5: Specs

    H-16QAM-IP-RF 1.3 Specs Optional 1:16 QAM tuners input +2 ASI input---SPTS output Optional 2:14 QAM tuners input +2 ASI input --- MPTS output Input Optional 3:16 QAM tuners input --- MPTS output Input Frequency 45-960MHz Tuner Section 512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through...

  • Page 6: Flow Chart

    H-16QAM-IP-RF 1.4 Flow Chart Tuner 1 H-16QAM-IP Tuner 2 Tuner 3 IP Output Port 1,2,3...512 SPTS 1000M Tuner 14 Port Switch IP Output (for Tuner 15 1,2,3...512 SPTS kup) Tuner 16 ASI Input1 ASI Input2 NMS/WEB SPTS output Tuner 1...

  • Page 7: Appearance And Description

    H-16QAM-IP-RF 1.5Appearance and Description Front Panel Illustration: Power Indicator Reset: Reset webmaster IP address, recover to default IP address USB Port for Updates NMS – Network Management Interface Data Ports (1 & 2) – IP Output for SPTS / MPTS ASI input ports (1 &...

  • Page 8: Chapter 2 - Installation Guide

    This section is here to explain the cautions you should adhere to so you don’t hurt yourself or anyone else. That would not be good for anyone; so read through before operating your new Thor Broadcast equipment. 2.1 General Precautions ...

  • Page 9: Environment

    H-16QAM-IP-RF 2.4 Environment Item Requirement When installing unit on rack, the distance between 2 rows of Machine Hall Space machine frames should be 1.2~1.5m and the distance against wall should be no less than 0.8m. Electric Isolation, Dust Free, HVAC , Grounding current...

  • Page 10: Grounding Requirement

    H-16QAM-IP-RF 2.5 Grounding Requirement  It is important to keep this device grounded to ensure all of the modules function correctly. Correctly grounding the device will also help prevent any electrical interference, lightening. Etc. Also it helps reject minor interference that may disrupt the devices ability to function smoothly.

  • Page 11: Chapter 3 - Web Nms

    H-16QAM-IP-RF Chapter 3 – WEB NMS 4.1 Setup the NMS The default IP of this device is 192.168.0.136. We can modify the IP through the front panel. Connect the pc and the device with net cable, and use ping command to confirm they are on the same network segment.

  • Page 12: Status Page

    H-16QAM-IP-RF 4.2.2 Status Page Status When we login, it will display the status interface as shown in Figure-2. Current software version information Click any item here to enter the corresponding interface to check information or set the parameters. Figure-2 Thor Fiber 2018 Tel: (800) 521-8467 Email: sales@thorfiber.com...
  • Page 13 H-16QAM-IP-RF Parameters→Tuner input From the menu on left side of the webpage, click “Tuner Input”, it displays the interface where you can check the 16 Tuner input status. (Figure-3) 16 Tuner input status Figure-3 Thor Fiber 2018 Tel: (800) 521-8467 Email: sales@thorfiber.com...
  • Page 14 H-16QAM-IP-RF Parameters→ASI input From the menu on left side of the webpage, click “ASI Input”, it displays the interface where you can check the 2x ASI input status. (Figure-4) Figure-4 Thor Fiber 2018 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
  • Page 15 H-16QAM-IP-RF Parameters→BISS From the menu on left side of the webpage, click “BISS”, it displays the interface where you can configure BISS and descramble the input channels (Figure-5). Select the output carrier Figure-5 Thor Fiber 2018 Tel: (800) 521-8467 Email: sales@thorfiber.com...
  • Page 16 H-16QAM-IP-RF Parameters→Program Parse From the menu on left side of the webpage, click “Program Parse”, it displays the interface where you can parse the program from the input channels. When you disable the ASI input, the RF to IP Gateway can support 16 Tuner inputs with 16 MPTS IP outputs (Figure-6).
  • Page 17 H-16QAM-IP-RF When you enable the ASI input, the RF to IP Gateway can support 14 Tuner inputs and 2 ASI inputs with 16 MPTS IP outputs (Figure-7). Figure-7 Thor Fiber 2018 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
  • Page 18 H-16QAM-IP-RF Parameters→IP Stream The H-16QAM-IP-RF supports TS to output in IP (16*MPTS) format through the GE1 or GE2 port. Click ‘IP Stream’, it will display the interface where to set IP out parameters (Figure-8). Figure-8 This RF to IP Gateway supports 16 Tuner inputs and 2 ASI input with 512 SPTS output, the parameter interface is different from MPTS.
  • Page 19 H-16QAM-IP-RF Parameters→Tuner Input (SPTS MODE) From the menu on the left side of the webpage, click “Tuner Input”, it displays the interface where you can check the 16 Tuner input status. (Figure-9) 16 Tuner input status Figure-9 Thor Fiber 2018 Tel: (800) 521-8467 Email: sales@thorfiber.com...
  • Page 20 H-16QAM-IP-RF Parameters→ASI Input (SPTS MODE) From the menu on top side of the webpage, click “ASI Input”, it displays the interface where users can check the 2 channels ASI input status. (Figure-10) Figure-10 Thor Fiber 2018 Tel: (800) 521-8467 Email: sales@thorfiber.com...
  • Page 21 H-16QAM-IP-RF Parameters→TS Config (SPTS MODE) Click “TS Config”, it displays the interface where you can set the output TS and configure TS ID and ON ID the four output channel (Figure-11).. Figure-11 Thor Fiber 2018 Tel: (800) 521-8467 Email: sales@thorfiber.com...
  • Page 22 H-16QAM-IP-RF Parameters→BISS: (SPTS MODE) From the menu on left side of the webpage, click “BISS”, it displays the interface where you can configure BISS and descramble the input channels (Figure-12). Figure-12 Thor Fiber 2018 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
  • Page 23 H-16QAM-IP-RF Parameters → SPTS Select: From the menu on left side of the webpage, click “SPTS Select”, it displays the interface where you can choose 16 Tuner inputs and 2 ASI Input programs to output from IP (max 512 SPTS). (Figure-13)
  • Page 24 H-16QAM-IP-RF  Program Modification: The multiplexed program information can be modified by clicking the program in the ‘output’ area. For example, when clicking, it triggers a dialog box (Figure 14) where you can input new information. Figure-14 System → Network: Click ‘Network’, it will display the interface as Figure-15 where to set network parameters.
  • Page 25 H-16QAM-IP-RF System → Date/Time: From the menu on left side of the webpage, click “Date/Time”, it will display the screen as in Figure-16 where to set date and time for the device. Figure-16 System → Password: From the menu on left side of the webpage, click “Password”, it will display the screen as in Figure-17 where to set the login account and password for the web NMS.
  • Page 26 H-16QAM-IP-RF Figure-17 System → Save/Restore: From the menu on left side of the webpage, clicking “Save/Restore”, it will display the screen as Figure-18 where to save or restore your configurations. Figure-18 System → Backup/Load: From the menu on left side of the webpage, clicking “Backup/Load”, it will display the screen as Figure-19 where to backup or load your configurations.
  • Page 27 H-16QAM-IP-RF Figure-19 System → Firmware: From the menu on left side of the webpage, click “Firmware”, it will display the screen as in Figure-20 where to update firmware for the device. Select IP output Mode, click “Apply” and reboot the device...

  • Page 28: Chapter 5 - Troubleshooting

    H-16QAM-IP-RF Chapter 5 - Troubleshooting THOR’s ISO9001 quality assurance system has been approved by the CQC organization. We guarantee the products’ quality, reliability and stability. All THOR products haven passed all testing and manual inspections before they are shipped out. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by THOR.

  • Page 29: Chapter 6 -Packing List

    H-16QAM-IP-RF Chapter 6 -Packing List H-8QAM-IP-RF User's Manual CD Power Cord RF In and Loop-out Cables 16PCS For Further Tech Support 1-800-521-Thor(8467) support@thorfiber.com Thor Fiber 2018 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
