Thor Broadcast H-2ADHD-QAM-IPLL Quick Setup Manual

Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
https://thorbroadcast.com
800-521-8467
sales@thorfiber.com
H-2ADHD-QAM-IPLL
Quick Setup Guide

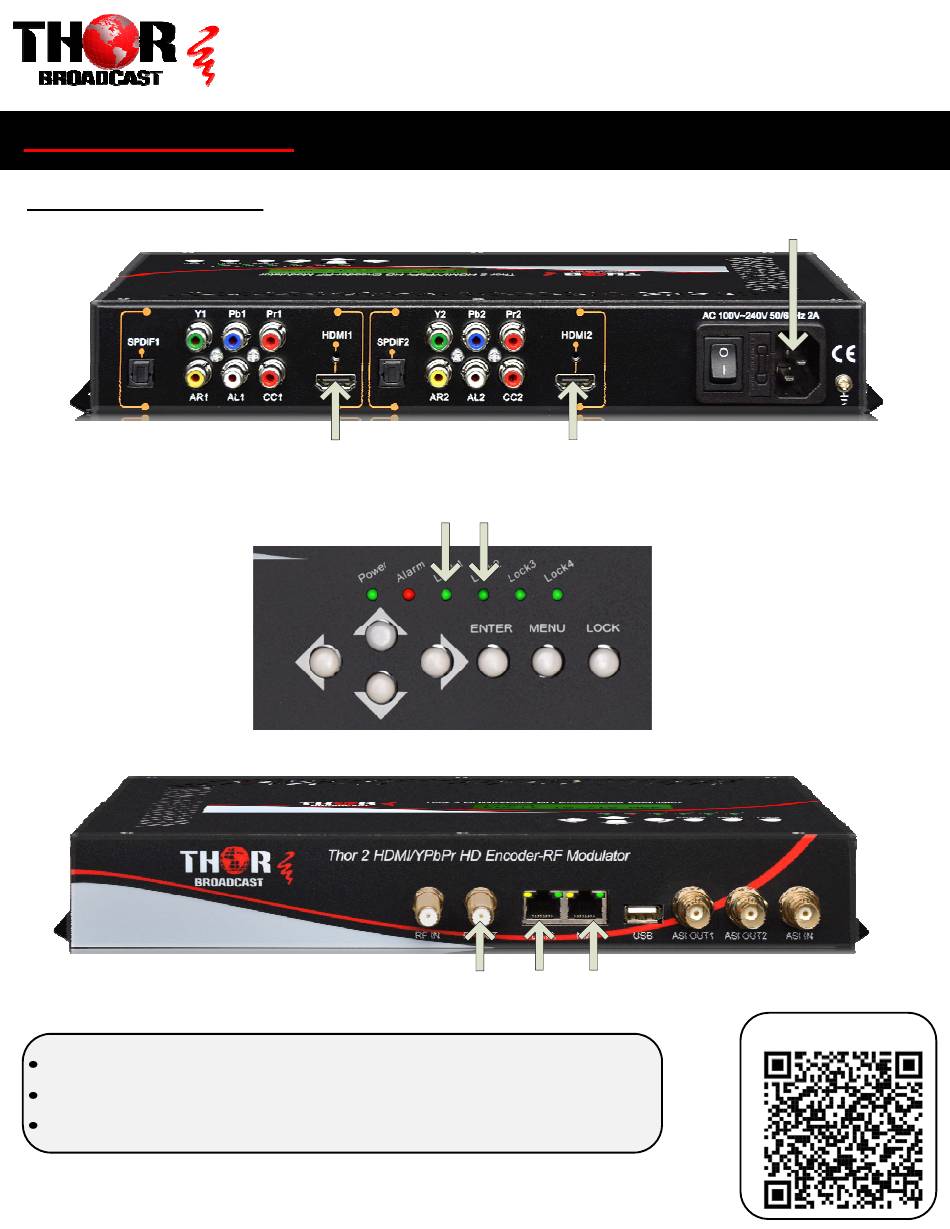

Step 1: Connect and Login
Connect Power Supply
HDMI 2
HDMI 1
Lock lights indicate inputs are properly connected
RF OUT
DATA NMS
Scan for more info:
Connect the NMS port to your PC using an ethernet cable
Open web browser and go to http://192.168.2.136
Login/Password: admin/admin
