Wiring and Connections

3-4-6 Peripheral Device Connection

3-4-7 Host Link Connections

One-to-one Host Link
Connection

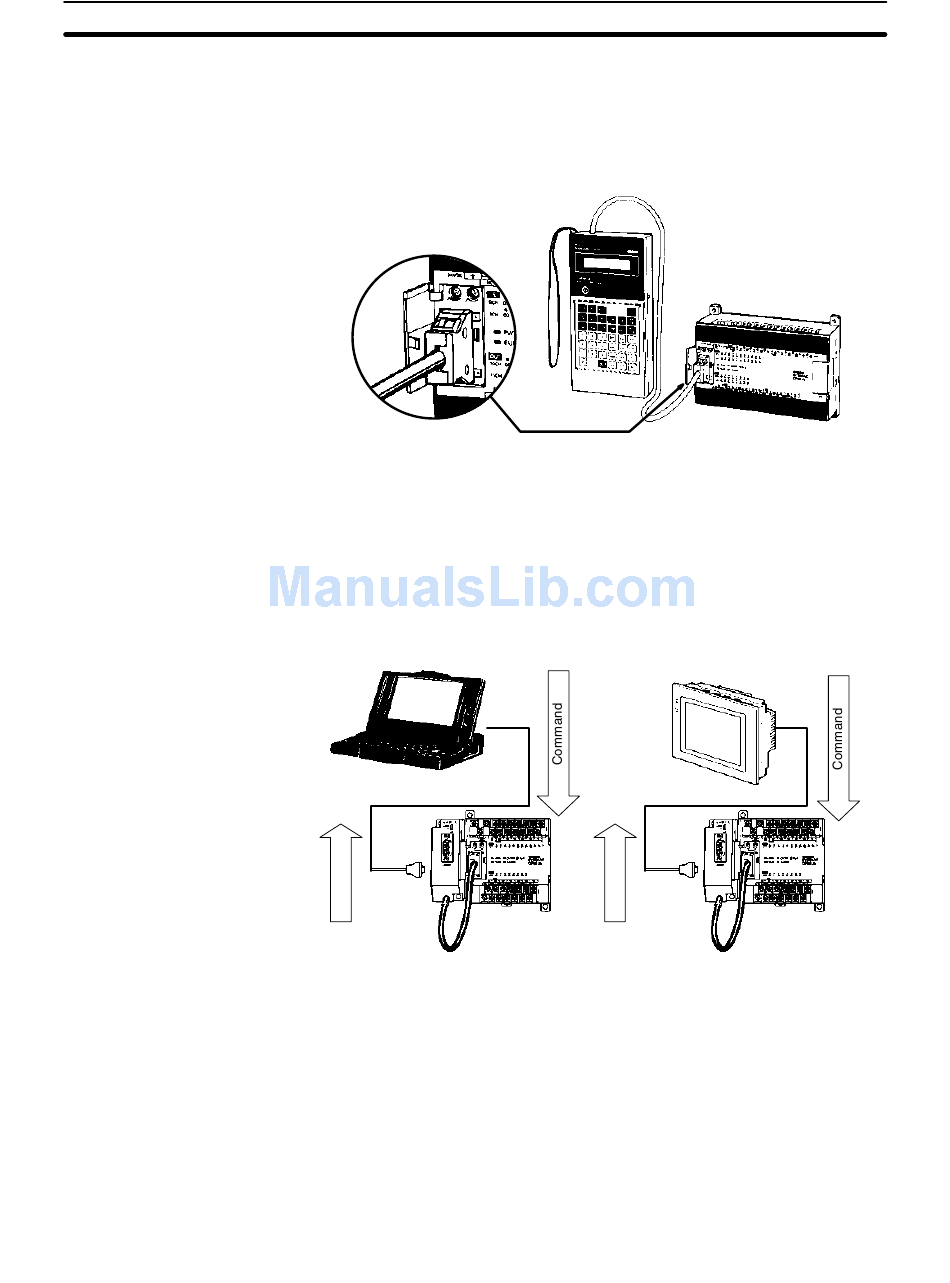

The CPM1A CPU Unit can be connected to a C200H-PRO27-E Programming
Console with a standard C200H-CN222 (2 m) or C200H-CN422 (4 m) Connect-
ing Cable. The CPM1A CPU Unit can be also connected to a CQM1-PRO01-E.
The CQM1-PRO01-E is provided with a 2-m Connecting Cable.
Host Link is a command/response communications system in which commands
are transmitted from the host computer and corresponding responses are
returned from the destination PCs. Host Link commands can be used to read/
write data in PC data areas and read/write PC settings.
The CPM1A CPU Unit can be connected to an IBM PC/AT compatible computer
or a Programmable Terminal with an RS-232C Adapter, as shown in the follow-
ing diagram.
RS-232C
CPM1A CPU Unit
Adapter
Section 3-4
OMRON PT
RS-232C
CPM1A CPU Unit
Adapter
