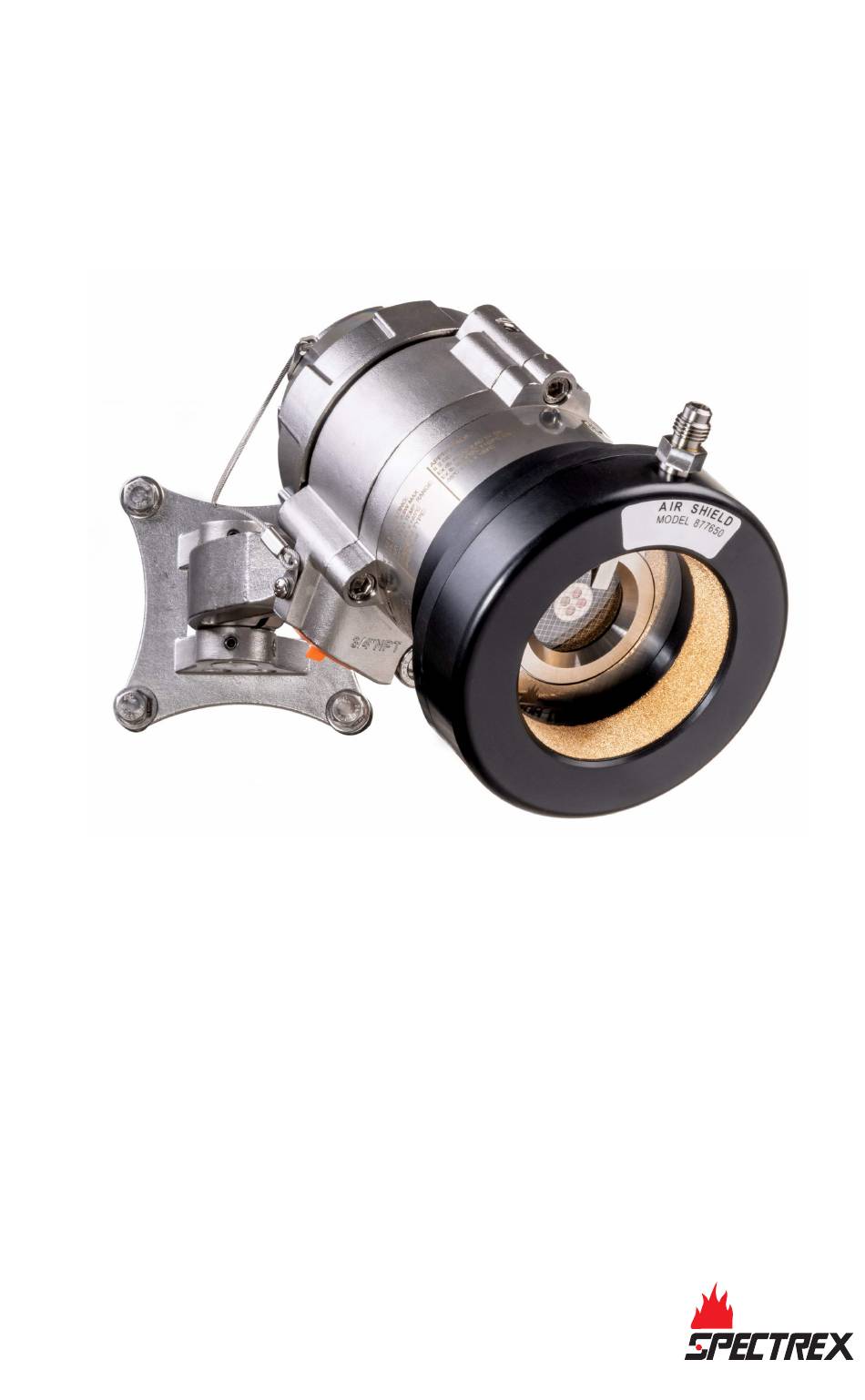

- Page 1 Quick Start Guide 00925-0700-4975, Rev AC May 2024 Spectrex SharpEye 40/40 Air Shield ™ ™...
- Page 2 Seller. All costs of dismantling, reinstallation, freight, and the time and expenses of Seller's personnel and representatives for site travel and diagnosis under this limited warranty clause shall be borne by Buyer unless accepted in writing by Seller. Goods repaired and Spectrex.net...
- Page 3 May 2024 Quick Start Guide parts replaced by Seller during the warranty period shall be in warranty for the remainder of the original warranty period or 90 days, whichever is longer. This limited warranty is the only warranty made by Seller and can be amended only in a writing signed by an authorized representative of Seller.
- Page 4 Quick Start Guide May 2024 Spectrex.net...
-
Page 5: Description
May 2024 Quick Start Guide 1 Description This document describes the installation instructions for the Air Shield P/N 877650. The Air Shield is suitable for use with SharpEye 40/40C and 40/40D optical flame detectors. Optical flame detectors are often used in highly polluted or dirty areas, where maintenance personnel must access the detector frequently to clean its optical window. -
Page 6: Installation
Quick Start Guide May 2024 2 Installation 2.1 Prepare surfaces Procedure 1. Verify that all connection surfaces are clean. 2. Open the lock screw. The screw is a captive screw. Figure 2-1: Surface Preparation A. Connection surfaces B. Lock screw Spectrex.net... - Page 7 May 2024 Quick Start Guide 2.2 Assembling the 40/40 Air Shield Procedure 1. Fit the air shield on the front of the detector. Figure 2-2: Rear View A. Air Shield rear view B. Detector Quick Start Guide...
- Page 8 Quick Start Guide May 2024 Figure 2-3: Front View Spectrex.net...
- Page 9 May 2024 Quick Start Guide 2. Lock the screw. Quick Start Guide...
- Page 10 Quick Start Guide May 2024 3. Attach the air pressure hose to the quick-fit air connection. Figure 2-4: Quick-Fit Air Connection A. Quick-fit air connection Spectrex.net...
-
Page 11: Technical Specifications
May 2024 Quick Start Guide 3 Technical specifications WARNING The temperature of the air supply to the air shield should never exceed 140 °F (60 °C). Clean, dry, and oil-free air Air pressure source 30-40 psig (2-3 bar) Inlet pressure 102 psig (7 bar) 7/16-in. -
Page 12: Dimensional Drawing
Quick Start Guide May 2024 4 Dimensional Drawing Spectrex.net... - Page 13 May 2024 Quick Start Guide Quick Start Guide...
- Page 14 Quick Start Guide 00925-0700-4975, Rev. AC May 2024 For more information: Spectrex.net © 2024 Emerson. All rights reserved. Spectrex is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
