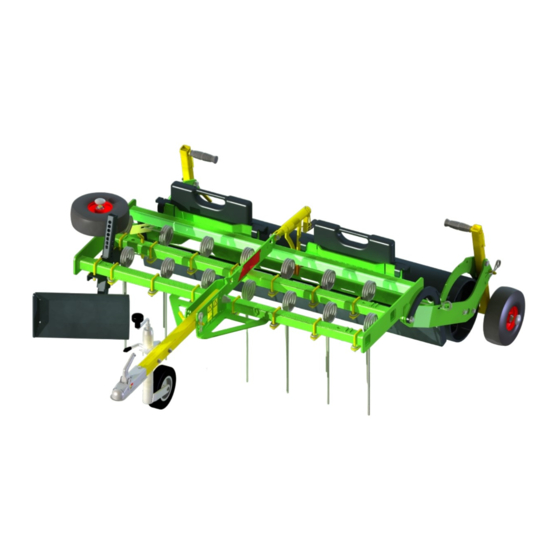

- Page 1 English Horse Arena Harrow 2023 1 Operator's Manual for Attachment Horse Arena Harrow Product number A21646 www.avanttecno.com A431450 2023 1 EN 2018-...
- Page 2 Horse Arena Harrow 2023 1...
-
Page 3: Table Of Contents
Horse Arena Harrow 2023 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE......................6 3. SAFETY INSTRUCTIONS FOR USING THE HORSE ARENA HARROW ........7 Personal protective equipment ..........................8 Safe shutdown procedure ............................ -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (28) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use
Usually the Horse arena harrow A21646 does not require rear hydraulic outlet on the loader, and only rear tow hitch ball is needed. The harrow is intended for levelling all soft materials generally used at horse arenas or similar areas. -
Page 7: Safety Instructions For Using The Horse Arena Harrow
7 (28) 3. Safety instructions for using the Horse arena harrow Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. -
Page 8: Personal Protective Equipment
8 (28) 3.1 Personal protective equipment Remember to wear proper personal protective equipment: The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ... -
Page 9: Technical Specifications
A35957 / 31 kg each, max 4 pcs Mounting kit for mounting attachment A449060 to Avant quick coupling: 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. - Page 10 10 (28) Table 3 - Decal locations and warning messages Decal Warning message 1 A46771 Misuse hazard - Read instructions before use. 2 A46803 Crushing hazard, moving components. Keep clear of moving components. 3 A419159 Attachment identification plate Table 4 - Horse Arena Harrow - Main components Trailer coupling, 50 mm ball hitch Nose wheel Towbar adjustment...
-
Page 11: Lifting
11 (28) 4.2 Lifting Make sure that the attachment is properly secured against unintended movements during lifting operation. Use appropriate type of lifting accessories, lifting straps, chains or hooks, for example. Do not use lifting accessories if there are signs of damage, deformation, or otherwise unsafe conditions. Lift the attachment by using the lifting points, that are shown in the adjacent figure. -
Page 12: Using The Horse Arena Harrow
If your loader is not listed in Table 1 on page , ask your Avant dealer before using this attachment. Avoid running over persons - Check surroundings before driving. Always look in the direction the loader is moving. -
Page 13: Coupling & Adjustments
13 (28) 5.2 Coupling & Adjustments It is important to check the adjustments of the attachment before using it for the first time. Actual correct settings depend heavily on the material and factors such as compactness or moisture of the material. Begin with tines adjusted higher than the roller to avoid unnecessary or damaging mixing of the lower materials of the arena. -
Page 14: Connect Electric Cable Of The Water Spraying System (Option)
14 (28) 5. Adjust the side wheel and side scraper blade: Both the wheel and the scraper blade can be fitted on either side of the harrow. 5.2.1 Connect electric cable of the water spraying system (option) If the harrow is equipped with the water spraying system, its electric harness must be connected to the loader. 5.2.1.1 To connect the electric harness of the attachment to the loader To operate the water spraying system, its cable harness A34731, delivered with the attachment and equipped with a 2-position switch, is connected to... -
Page 15: Use
15 (28) 5.3 Use Before starting to work: Read all safety instructions. Using the Horse arena harrow: Set the attachment to working position by locking the support wheels (optional extra) in operating position. Harrow the surface by towing the attachment on the ground with the loader. Move the loader to the desired direction forwards. -
Page 16: Storage
16 (28) 5.4 Storage Uncouple and store the attachment on level ground. The best way to store the attachment is a place where it is protected from direct sunlight, rain, and extreme temperatures. Avoid leaving the attachment laying directly on the ground. Place it on blocks of wood or on a pallet, for example. -
Page 17: Support Wheels (Option)
17 (28) 5.5 Support wheels (option) The support wheel kit A36593 can be fitted to make it possible to tow the harrow over longer distances. To set the wheels to either operating position, use both hands and simultaneously push the wheel by foot. Always lock the wheels in either operating mode with the pins provided. -
Page 18: Mounting Accessory (Option)
18 (28) 5.6 Mounting accessory (option) The Horse arena harrow can be equipped with mounting accessory A449060 option. With the lifting kit it is possible to mount the attachment to the quick coupling plate of the loader. The lifting kit also makes possible... -
Page 19: Hydraulic Support Wheels (Option)
5.7.2 Installation of the hydraulic support wheels Risk of high pressure fluid injection through skin. Installation includes assembling hydraulic components. Incorrect assembly or loose fittings may cause ejection of high pressure fluid. Contact Avant service for installation. DANGER... -
Page 20: Extra Weights (Option)
20 (28) 5.8 Extra weights (option) Some materials may require more weigh on the attachment for the best result. Typically more dense or easily compacted materials mix better and with better finish when counterweights are added. The same counterweights (A35957) can also be used as counterweights on the loader. Fit the counterweights as a pair and secure them with bolts at both ends. -
Page 21: Water Spraying System
21 (28) 6. Water spraying system To reduce spreading of dust and more compact finish, the harrow can be equipped with a water spraying system. This chapter describes the installation and use of the water spraying system. The option A37065 includes all needed parts to install the kit. -
Page 22: Installation Of Water Spraying System
If you have any questions, or if you want to have the water spraying system installed, contact your local Avant dealer or service point for more information. These instructions show illustrations of the basic process and recommended sequence of work. - Page 23 23 (28) Install water pump to Horse arena harrow Lift the water pump assembly onto the rear square beam of the frame of the Horse arena harrow Use the U-shaped bolts, washers, and nuts to fit the water pump assembly to the frame ...
-
Page 24: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and... -
Page 25: Cleaning The Attachment
25 (28) 7.2 Cleaning the attachment Clean the attachment regularly to prevent accumulation of dirt which is more difficult to remove. A pressure washer and mild detergent can be used for cleaning. Do not use strong solvents, and do not spray directly at the hydraulic components, or at the labels on the attachment. -
Page 26: Warranty Terms
26 (28) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 27 SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Hydraulitoimisilla tukipyörillä varustettu maneesilana; Avant-kuormaajan työlaite Hydraulisk ridhussplanerare; arbetsredskap för Avant lastare A21646 & A36593 Horse arena harrow that is equipped with hydraulic support wheels; attachment for Avant loaders 22.3.2023 Ylöjärvi, Finland Jani Käkelä,...
