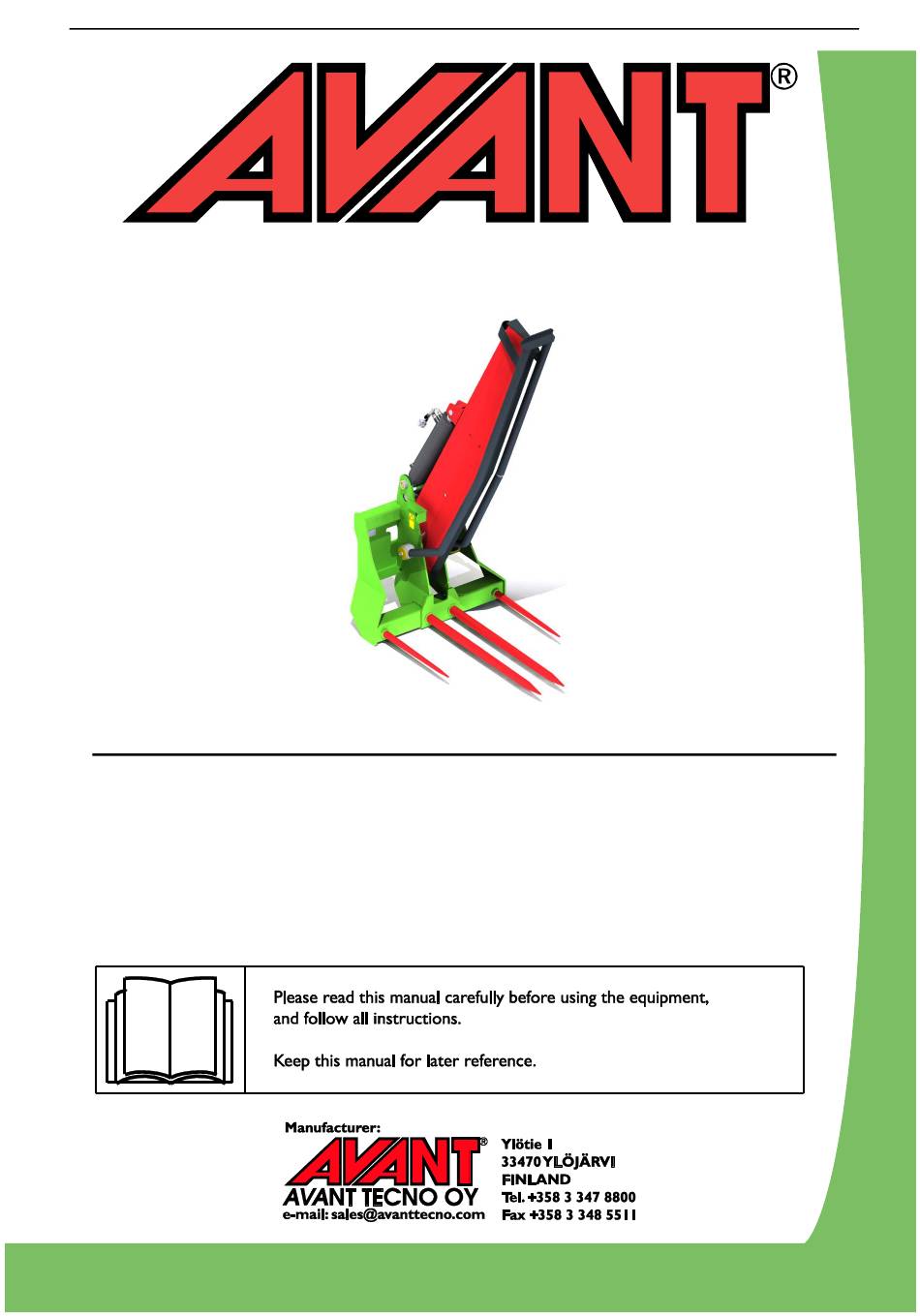

- Page 1 Round bale splitter 2015 1 Operator's Manual for Attachment Round bale splitter Product number For Avant 400 to 700 series loaders A36199 www.avanttecno.com...
- Page 2 Round bale splitter 2015 1...
-
Page 3: Table Of Contents
Round bale splitter 2015 1 CONTENTS 1. Foreword ................................. 4 2. Designed purpose of use ..........................5 3. Safety instructions for using the attachment ....................6 4. Technical specifications ..........................9 Safety labels and main components of the attachment ....................9 Safety labels and main components of the attachment .................... -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Designed Purpose Of Use
2. Designed purpose of use The AVANT Round bale splitter is an attachment suitable for use with AVANT multi purpose loaders shown in Table 1. Its wide and open design allows splitting of different size bales. Splitting is fast and efficient thanks to the form of the cutting blade and the strong hydraulic cylinder. -
Page 6: Safety Instructions For Using The Attachment
6 (20) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 7 7 (20) Operate the controls of the loader in a slow and calm manner. Be careful when lifting load to high level or lifting load from high. Avoid sudden changes in speed or direction to maintain balance of the loader especially when handling heavy loads. Drive slowly and carefully especially on inclined terrain or slippery surfaces.
- Page 8 8 (20) Remember to wear proper protective clothing: The noise level at the driver's seat may exceed 85 dB(A). Wear hearing protection while working with the loader. Wear protective gloves. Wear safety boots whenever working with the loader. Wear safety glasses when handling hydraulic components. Safe stopping of the attachment, before going near the attachment: Always stop the attachment following safe stopping procedure before leaving the driver's seat.
-
Page 9: Technical Specifications
305 kg Maximum input of hydraulic energy: max 22,5 MPa (225 bar) Suitable Avant loaders: See Table 1 4.1 Safety labels and main components of the attachment Listed below are the labels and markings, which must be visible on the equipment. Replace the warning labels, if they have become unclear or if they have detached completely. - Page 10 10 (20) Table 3 - Decal locations and warning messages Decal Explanation A46771 Read instructions before use.. A46772 Crushing hazard - Do not go under a raised attachment; stay away from raised equipment. A46803 Pinching and crushing hazard, keep clear of moving parts, do not leave the equipment running.
-
Page 11: Attaching The Attachment
11 (20) 5. Attaching the attachment Attaching the attachment to the loader is quick and easy, but it must be done carefully. The attachment is mounted to the loader boom by using the quick attach plate on the loader boom and the counterpart on the attachment. -
Page 12: Connecting And Disconnecting The Hydraulic Hoses
On 400-700 series loaders hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services. - Page 13 13 (20) To disconnect the multi connector system, 1. Switch off the auxiliary hydraulics of the loader. 2. While pushing unlock button, turn the lever to disconnect the connector. Conventional quick couplings (alternative couplings for some loader models): Before connecting or disconnecting the standard quick couplings, the residual pressure must be released as shown below.
-
Page 14: Operating The Bale Splitter
14 (20) 6. Operating the bale splitter Practise the use of the attachment and its controls in an open and safe area. If you are unfamiliar with the loader in use, it is recommended to practice its use without any attachments. Avoid overturning of the machine. -
Page 15: Using The Bale Splitter
15 (20) 6.2 Using the bale splitter Move auxiliary hydraulics control lever towards locking position to lift the blade Push the tines into the bale at its lower section, illustrated figure. Move the lever away from the locking position to push the blade down and to split the bale. -
Page 16: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and... -
Page 17: Cleaning The Attachment
17 (20) 7.2 Cleaning the attachment Clean the attachment regularly to prevent accumulation of dirt which is more difficult to remove. You may use a pressure washer and a mild detergent. Do not use strong solvents, and do not spray directly at the hydraulic components, or at the labels on the attachment. -
Page 18: Warranty Terms
18 (20) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 19 Mallit / Modeller / Modeller / Modeller / Models / Modellen: Avant Hydraulitoiminen paalileikkuri; Avant-kuormaajan työlaite Hydraulisk balskärare; arbetsredskap för Avant lastare Hydraulisk ballen splitteren; redskap for Avant minilastere Hydraulisk balle fordeler, redskab til Avant Minilæssere A36199 Hydraulic bale splitter; attachment for Avant loaders Hydraulische Ballenscheider;...
