Operator's Manual for Attachment
www.avanttecno.com
All-round grapple
Product number
For 200 series loaders (manufactured before
2016)
For 200 series loaders (from 2016) and 300 to
500 series loaders:
All-round grapple 2016 1
A33065
A110

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A33065 and is the answer not in the manual?

Questions and answers

Related Manuals for AVANT A33065

Summary of Contents for AVANT A33065

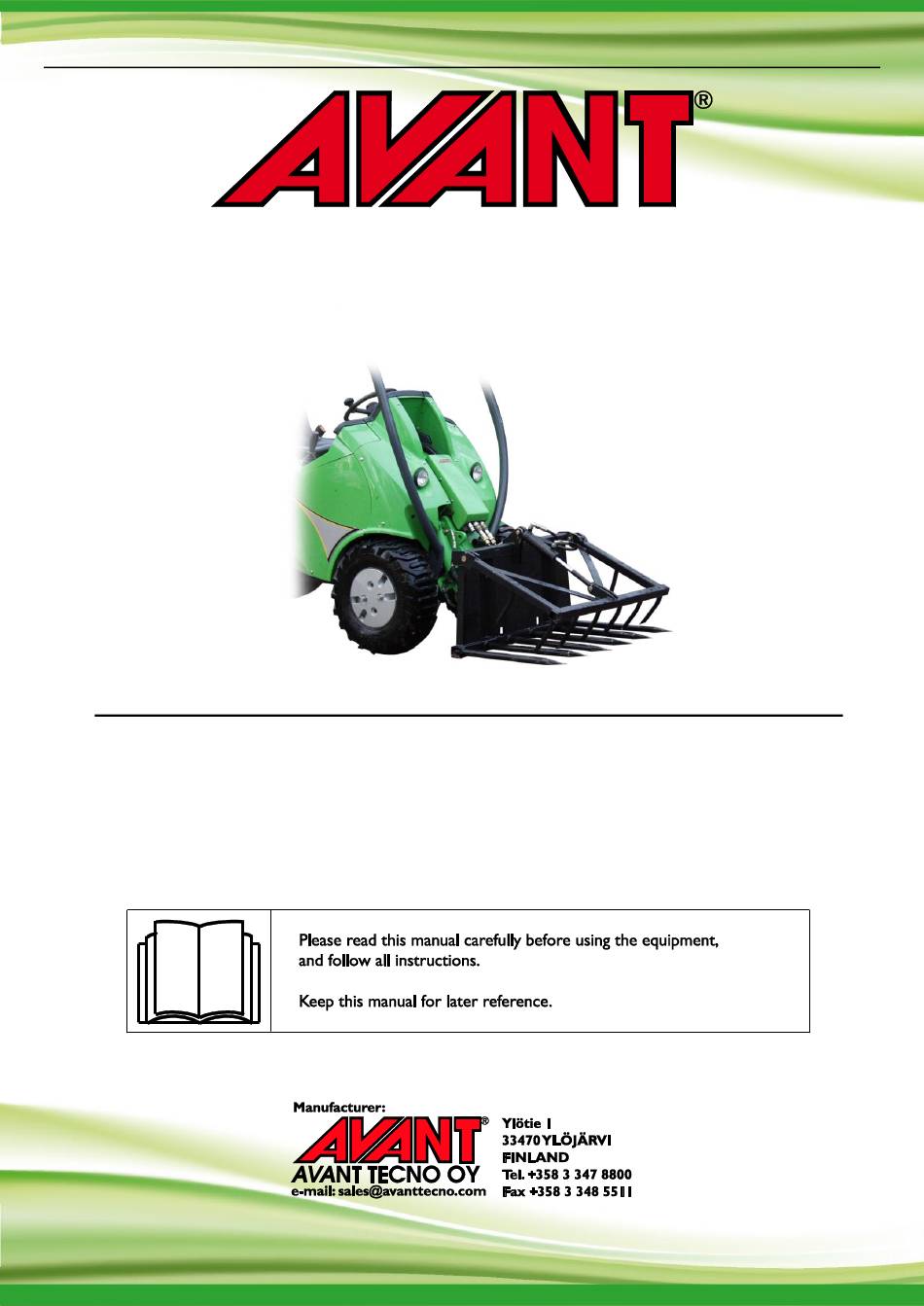

  • Page 1 English All-round grapple 2016 1 Operator's Manual for Attachment All-round grapple Product number For 200 series loaders (manufactured before A33065 2016) For 200 series loaders (from 2016) and 300 to A110 500 series loaders: www.avanttecno.com...
  • Page 2 All-round grapple 2016 1...

  • Page 3: Table Of Contents

    All-round grapple 2016 1 CONTENTS 1. FOREWORD ............................4 2. DESIGNED PURPOSE OF USE......................5 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............6 4. TECHNICAL SPECIFICATIONS ....................... 9 Safety labels and main components of the attachment ..................9 5. ATTACHING THE ATTACHMENT ....................11 Connecting and disconnecting the hydraulic hoses ...................

  • Page 4: Foreword

    If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer.

  • Page 5: Designed Purpose Of Use

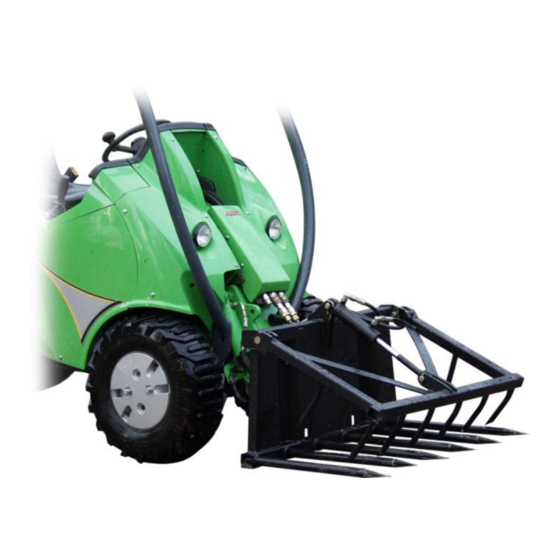

    2. Designed purpose of use The AVANT All-round grapple is an attachment suitable for use with AVANT multi purpose loaders shown in Table 1. It is intended to move or distribute loose materials which cannot be handled with a normal bucket or a pallet fork.

  • Page 6: Safety Instructions For Using The Attachment

    6 (22) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage.
  • Page 7 7 (22)  Pay attention to the surroundings and any other persons and machines moving in the vicinity. Pay attention to the contours of the terrain and other hazards, such as branches and trees that can reach to the driver's area, loose rocks, and slippery surfaces.
  • Page 8 8 (22) Remember to wear proper protective clothing: The noise level at the driver's seat may exceed 85 dB(A). Wear hearing protection while working with the loader. Wear protective gloves. Wear safety boots whenever working with the loader. Wear safety glasses when handling hydraulic components. Safe stopping of the attachment, before going near the attachment: Always stop the attachment following safe stopping procedure before leaving the driver's seat.

  • Page 9: Technical Specifications

    Hydraulic cylinder Maximum input of hydraulic energy: max 20,0 MPa (200 bar) Suitable Avant loaders: See Table 1 4.1 Safety labels and main components of the attachment Listed below are the labels and markings, which must be visible on the equipment. Replace the warning labels, if they have become unclear or if they have detached completely.
  • Page 10 10 (22) Table 3 - Decal locations and warning messages Decal Warning message A46771 Read instructions before use.. A46772 Crushing hazard - Do not go under a raised attachment; stay away from raised equipment. A46803 Pinching and crushing hazard, keep clear of moving parts, do not leave the equipment running.

  • Page 11: Attaching The Attachment

    11 (22) 5. Attaching the attachment The All-round grapple is ready to use as delivered. Couple the attachment and its hydraulic hoses to the loader as instructed in this chapter. Follow also the instructions given in the operator’s manual of the loader. Attaching the attachment to the loader is quick and easy, but it must be done carefully.

  • Page 12: Connecting And Disconnecting The Hydraulic Hoses

    On the 200 series 2 and 400-700 series loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services.
  • Page 13 13 (22) Keep all fittings as clean as possible; use the protective caps on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never leave the hoses hanging on the ground; place the couplings onto the holder on the attachment.
  • Page 14 14 (22) Releasing residual hydraulic pressure: In case residual pressure is left in the hydraulic system of the attachment, it is often possible to disconnect the hydraulic couplings, but it may be difficult to connect them the next time. If the fittings will not connect, the residual pressure must be released by turning the auxiliary hydraulics control lever of the loader, when the engine is turned off.

  • Page 15: Instructions For Use

    15 (22) 6. Instructions for use Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment.

  • Page 16: Checks Before Use

    16 (22) 6.1 Checks before use  Ensure that bystanders are at a safe distance when operating the equipment. Do not let anyone to enter danger area of the boom or to stay directly in front of the loader. Also make sure that it is safe to reverse with the loader.

  • Page 17: Material Handling

    17 (22) 6.3 Material handling Use maximum load indicated in the diagram of the operator’s manual of the loader as a guideline. Remember that the actual load carrying capacity varies according to operating conditions, especially unevenness of operating area has a great effect. Be especially careful when the load sensor indicator is activated. Also, make sure that the ground surface is firm and follow recommended tire pressures.

  • Page 18: Operating On Inclined Terrain

    18 (22) 6.4 Operating on inclined terrain Extra caution is needed when using the equipment on inclined terrains and slopes. Drive slowly especially on inclined, uneven, or slippery surfaces, and avoid sudden changes in speed or direction. Operate the controls of the loader with careful and smooth movements.

  • Page 19: Maintenance And Service

    Repair all leaks immediately after detecting them; a small leak can quickly grow into a big one. Operate the attachment only with type of hydraulic oil that is accepted for use in Avant loaders. Never handle hydraulic components when the...

  • Page 20: Cleaning The Attachment

    8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: ...
  • Page 21 Hydraulisk silogrip; redskap for Avant minilastere A33065 Hydraulisk overfaldsgreb, redskab til Avant Minilæssere A110 Hydraulic grapple; attachment for Avant loaders Hydraulische Allroundgreifer ; Anbaugerät für Avant Radlader Fourche crocodile à commande hydraulique destinée à être utilisée avec les chargeuses Avant 1.10.2015 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör / Administrerende direktør /...
