AVANT A36433 Operator's Manual

3 point hitch adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
3 Point Hitch Adapter 2015 2
Operator's Manual for Attachment
3 Point Hitch Adapter
Product
A36433
number:
www.avanttecno.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A36433 and is the answer not in the manual?

Questions and answers

Related Manuals for AVANT A36433

Summary of Contents for AVANT A36433

  • Page 1 3 Point Hitch Adapter 2015 2 Operator's Manual for Attachment 3 Point Hitch Adapter Product A36433 number: www.avanttecno.com...
  • Page 2 3 Point Hitch Adapter 2015 2...

  • Page 3: Table Of Contents

    3 Point Hitch Adapter 2015 2 CONTENTS 1. Foreword ................................. 4 2. Designed purpose of use ..........................5 3. Safety instructions for using the attachment ....................6 4. Technical specifications ..........................9 4.1.1 Safety labels and main components of the attachment ..................9 5.

  • Page 4: Foreword

    If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer.

  • Page 5: Designed Purpose Of Use

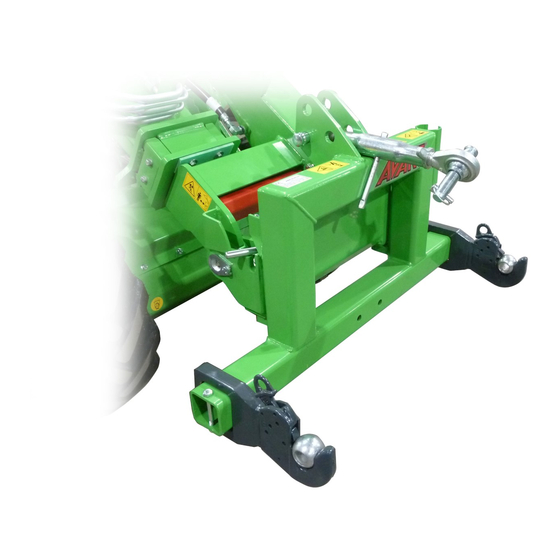

    2. Designed purpose of use The AVANT 3 Point Hitch Adapter is an attachment suitable for use with AVANT multi purpose loaders shown in Table 1. It is intended for moving agricultural attachments with CAT 2 three point hitch coupling with an Avant loader for storage, cleaning, service shop, or similar occasional, short distances.

  • Page 6: Safety Instructions For Using The Attachment

    6 (18) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage.
  • Page 7 7 (18)  Tipping over - Crushing hazard - Do not try to move an unattached attachment by pushing or dragging it, instead, always handle it with the loader.  Ensure that an unattached attachment is supported properly and can't accidentally move or tip over.
  • Page 8 8 (18) Remember to wear proper protective clothing:  The noise level at the driver's seat may exceed 85 dB(A). Wear hearing protection while working with the loader.  Wear protective gloves.  Wear safety boots whenever working with the loader. Safe position of the attachment, before going near the loader boom Always set the attachment to a safe position before going near the attachment.

  • Page 9: Technical Specifications

    (optional extra): CAT 1 mounting kit (optional A418980 extra): Suitable Avant loaders: See Table 1 4.1.1 Safety labels and main components of the attachment Listed below are the labels and markings, which must be visible on the equipment. Replace the warning labels, if they have become unclear or if they have detached completely.
  • Page 10 10 (18) Table 3 - Decal locations and warning messages Decal Warning message A46771 Read instructions before use. A46772 Crushing hazard - Do not go under a raised attachment; stay away from raised equipment. A46803 Pinching and crushing hazard, keep clear of moving parts, do not leave the equipment running.

  • Page 11: Attaching The Attachment

    11 (18) 5. Attaching the attachment Attaching the attachment to the loader is quick and easy, but it must be done carefully. The attachment is mounted to the loader boom by using the quick attach plate on the loader boom and the counterpart on the attachment.
  • Page 12 12 (18) An attachment that has not been completely locked to the loader may fall on the boom or towards the operator, or fall under the loader during driving, causing loss of control of the loader. Never move or lift an attachment that has not been locked.

  • Page 13: Instructions For Use

    13 (18) 6. Instructions for use Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment.

  • Page 14: Cat 1 Adapter Kit

    14 (18) Pay attention that a heavy load or long distance between the loader and the centre of gravity of the load will affect the balance and handling of the loader. The use of additional counterweights is recommended especially when operating smaller loader models. For 200-series loader the wheel weights are recommended.

  • Page 15: Inspections, Maintenance, And Service

    15 (18) 7. Inspections, maintenance, and service Clean the attachment regularly to prevent accumulation of dirt which is more difficult to remove. You may use a pressure washer and a mild detergent. Do not use strong solvents, and do not spray directly at the labels on the attachment.

  • Page 16: Warranty Terms

    16 (18) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows:  Work costs are covered, if the repair is not performed at the factory.
