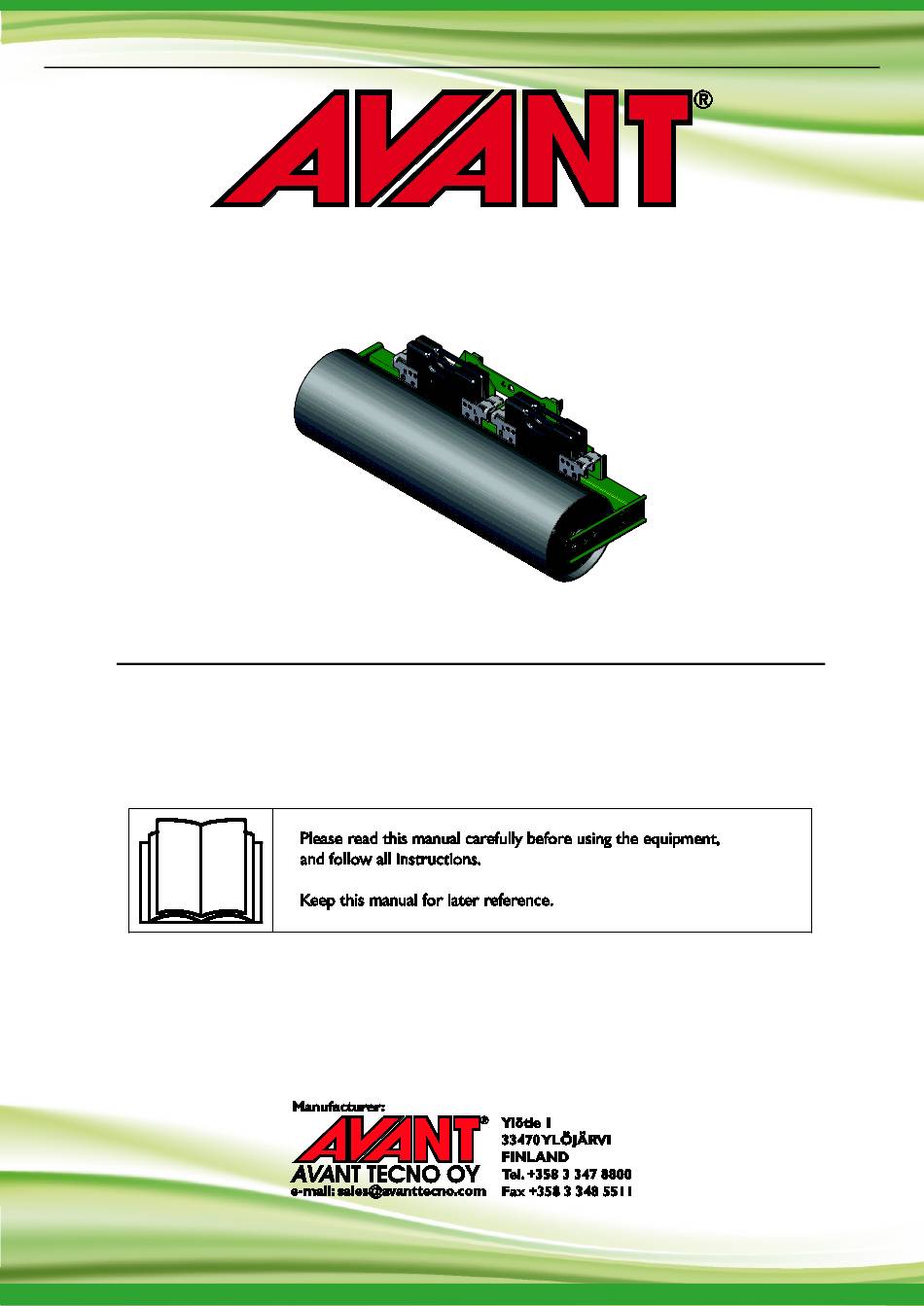

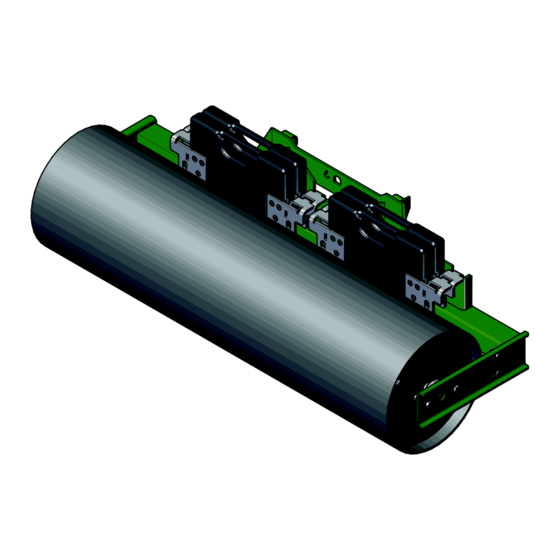

- Page 1 English Roller compactor 2018 1 Operator's Manual for Attachment Roller compactor Product numbe r A37064 / A37488 www.avanttecno.com...
- Page 2 Roller compactor 2018 1...
-
Page 3: Table Of Contents
Roller compactor 2018 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ..........................5 2. DESIGNED PURPOSE OF USE ......................6 3. SAFETY INSTRUCTIONS FOR USING THE ROLLER COMPACTOR ..........7 4. TECHNICAL SPECIFICATIONS ......................9 Safety labels and main components of the attachment.................. 9 5. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (16) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING: SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use
Both roller compactor models can be fitted with max. 4 pcs of Avant 29 kg back weights, if necessary. Roller compactor is not designed for any other use than specified and must not be used for any other purposes than intended. -
Page 7: Safety Instructions For Using The Roller Compactor
7 (16) 3. Safety instructions for using the roller compactor Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 8 8 (16) Remember to wear proper personal protective equipment: The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ...
-
Page 9: Technical Specifications
610 mm 610 mm Weight 100 kg 196 kg (without extra weights & water): Water volume 167 l Avant back weights Avant back weights Available options: A33957 A33957 Suitable AVANT loaders: See Table 1 See table 1 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. - Page 10 10 (16) Table 3 - Decal locations and warning messages Decal Warning message A46771 Misuse hazard - Read instructions before use. A46772 Crushing hazard - Do not go under a raised attachment; stay away from raised equipment. A46803 Pinching and cutting hazard, keep clear of moving parts, do not leave the equipment running.
-
Page 11: Assembling The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position. - Page 12 12 (16) Risk of falling objects - Prevent dropping of attachment. An attachment that has not been completely locked to the loader may fall on the boom or towards the operator, or fall under the loader during driving, causing loss of control of the loader.
-
Page 13: Operating The Attachment
The adapter allows the attachment to be tilted sideways for efficient levelling or grading work. Read the instructions provided with the tilt adapter. More information about the tilt adapter is available from your AVANT dealer or from the AVANT web pages at www.avanttecno.com. -
Page 14: Maintenance And Service
14 (16) 7. Maintenance and Service The attachment has been designed to be as maintenance free as possible. Continuous maintenance includes regular cleaning and lubrication, and monitoring the condition of the attachment. Because of the crushing hazard caused by lowering machine parts, all maintenance work must be done when moving parts have been lowered down completely and the attachment is lowered flat against the ground. -
Page 15: Warranty Terms
15 (16) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory.
