CS1W-NC@@@, C200HW-NC@@@
Position control units
High-speed, high-precision
positioning with 1, 2, or 4 axes
• Positioning can done by direct ladder commands
• Position and speed control
• Linear interpolation
• Interrupt feeding function
• Positioning of 100 points done from memory
• S-curve acceleration/deceleration, origin search,
backlash compensation, and other features are also
supported.
• Positioning data is saved in internal flash memory,
eliminating the need to maintain a backup battery.
• Use Windows-based support software to easily cre-
ate positioning data and store data and parameters
in files.
Function
These position control units support positioning control via pulse-train outputs. Positioning is performed using trapezoid al or S-curve acceleration
and deceleration. Models are available with 1, 2, or 4 axes control, and can be used in combination with servo drives or stepping motors what
accept pulse-train control.

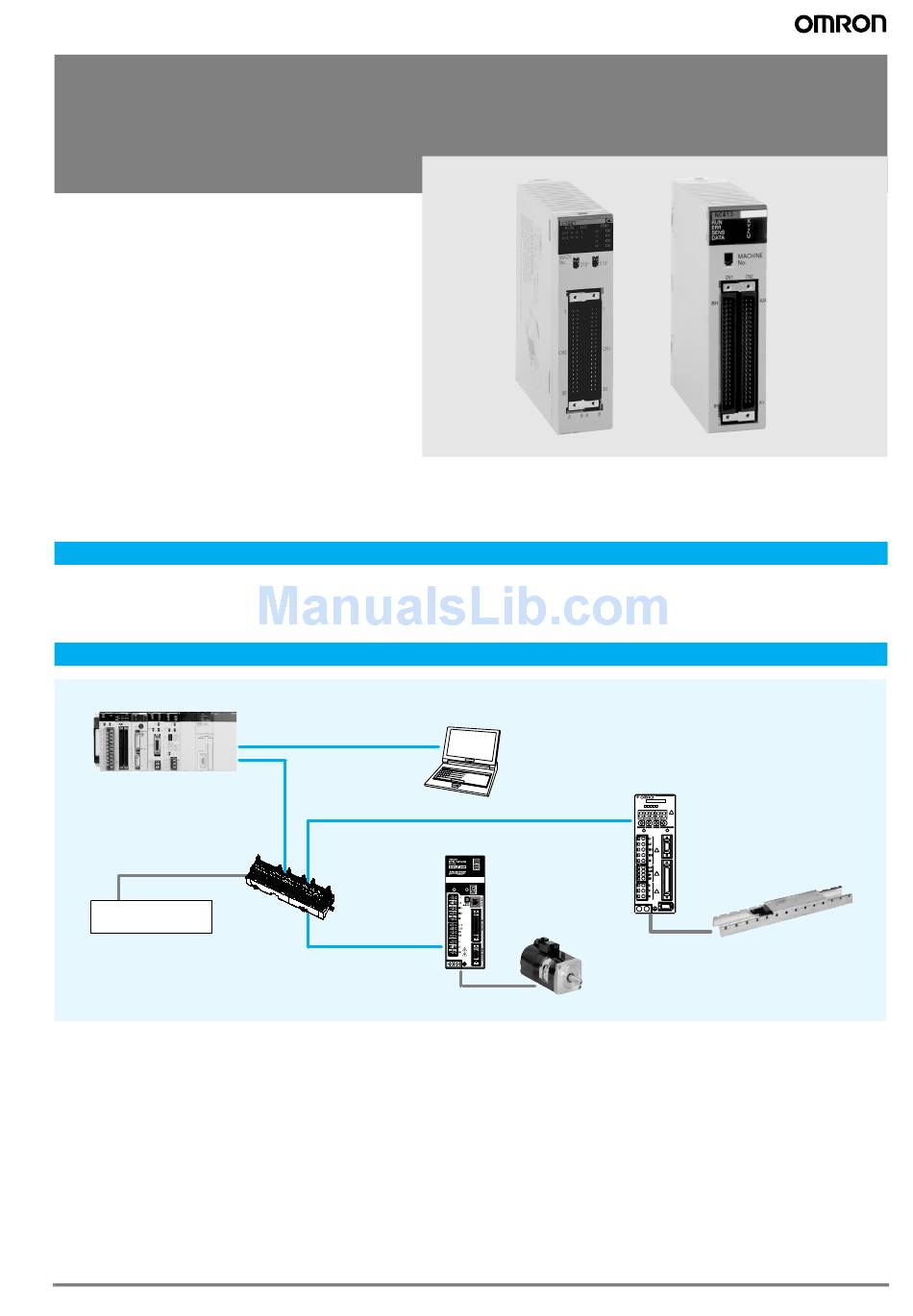

System configuration
CS 1 series
Position control unit
CS1W-NC_
Input
Limit switches
contact sensors
Position control units
Personal computer
Software: CX-One
SmartStep
Servo Drive
Servo
relay unit
Sigma-II series
SGDH-
Ver. 200V
Servo Drive
CHARGE POWER
CN3
CN1
Sigma-II series
Linear Motor
CN2
SmartStep
Servo Motor
