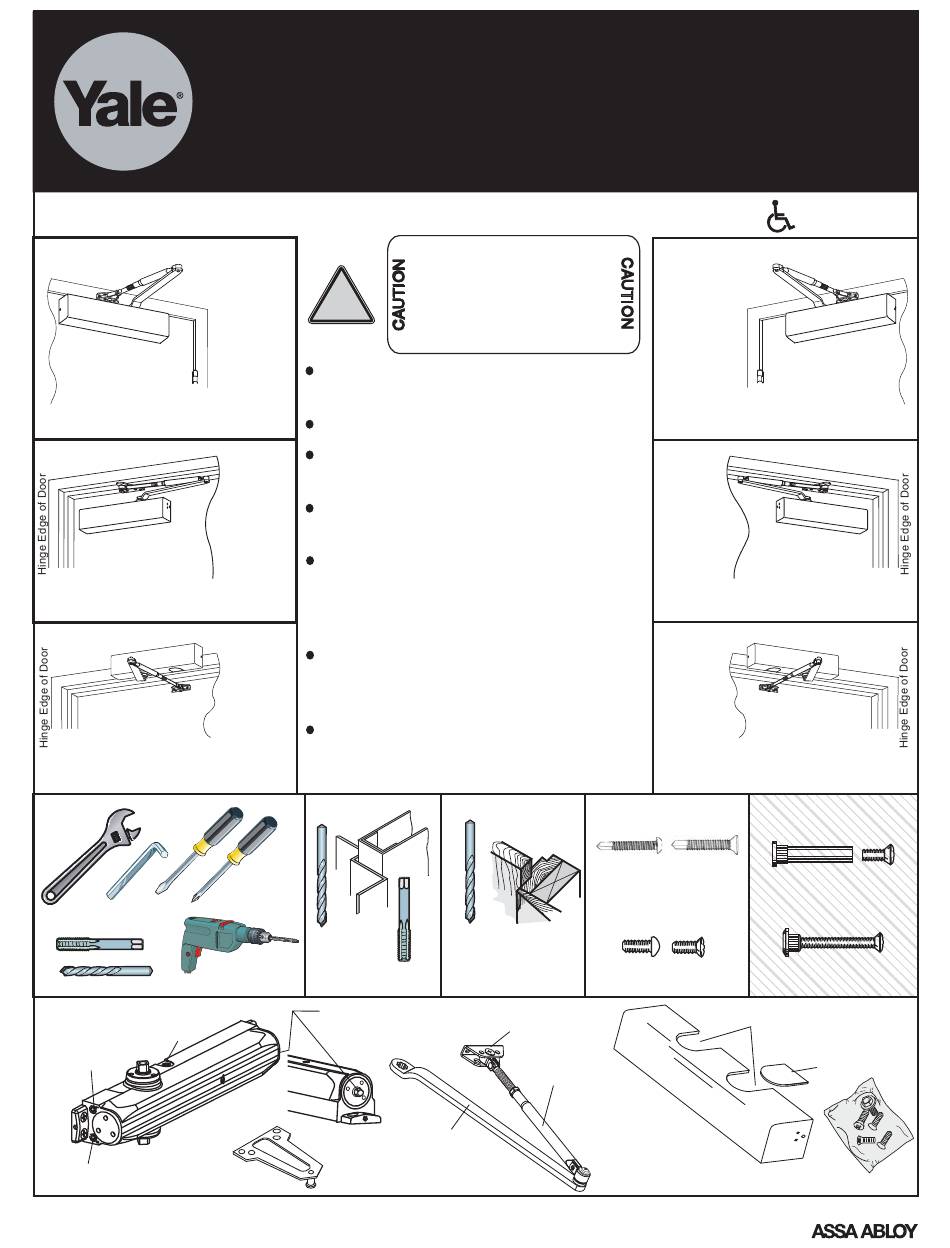

Assa Abloy Yale 2500 Series Installation Instructions Manual

Non Hold Open Models Adjustable (Sizes 1 thru 6) 2501
Regular Arm
Installation
See Page 2
Left Hand Door - LH
Right Hand Reverse - RHR
Parallel Arm
Installation
Left Hand Door - LH
Right Hand Reverse - RHR
Installation
Left Hand Door - LH
Right Hand Reverse - RHR
Backcheck Valve
Latch Valve
Closer
Body
Sweep Valve
An ASSA ABLOY Group brand
Architectural Door Closer
!
Doors should be hung on ball bearing
or anti-friction hinges.
A separate door stop is recommended.
Door and frame must be properly
reinforced.
Always adjust spring power before
adjusting control.
See Pages
Adjust closing time speed between 3
3 & 4
and 7 seconds from 90° to 0°. Greater
closing times may be required for
elderly or handicapped.
These door closers should
installed on the exposed side (weather
side) of exterior doors.
Top Jamb
Installation must be in accordance with
See Page 5
ANSI/BHMA A156.115.
Metal
#7
1/4-20
Power Adjustment Shaft
Parallel Arm
Bracket
2500 Series
Installation Instructions
A n I n c o r r e c t l y i n s t a l l e d o r
improperly adjusted door closer can
cause property damage or personal
injury.These installation instructions
should be followed to avoid the
possibility of misapplication or
misadjustment.
NOT be
Wood
3/16"
* Pilot Hole
Required
Regular Arm/Top
Jamb Shoe
Connecting Rod
Main Arm
Closer Arm
Regular Arm
Installation
See Page 2
Right Hand Door - RH
Left Hand Reverse - LHR
Parallel Arm
Installation
See Pages
3 & 4
Right Hand Door - RH
Left Hand Reverse - LHR
Top Jamb
Installation
See Page 5
Right Hand Door - RH
Left Hand Reverse - LHR
Self Drilling Screws
Wood and Metal
For Wood drill 3/16 hole
Drill 9/32 thru from Closer Side
for Wood drill 7/32
Thru Bolt and Grommet Nut
Machine Screws
Drill 9/32 thru from Closer Side
#7 Drill, 1/4-20 Tap
Insert Cutouts
Full Cover
80-9325-0025-010 Rev B
(Optional)
Sleeve Nut and Bolt
3/8 Drill other Side
3/8 Drill other Side
Cover
Insert
Screw Pack
