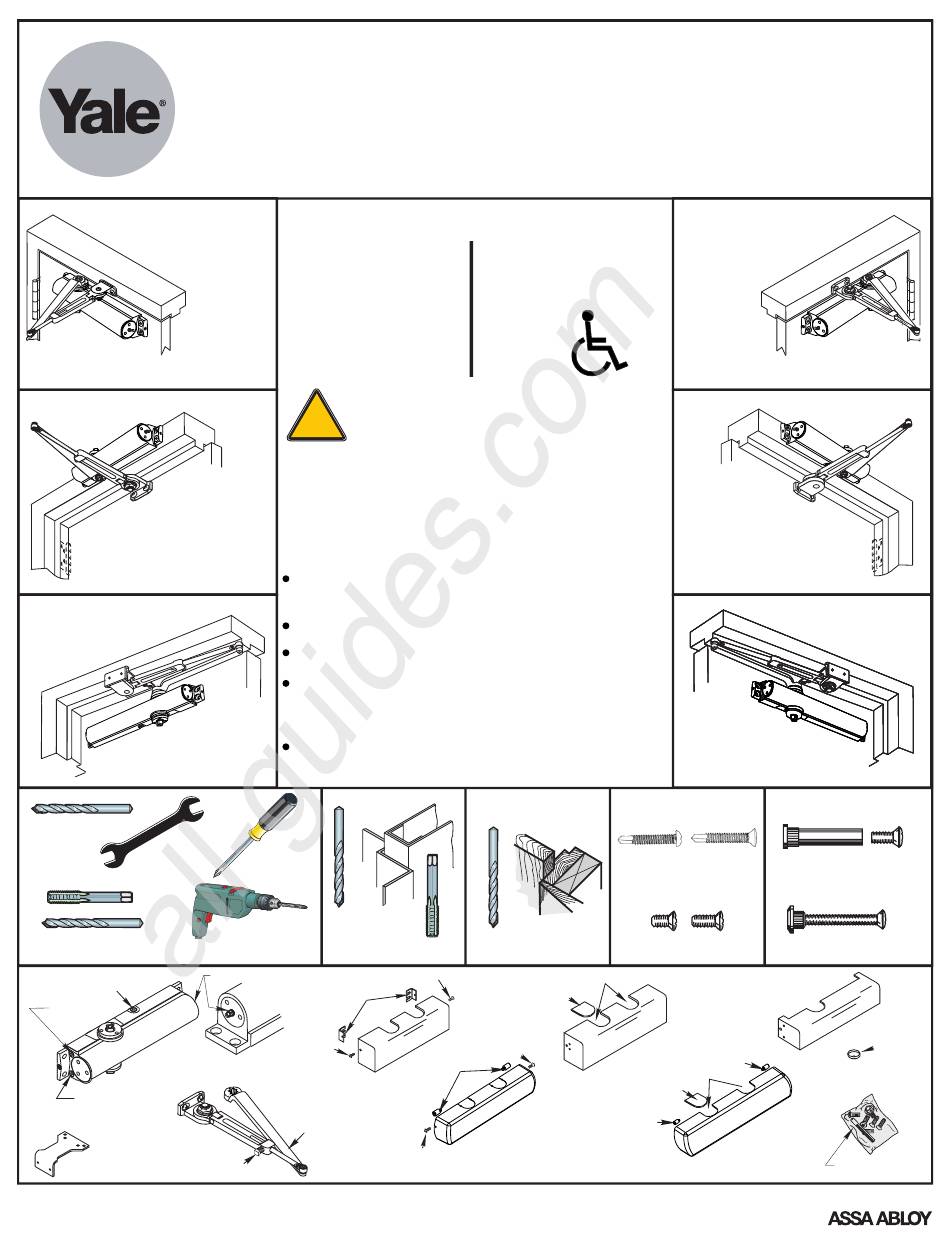

Assa Abloy Yale 3000 Series Installation Instructions Manual

Left Hand Door - LH
Right Hand Reverse - RHR
Regular Arm
Installation
See Page 2
Top Jamb
Installation
See Page 5
Left Hand Door - LH
Right Hand Reverse - RHR
Left Hand Door - LH
Right Hand Reverse - RHR
Parallel Arm
Installation
See Pages
Backcheck Valve
Latch Valve
Closer Body
Sweep Valve
Soffit Adapter Plate
588 Soffit Plate
Used with Parallel
Arm Closers Only
An ASSA ABLOY Group brand
All manuals and user guides at all-guides.com
Hold Open Arm Models
Sized
(Sizes 2,3,4,5,6)
3110
3310
3510
CAUTION
!
An Incorrectly installed or improperly adjusted door closer can cause
property damage or personal injury. These installation instructions should
be followed to avoid the possibility of misapplication or misadjustment.
"DL" suffix (Delayed Action) is an optional feature.
NOTE: For special applications a separate door
and frame preparation template is packed with
these instructions. Use this instruction sheet for
installation sequence and closer adjustments only.
Doors should be hung on ball bearing or anti-
friction hinges.
A separate door stop is recommended.
Door and frame must be properly reinforced.
Adjust closing time speed between 3 and 7
seconds from 90° to 0°. Greater closing times may
be required for elderly or handicapped.
These door closers should NOT be installed on the
exposed side (weather side) of exterior doors.
3 & 4
Metal
#7
Power Adjustment Shaft
Cover Clips
Cover Screws
Optional 3500M
Arm Series Metal Cover
Assembly
Main Arm
Cover Screws
Set
Screw
3000 Series Tri-Packed
Non Handed Door Closer
Installation Instructions
Adjustable
(Sizes 1 thru 6)
3311
3511
Wood
3/16"
1/4-20
Cover Screw
Cover
Insert
Cover Screw
Standoffs
Standard 3510
NOTE: Architectural Cover CAN
NOT be used for doors swinging
over 120° using parallel mount
Optional 3510
Architectural Metal Cover
Right Hand Door - RH
Left Hand Reverse - LHR
Regular Arm
Installation
See Page 2
Top Jamb
Installation
See Page 5
Right Hand Door - RH
Left Hand Reverse - LHR
Parallel Arm
Installation
See Pages
3 & 4
Self Drilling Screws
Wood and Metal
For Wood drill 3/16 hole
Machine Screws
#7 Drill, 1/4-20 Tap
Insert Cutouts
Standard 3310
Standoff
Insert Cutouts
Full Cover
Cover
Insert
Standoff
Optional 3510
Architectural Plastic
80-9303-2207-010 Rev 2 (09-17)
Right Hand Door - RH
Left Hand Reverse - LHR
(Optional)
Sleeve Nut and Bolt
Drill 9/32 thru from Closer Side
3/8 Drill other side
Thru Bolt and Grommet Nut
Drill 9/32 thru from Closer Side
3/8 Drill other Side
Narrow Cover
Pinion Cap
Screw Pack
Cover
