Non handed door closer

Advertisement

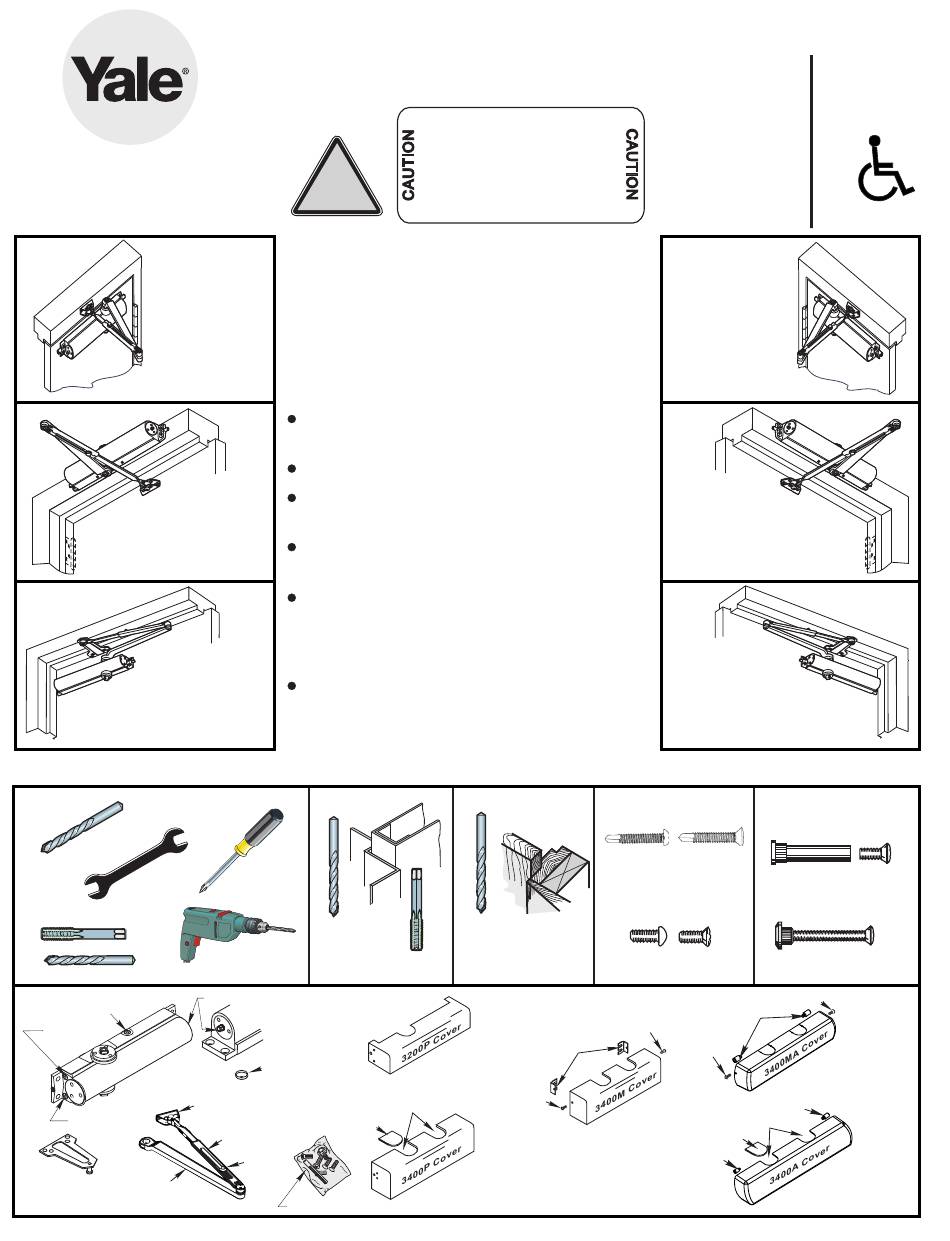

3000 Series Tri-Style
Non Handed Door Closer
Regular Arm
Installation
See Page 2
Left Hand Door - LH
Right Hand Reverse - RHR
Top Jamb
Installation
See Page 5
Left Hand Door - LH
Right Hand Reverse - RHR
Parallel Arm
Installation
See Pages
Left Hand Door - LH
Right Hand Reverse - RHR
Backcheck Valve
Latch Valve

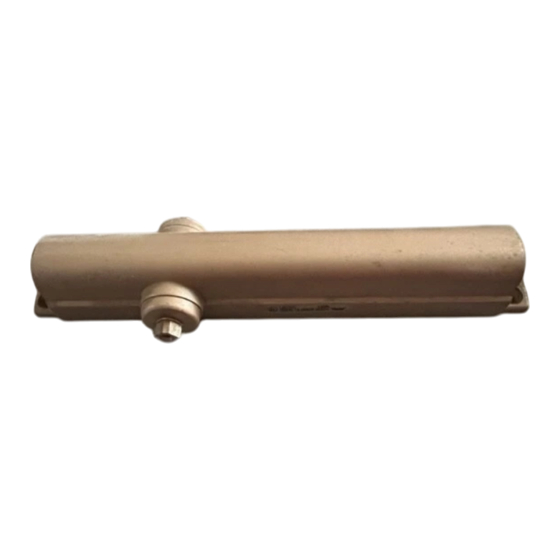

Closer Body
Regular Arm/Top
Jamb Shoe
Sweep Valve
289A Soffit Plate
Main Arm
Used with Parallel
Closer Arm
Arm Closers Only
Installation Instructions
80-9303-2206-010 Rev 2 (09-17)
!
"DL" suffix (Delayed Action) is an optional
feature.
NOTE: For special applications a
separate door and frame preparation
template is packed with these instructions.
Use this instruction sheet for installation
sequence and closer adjustments only.
Doors should be hung on ball bearing or
anti-friction hinges.
A separate door stop is recommended.
Door and frame must be properly
reinforced.
Always adjust spring power before
adjusting control.
Adjust closing time speed between 3 and 7
seconds from 90° to 0°. Greater closing
times may be required for elderly or
handicapped.
These door closers should NOT be
3 & 4
installed on the exposed side (weather
side) of exterior doors.
Metal
#7
Power Adjustment Shaft
Pinion Cap
Cover
Insert
Connecting Rod
Forearm
Screw
Screw Pack
A n I n c o r r e c t l y i n s t a l l e d o r
improperly adjusted door closer can
cause property damage or personal
injury. These installation instructions
should be followed to avoid the
possibility of misapplication or
misadjustment.
Wood
3/16"
* Pilot Hole
1/4-20
Required
Cover Clips
Narrow Cover
Standard With
3300 Series
Cover Screws
Insert Cutouts
NOTE: Architectural Cover CAN
NOT be used for doors swinging
Full Cover
over 120° using parallel mount.
Standard With
3500P Series
Non Hold Open Models
Sized
(Sizes 2,3,4,5,6)
3100
3300
3500
Regular Arm
Installation
See Page 2
Right Hand Door - RH
Left Hand Reverse - LHR
Top Jamb
Installation
See Page 5
Right Hand Door - RH
Left Hand Reverse - LHR
Parallel Arm
Installation
See Pages
3 & 4
Right Hand Door - RH
Left Hand Reverse - LHR
Self Drilling Screws
Wood and Metal
Sleeve Nut and Bolt
For Wood drill 3/16 hole
for Wood drill 7/32
Drill 9/32 thru from Closer Side
Thru Bolt and Grommet Nut
Machine Screws
#7 Drill, 1/4-20 Tap
Drill 9/32 thru from Closer Side
Standoffs
Cover Screw
Cover Screws
Standoff
Metal Cover
Insert Cutouts
Standard With
Cover
3500M Series
Insert
Standoff
Adjustable
(Sizes 1 thru 6)
3301
3501
(Optional)
3/8 Drill other side
3/8 Drill other Side
Cover Screw
Architectural
Metal Cover
Standard
With 3500MA Series
Architectural Plastic
Cover
Standard
With 3500A Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Yale 3000 Series and is the answer not in the manual?

Questions and answers

Mark Toko
March 14, 2025

Door is too hard to open even when screw adjustment is all the way out

1 comments:
Mr. Anderson
March 14, 2025

The Assa Abloy Yale 3000 Series door closer may be too hard to open even with the screw adjustment fully out due to the spring power setting being too high. The closing force for the 3301 and 3501 series is adjustable from size 1 to size 6. If the spring power is set too strong, it will require more force to open the door. Adjusting the spring power using a 5/16” socket or adjustable wrench may help reduce the opening force.

This answer is automatically generated

Rich
February 19, 2025

We have a yale door closer series 3000 with a hold open arm and need a replacement for the friction disk and need the proper part number and where to obtain

1 comments:
Mr. Anderson
May 14, 2025

The context does not provide a specific part number for the friction disk replacement for the Yale 3000 Series door closer with a hold open arm. It also does not specify where it can be obtained.

This answer is automatically generated

Summary of Contents for Assa Abloy Yale 3000 Series

  • Page 1 Non Hold Open Models Installation Instructions Sized Adjustable 80-9303-2206-010 Rev 2 (09-17) (Sizes 2,3,4,5,6) (Sizes 1 thru 6) 3301 3100 3501 3300 A n I n c o r r e c t l y i n s t a l l e d o r improperly adjusted door closer can 3500 cause property damage or personal...
  • Page 2 3000 Series Non Hold Open Door Closers — Regular Arm 80-9303-2206-010 Rev 2 (09-17) Mark and Drill Holes Parts 5-1/2 1-3/4 (140) (44) 1-1/4 (32) (19) 1-1/8 (29) (305) Optional Right Hand Shown Installation Sequence Inches Dimension "A" Opening (mm) 7-1/2 To 100°...
  • Page 3 3000 Series Non Hold Open Door Closers — Parallel Arm 80-9303-2206-010 Rev 2 (09-17) 2-3/4 Parts Mark and Drill Holes (70) (10) (51) Optional 7/16 (13) (11) Installation Sequence Top of Door Frame 3-1/2 (89) (19) (304.8) Right Hand Shown Inches Door (mm)
  • Page 4 3000 Series Non Hold Open Door Closers — Parallel Arm 80-9303-2206-010 Rev 2 (09-17) Open Valves Assemble Arm Right Hand Sweep Door Flat Left Hand Door Latch Flat Caution: Don't remove valves Sweep Arm Screw Spring Power Adjust (If necessary) Latch 1-1/2 (38)
  • Page 5 3000 Series Non Hold Open Door Closers — Top Jamb Arm 80-9303-2206-010 Rev 2 (09-17) Mark and Drill Holes Parts (304.8) (19) Top of Frame 1-7/8 (38) (13) 1-3/4 5-1/2 (140) (44) Inches Optional Door/Wall/Hardware/Jamb (mm) Right Hand Shown conditions permitting Installation Sequence Dimension "A"...
  • Page 6 An ASSA ABLOY Group brand 3000 Highway 74 East • Monroe, NC 28112 Yale ® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright © 2004, 2017, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.

This manual is also suitable for:

Yale 3100Yale 3300Yale 3500Yale 3301Yale 3501Yale 3101
