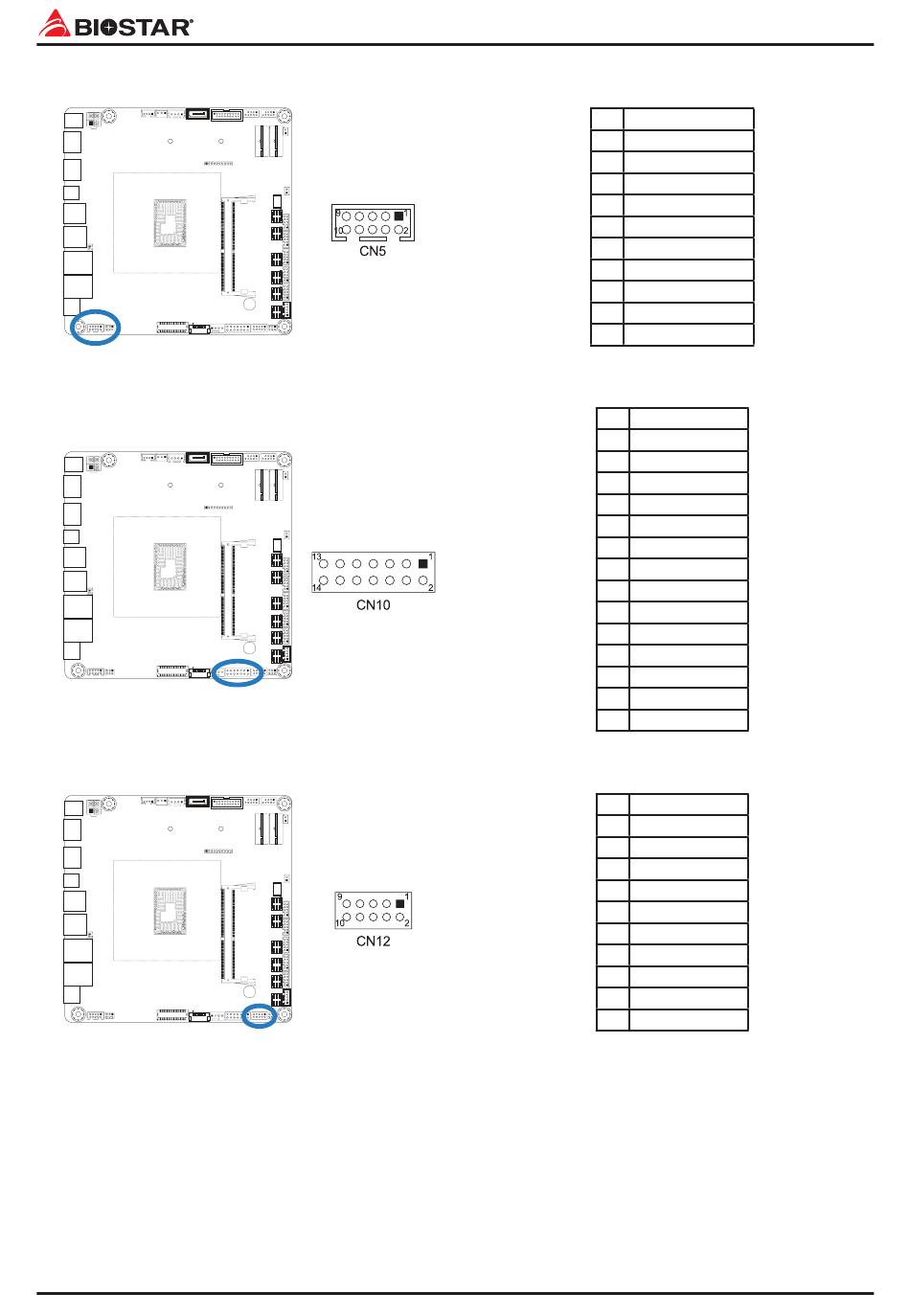

CN5: AUDIO Header
CN10: Front panel & Buzzer
CN12: DIO Header
18 | Chapter 2: Hardware installation
Pin Assignment
1
MIC IN
2
GND
3
LINE IN L
4
GND
5
LINE IN R
6
GND
7
SPKOUT L
8
GND
9
SPKOUT R
10
GND
Pin Assignment
1
PWRLED+
2
EXT SPK-
3
GND
4
Buzzer
5
PWRLED-
6
N.C.
7
N.C.
8
EXT SPK+
9
PWRSW-
10
PWRSW+
11
HW RST-
12
HW RST+
13
HDDLED-
14
HDDLED+
Pin Assignment
1
5V
2
DO0
3
DI0
4
DO1
5
DI1
6
DO2
7
DI2
8
DO3
9
DI3
10
GND
