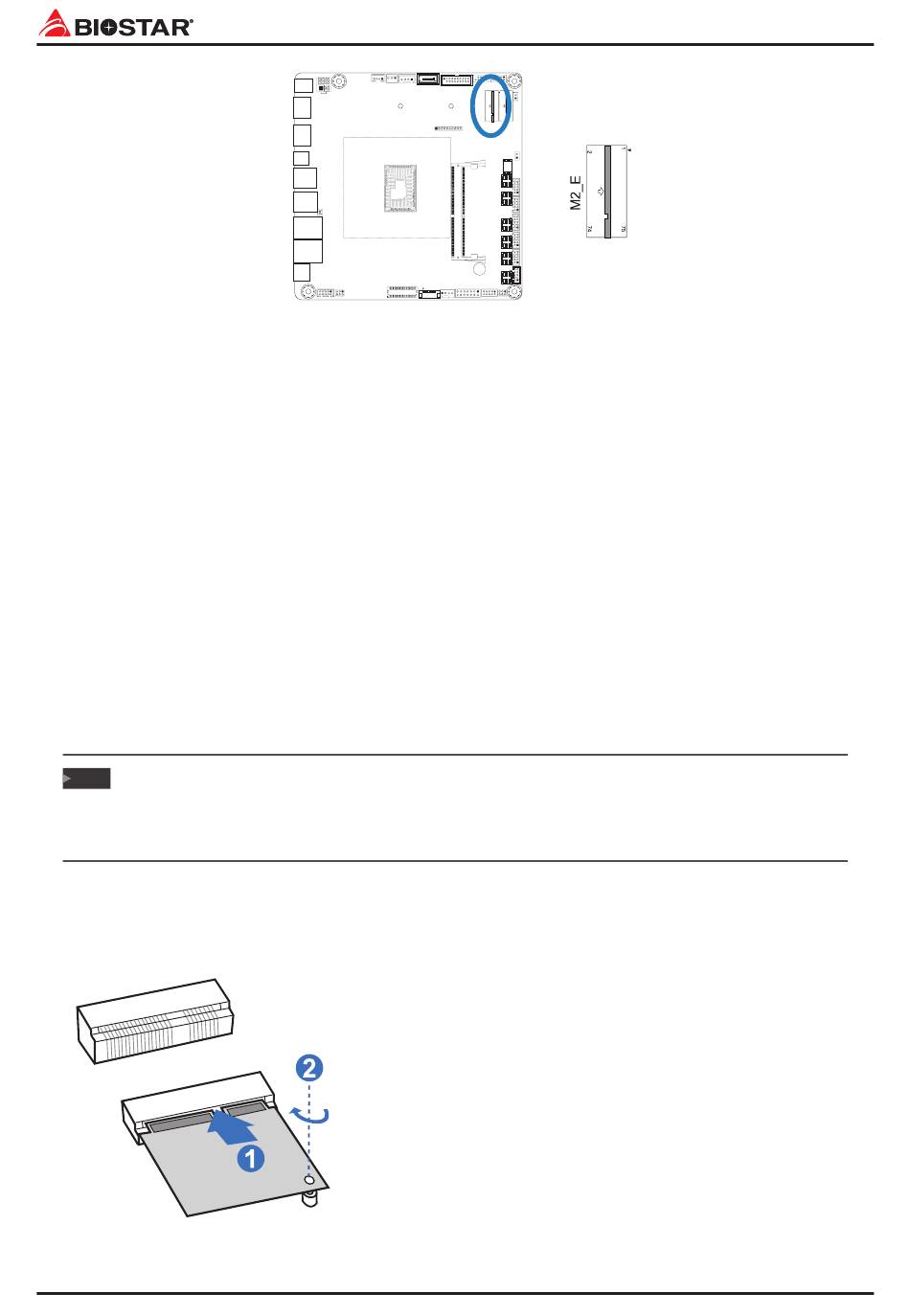

M2_E: M.2 (E Key) Socket
• Support M.2 socket 2230 type module.
• Supports WiFi/ Bluetooth module and Intel® CNVi (Integrated WiFi/ BT).
Install an Expansion Card
You can install your expansion card by following steps:
• Read the related expansion card's instruction document before install the expansion card into the
computer.
• Remove your computer's chassis cover, screws and slot bracket from the computer.
• Place a card in the expansion slot and press down on the card until it is completely seated in the
slot.
• Secure the card's metal bracket to the chassis back panel with a screw. (This step is only for
installing a VGA card.).
• Replace your computer's chassis cover.
• Power on the computer, if necessary, change BIOS settings for the expansion card.
• Install related driver for the expansion card.
Note
» » Please be note that you will need to use M2 type screwdriver if you want to install or uninstall the screw. It
is recommended not to use a screwdriver that does not meet the specifications, otherwise the screw may be
damaged.
Installing WiFi Module
1. Insert WiFi module into mini PCIe slot
2. Secure screw to the motherboard
» » Wi-Fi module & screw sold separately.
