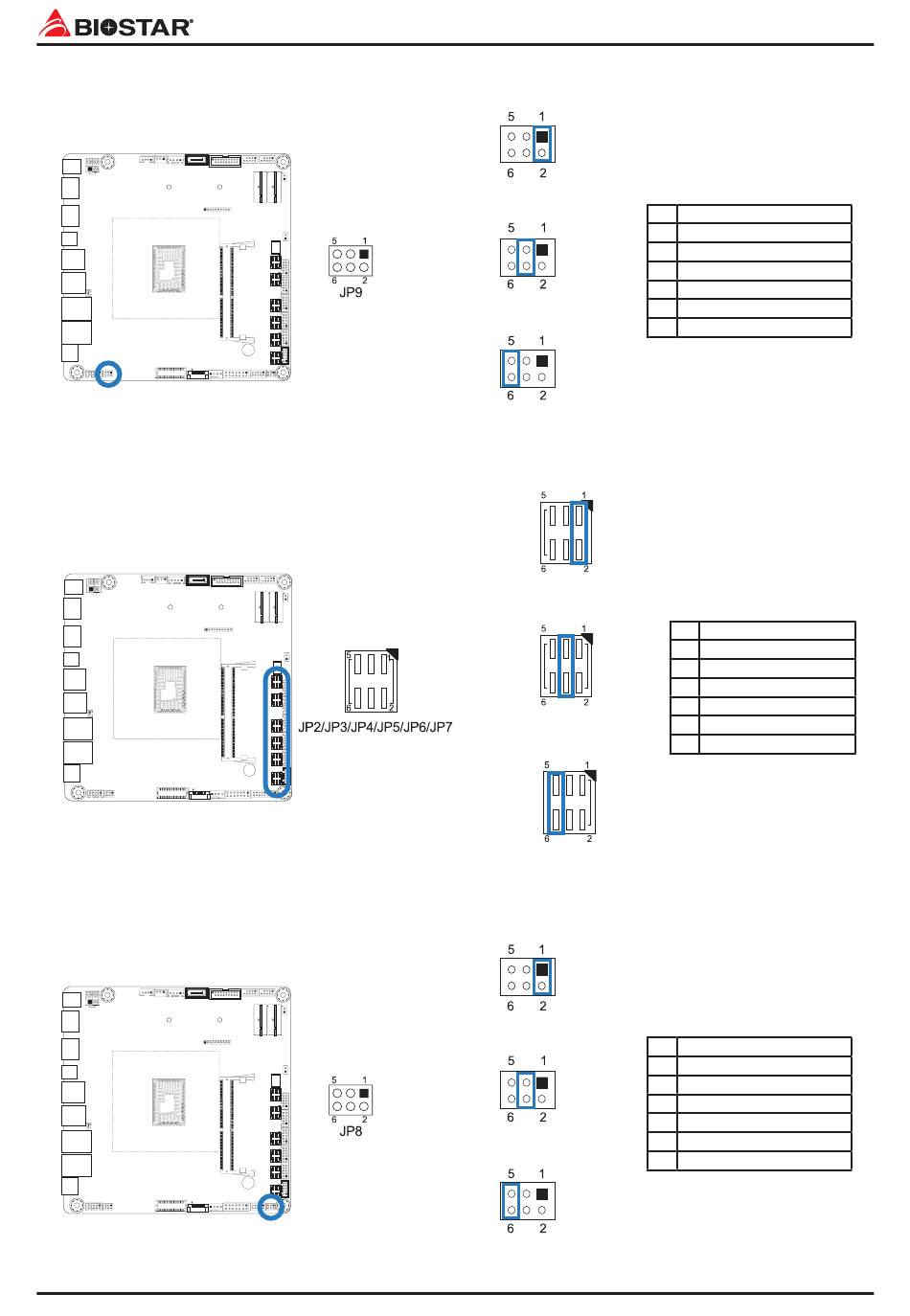

JP9: LVDS VDD Select
JP2/ JP3/ JP4/ JP5/ JP6/ JP7: COM VDD
JP8: DIO Power Select
14 | Chapter 2: Hardware installation
Pin 1-2 Short 3V (Default)
Pin 3-4 Short 5V
Pin 5-6 Short 12V
Pin 1-2 Short COM RI (Default)
Pin 3-4 Short RI=VCC5
Pin 5-6 Short RI=VCC12
Pin 1-2 = VCC 1.8V
Pin 3-4 = VCC 3.3V (Default)
Pin 5-6 = VCC 5V
Pin Assignment
1
VCC 3V3 (Default)
2
VDD OUT
3
VCC 5V
4
VDD OUT
5
VCC 12V0
6
VDD OUT
Pin Assignment
1
COM_RI-Sel
2
COM RI (Default)
3
COM_RI-Sel
4
VCC5
5
COM_RI-Sel
6
VCC12
Pin Assignment
1
VDD OUT
2
+V1.8S
3
VDD OUT
4
VCC3_3 (Default)
5
VDD OUT
6
VCC5
