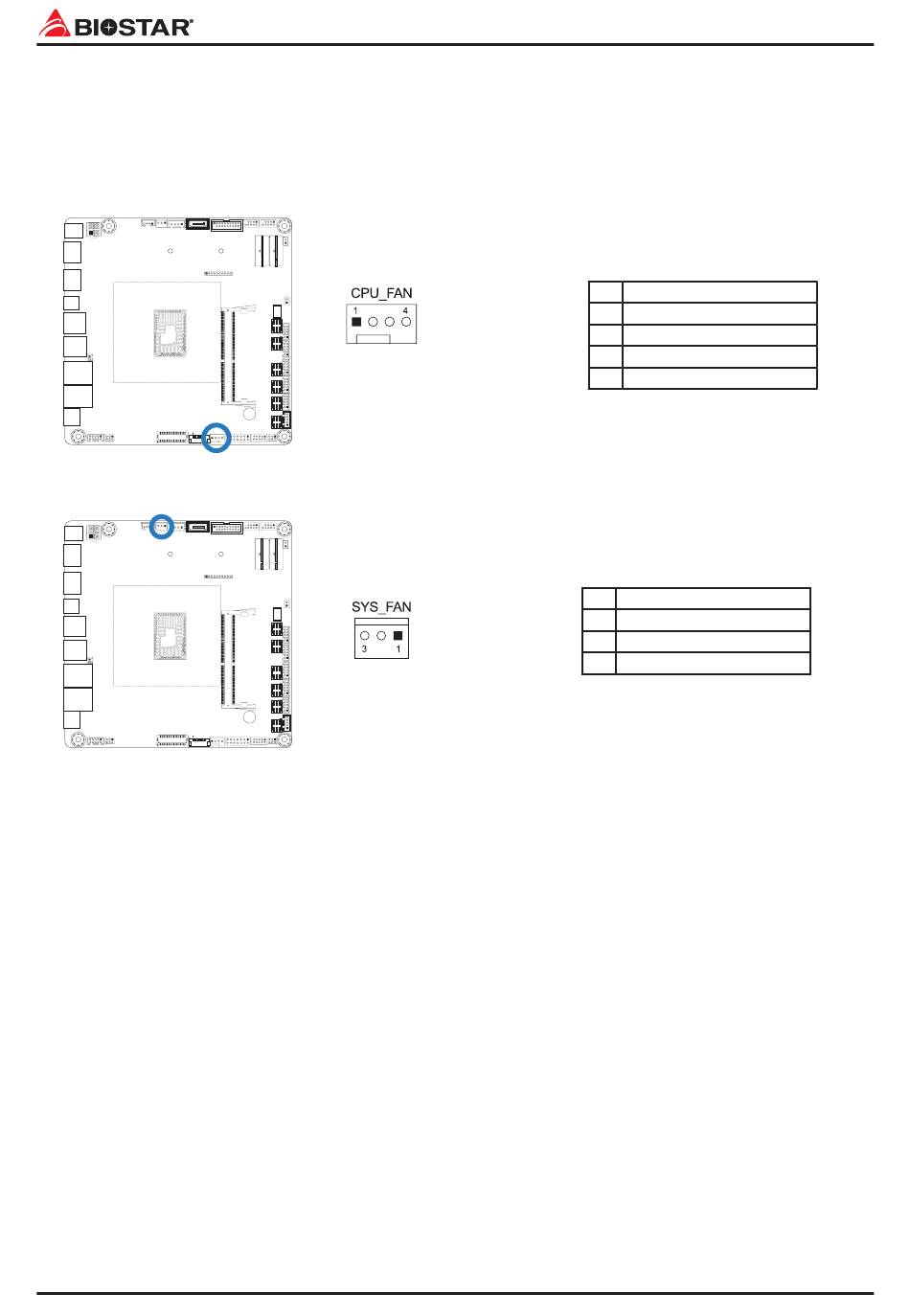

2.2 Fan Headers
These fan headers support cooling-fans built in the computer. The fan cable and connector may be
different according to the fan manufacturer. Connect the fan cable to the connector while matching the
black wire to pin#1.
CPU_FAN: WAFER 1X4 2.54MM
SYS_FAN: WAFER 1X3
10 | Chapter 2: Hardware installation
Pin Assignment
1
GND
2
FANPVOUT
3
FAN_TACH
4
FANPWMOUT
Pin Assignment
1
GND
2
FANPVOUT
3
FAN_TACH
