Logic reversal of the collective fault signal
(SSM)
The required logic of the SSM can be set in menu
5.5.2.0. In this case, it is possible to select be-
tween negative logic (falling edge in case of a
fault = "fall") or positive logic (rising edge in case
of a fault = "raise").
6.2.2 Operation of the switchgear operating elements
• Main switch On/Off (lockable in "Off" position)
• The LCD shows the operating statuses of the
pump and the settings menu. The menu selection
and parameter input are performed using the op-
erating knob. Turn the knob to change values or
to scroll through a menu level; press it in order to
select and confirm:

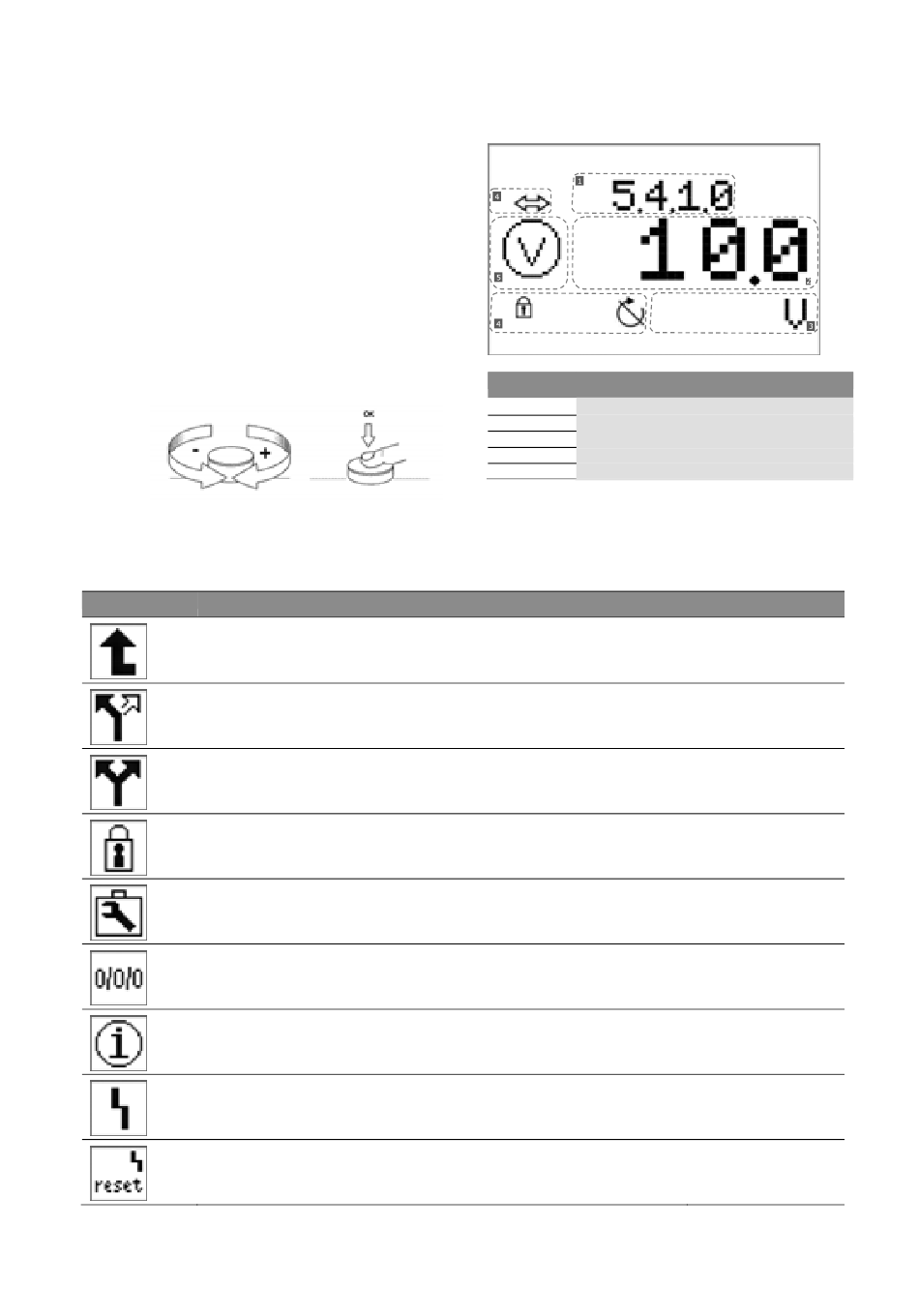

The following graphic symbols are used:
Symbol
12
Function/description
Go back (press briefly: one menu level; press and hold: main screen)
EASY menu
EXPERT menu
1st meaning: Service not logged in
2nd meaning: Display value – no entry possible
Service menu
Parameter
Information
Fault
Reset fault
Information appears on the display as shown in
the sample illustration below:
Item Description
1 Menu number
Value display
2
Units display
3
Standard symbols
4
Graphic symbols
5
English
Availability
All
All
All
All
All
All
All
All
All
