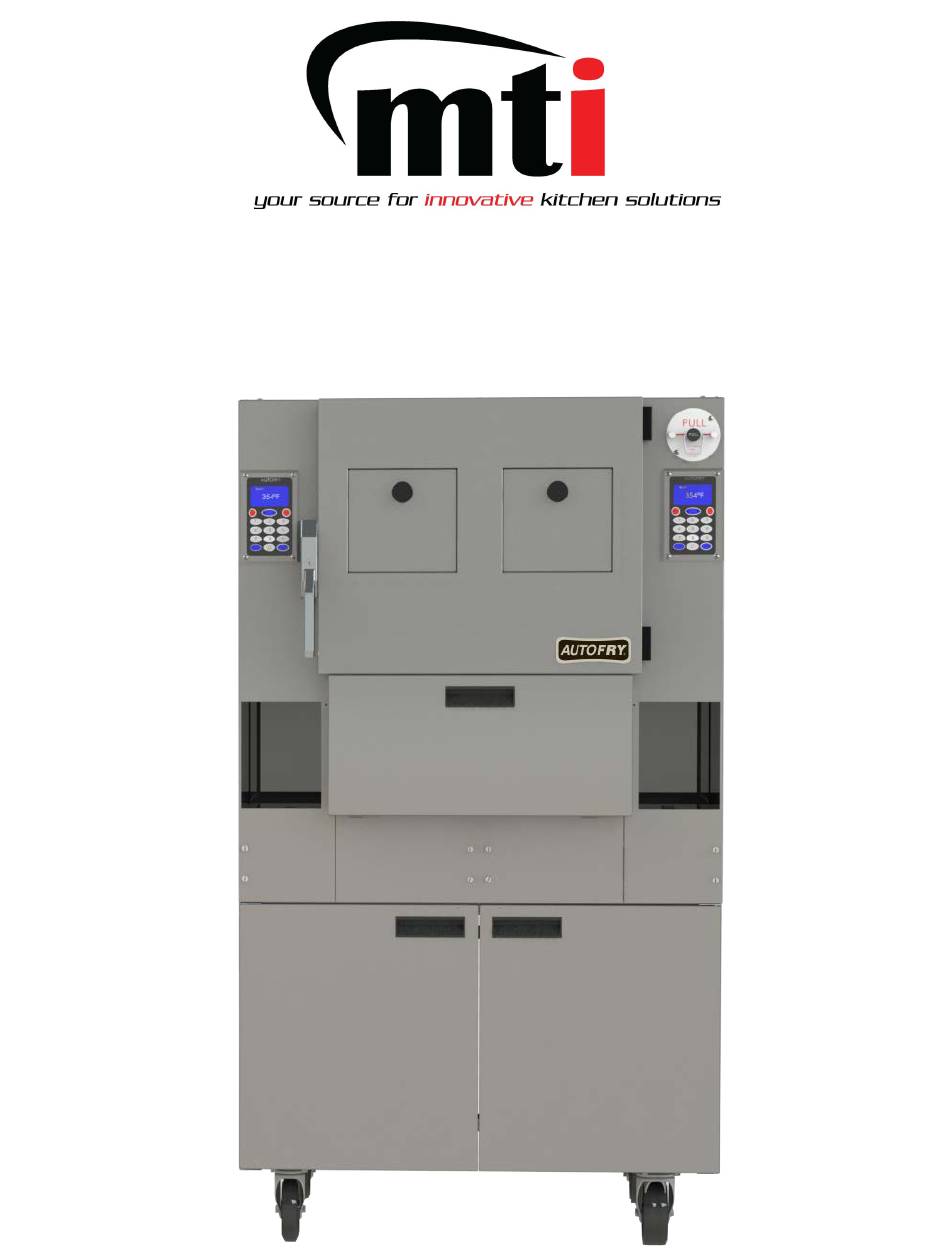

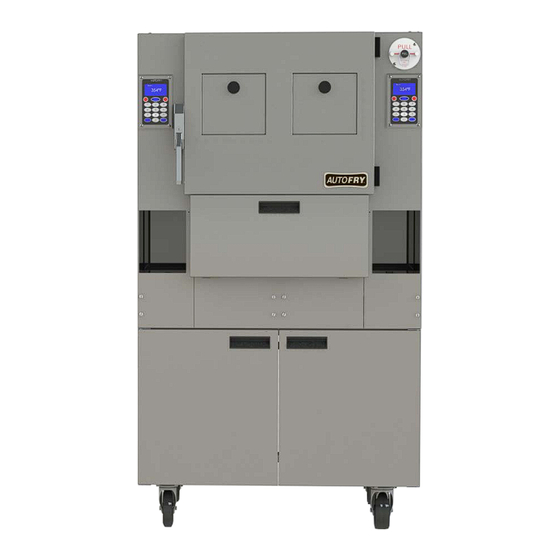

  • Page 1 AUTOFRY Operator’s Manual Model MTI-40E E167654...
  • Page 2 AUTOFRY A Patented Product of Motion Technology, Inc. 10 Forbes Road Northborough, MA. 01532 Tel.: 800-348-2976 508-460-9800 Fax: 508-393-5750 E167654...

  • Page 3: Table Of Contents

    QUESTIONS & ANSWERS ....................21 – 22 ERROR CODES & TROUBLESHOOTING GUIDE ..............23 – 26 MAINTENANCE LOG ..................... 27 – 29 WIRING DIAGRAM ................BACK PANEL OF AUTOFRY OFS (OPTIONAL) ................... SEE OFS MANUAL MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 4: Table Of Figures

    When your AUTOFRY has reached the end of its life DO NOT DISPOSE OF IT IN THE MUNICIPAL WASTE. Most of the materials used in its construction can be recycled. Return to your distributor for preparation and recycling. MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 5: Warranty Information

    MTI to sell its equipment and it is not These warranties are in lieu of all other warranties, transferable.

  • Page 6: General Information

    This appliance is not for continuous mass production of food.  This appliance is not to be cleaned with jet water or steam.  No water should come in contact with the cooking oil. MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 7: Prepare Electrical Service

    Motion Technology, Inc. will not assume responsibility for any injuries or equipment malfunctions resulting from non-conforming electrical installations. Prepare your location: Choose a location that is level. Adequate space must be provided so the AutoFry can be moved forward for service without interference. MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 8: Autofry Installation

    Separate the exit chutes from the food entry doors and wash in warm soapy water followed by a clear water rinse. Figure 1B. Sanitize the parts.  All parts must be sanitized.  Reassemble and reinstall the clean, dry parts. Figure 1B MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 9: Install Charcoal Filter

    Extreme low oil levels could cause smoking. Older or degraded oil has a reduced flash & smoke point. Follow the oil manufacturers recommendations for oil use. NEVER operate the AutoFry with low or no oil! Figure 5 MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 10: Install Teflon Cook Basket

    Never use the basket as a rest for the oil container. Figure 7 Power.  Close and lock the main door.  Plug the AutoFry into the properly rated, grounded outlet. You are now ready to start cooking! MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 11: Starting The Autofry

    354°F. Although the heating element is programmed to stop at 350° - 354°F, the oil temperature can go as high as 365°F due to the circulation of the oil in the oil pot. MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 12: Begin Cooking

    The food chute should only be will show READY and 4 quick beeps will signal the opened when the display shows AutoFry is ready for the next order. READY; or when the timer is still counting down. MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 13: Autofry Shut Off

    The oil will remain hot for a long period. To assure continuous air cleaning, the exhaust fan will run for 2 hours or until the oil temperature falls below 192°F. MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 14: The Standby Button

    CLEAN MODE will be displayed; the basket will raise to the dispense position and hold there. To Exit:  Press and hold the STANDBY button for 5 seconds.  The basket will return to the ready position and the AutoFry will turn off. MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 15: Programming Cook Times

    Press 3 to edit comp. :15 or :30 seconds.  Press any digit to change the value from Yes  Press START to save the changes. to No.  Press START to save the changes. MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 16: Temp Compensation / Shake Feature / Counters

    Access the count feature from the System Programming screen by pressing 2. To reset the count press CLEAR. All Cycles and All Hours cannot be cleared. To exit the count screen press POWER until the display turns off. MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 17: Melt / Boil Out Parameters

    With the AutoFry turned off press and release the START button, then within two seconds press the POWER button. To Cancel: Press CLEAR Boil Out Parameters: 5. Boil Temp. 195°F (adjustable from 190 – 212°F) 6. Boil Time 15:00 (adjustable from 5:00 – 25:00 minutes) MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 18: Performing A Boil Out

    EYES: Flush immediately with lots of running water for at least 15 minutes holding eyelids open. Get medical attention. SKIN: Product is alkaline. Wash with water. Continue to rinse until no longer slippery. INTERNAL: Drink large quantities of water or milk. Do Not Induce Vomiting. MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 19: Recommended Cleaning Schedule

    Figure 8. Figure 8 Sanitize all parts and interior surfaces. Polish the exterior surfaces using AutoFry shine stainless steel polish and a soft cloth. Replace the clean dry components and add liquid shortening as needed. MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 20: Weekly Cleaning

    TO THE CIRCUIT BOARD OR INJURY COULD OCCUR. Remove filters and clean the entire interior to bare metal. Reinstall the clean dry stack cover / fire damper. Replace the filters. Figure 9B Visit www.AutoFryWebStore.com to reorder filters! MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 21: Charcoal Filter

    The fusible links and s-hooks located in the cook chamber and exhaust stack must be replaced semi- annually. WHEN REPLACING FUSIBLE LINKS, YOU MUST USE THE SAME RATED LINKS OR THE FIRE SUPPRESSION SYSTEM MAY NOT WORK AS DESIGNED! COOKING CHAMBER: 280°K Fusible Link FIRE DAMPER: 212°B Fusible Link MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 22: Safety System Test

    Included with this manual is a maintenance log to be signed and dated after the completion of daily, weekly and quarterly maintenance and testing. Your local or state health and safety inspectors may require this log to be posted in a noticeable location. MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 23: Questions & Answers

    Are you overfilling the food entry chute?  Are you entering a second order before the first order has dispensed?  Although the AutoFry is fully enclosed it is a deep fryer and splashing of oil is normal. MTI-40E OM 02/17 Rev B 63-0009B...
  • Page 24 Our Service Technicians will always attempt to correct the problem over the phone. If this is not possible, a service company in your area will be contacted and dispatched to your location. UNAUTHORIZED SERVICE ON THE AUTOFRY MAY VOID THE WARRANTY! MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 25: Error Codes & Troubleshooting Guide

    AutoFry MTI-40E Operator’s Manual MTI-40E OM 02/17 Rev B 63-0009B...
  • Page 26 AutoFry MTI-40E Operator’s Manual MTI-40E OM 02/17 Rev B 63-0009B...
  • Page 27 AutoFry MTI-40E Operator’s Manual MTI-40E OM 02/17 Rev B 63-0009B...
  • Page 28 AutoFry MTI-40E Operator’s Manual MTI-40E OM 02/17 Rev B 63-0009B...

  • Page 29: Maintenance Log

    AutoFry MTI-40E Operator’s Manual MTI-40E OM 02/17 Rev B 63-0009B...
  • Page 30 AutoFry MTI-40E Operator’s Manual MTI-40E OM 02/17 Rev B 63-0009B...
  • Page 31 AutoFry MTI-40E Operator’s Manual Maintenance Record MTI-40E OM 02/17 Rev B 63-0009B...
