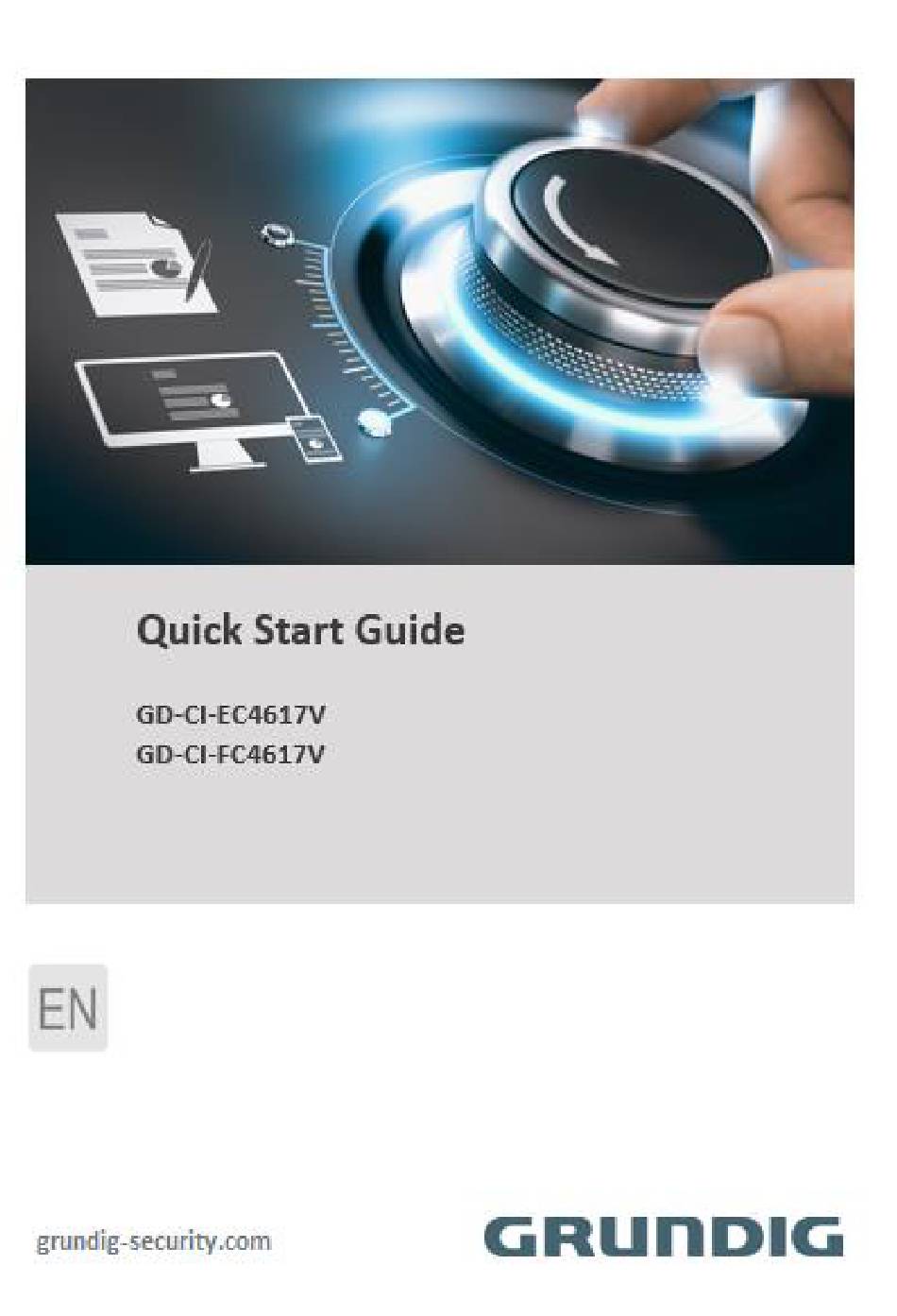

Grundig GD-CI-FC4617V Quick Start Manual
  1. Manuals
  2. Brands
  3. Grundig Manuals
  4. Security Camera
  5. GD-CI-FC4617V
  6. Quick start manual
Grundig GD-CI-FC4617V Quick Start Manual

Grundig GD-CI-FC4617V Quick Start Manual

Hide thumbs Also See for GD-CI-FC4617V:
Table of Contents

Advertisement

Quick Links

Download this manual
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GD-CI-FC4617V and is the answer not in the manual?

Questions and answers

Related Manuals for Grundig GD-CI-FC4617V

Summary of Contents for Grundig GD-CI-FC4617V

  • Page 2 Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Abetechs GmbH (Grundig Security) reserves the right to change the contents of this document without prior notice. Design and specifications are subject to change without prior notice.
  • Page 3 OPEN SOURCE SOFTWARE LICENSE INFORMATION The software components provided with Grundig products may contain copyrighted software that is licensed under various open source software licenses. For detailed information about the...
  • Page 4 The appearance of the products, functions and firmware or software upgrade may differ from this manual. GRUNDIG reserves the right to perform needed changes without prior notice. Safety Instructions Make sure that you only use the power adapter that is specified in the specifications sheet of the product.
  • Page 5 Improper use or replacement of the battery may result in the hazard of explosion. Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, immediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
  • Page 6 Installation Instructions It is necessary to fix the device firmly if the product is installed on a wall or ceiling. Do not install the product on surfaces or in places that are vibrating. Do not install the product near radiation sources. Do not install the product near heat sources, like radiators or other equipment that produces some heat.
  • Page 7 Special Installation Instructions for IP Cameras Make sure that the latest firmware is installed on the IP Device. You may get the latest firmware from techsupport@grundig-security.com.

  • Page 8: Table Of Contents

    3 Setting the IP-Camera over the LAN ..........13 3.1 Wiring ................13 3.2 Activating the Camera ............ 14 Activation via Web Browser ........14 Activation via Grundig IP-Finder Software ....15 3.3 Modifying the IP Address..........17 4 Accessing via Web Browser ............19...

  • Page 9: Appearance Description

    1 Appearance Description Camera: Fix Dome Overview Description Description Power cable Network cable...

  • Page 10: Installation

    2 Installation 2.1 Mounting Both wall mounting and ceiling mounting are suitable for the fix dome camera. Steps: Paste the drill template (supplied) to the desired mounting position on the wall/ceiling. Drill the screw holes in the ceiling according to the supplied drill template.
  • Page 11 Route the cables through the cable hole (optional), or the side opening. Fix the camera on the wall/ceiling with supplied screws. Figure 2-2 Fix the Camera on the Ceiling Note: In the supplied screw package, both self-tapping screws, and ⚫ expansion bolts are contained.
  • Page 12 1) Loosen the No.1 adjusting screw to adjust the rotation position [0° to 355°]. 2) Tighten the No.1 adjusting screw. 3) Loosen the No.2 adjusting screw to adjust the tilting position [0° to 75°]. 4) Tighten the No. 2 adjusting screw. 5) Loosen the No.3 adjusting screw to adjust the pan position [0°...
  • Page 13 8. Reinstall the dome cover. Figure 2-4 reinstall cover...

  • Page 14: Setting The Ip-Camera Over The Lan

    3 Setting the IP-Camera over the LAN Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, contact your dealer or the nearest service center for help.

  • Page 15: Activating The Camera

    You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, Activation via Grundig IP-Finder, and Activation via Client Software are all supported. We will take activation via Grundig IP-Finder software and Activation via Web Browser as examples to introduce the camera activation.

  • Page 16: Activation Via Grundig Ip-Finder Software

    4. Confirm the password. 5. Click Activate to save the password and enter the live view interface. Activation via Grundig IP-Finder Software Grundig Finder software is used for detecting the online device and activating the camera.
  • Page 17 Get the Grundig Finder software from the official website and install the software according to the prompts. Follow the steps to activate the camera, please refer to the User manual for other two activation methods. Steps: 1. Run the Finder software to search the online devices.

  • Page 18: Modifying The Ip Address

    To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your Use the Grundig IP-Finder software or client software to search and change the IP address of the device. We take modifying the IP Address via Grundig IP-Finder software as an example to introduce the IP address modification.
  • Page 19 Modify the IP Address 4. Input the admin password and click Update to activate your IP address modification. The batch IP address modification is supported by the Grundig IP- Finder. Please refer to the User Manual of Grundig IP-Finder for details.

  • Page 20: Accessing Via Web Browser

    4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8 and above version, Apple Safari 16 and above version, Mozilla Firefox 52.0 and above version and Google Chrome 57.0 and above version.
  • Page 21 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug- Note: You may have to close the web browser to finish the installation of the plug-in. Download Plug-in 6.
