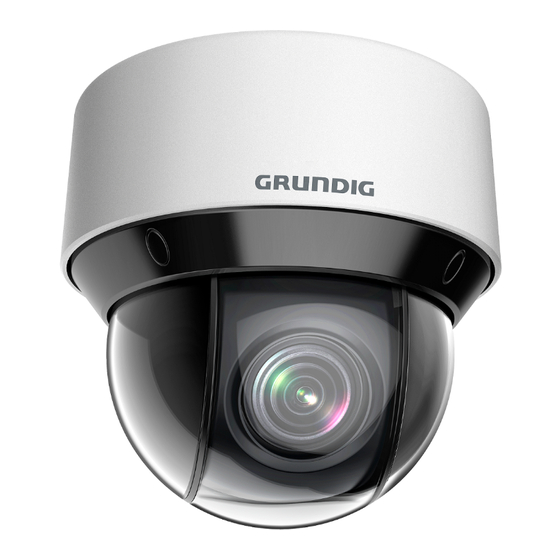

Summary of Contents for Grundig GD-CI-CP2647P

  • Page 2 Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Abetechs GmbH (Grundig Security) reserves the right to change the contents of this document without prior notice. Design and specifications are subject to change without prior notice.
  • Page 3 OPEN SOURCE SOFTWARE LICENSE INFORMATION The software components provided with Grundig products may contain copyrighted software that is licensed under various open source software licenses. For detailed information about the...
  • Page 4 The appearance of the products, functions and firmware or software upgrade may differ from this manual. GRUNDIG reserves the right to perform needed changes without prior notice. Safety Instructions Make sure that you only use the power adapter that is specified in the specifications sheet of the product.
  • Page 5 Improper use or replacement of the battery may result in the hazard of explosion. Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, immediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
  • Page 6 Installation Instructions It is necessary to fix the device firmly if the product is installed on a wall or ceiling. Do not install the product on surfaces or in places that are vibrating. Do not install the product near radiation sources. Do not install the product near heat sources, like radiators or other equipment that produces some heat.
  • Page 7 Special Installation Instructions for IP Cameras Make sure that the latest firmware is installed on the IP Device. You may get the latest firmware from techsupport@grundig-security.com.

  • Page 8: Table Of Contents

    Table of Contents 1 Appearance Description ..............9 Cable Descriptions ............9 1.2 Alarm Output ..............11 2 Installation ..................12 2.1 Installing the Memory Card ........... 12 2.2 Installing PTZ Camera ............ 15 2.2.1 Ceiling Mounting ..........15 2.2.2 In-ceiling Mounting ..........21 2 Setting the IP-Camera over the LAN ..........
  • Page 9 3 Accessing via Web Browser ............32 3.1 Initializing the Memory Card ......... 34...

  • Page 10: Appearance Description

    1 Appearance Description Cable Descriptions The cable interfaces of network PTZ camera are shown in Figure 1-1. The cables are distinguished by different colors. Refer to the labels attached on the cables for identification. Note: ⚫ Make sure the camera is power-off before you connect the cables.
  • Page 11 Description Power supply interface (12 VDC) Audio input and output interface Alarm input and output interface RJ45 self-adaptive network interface (PoE) Mounting base Black liner Lens Bubble...

  • Page 12: Alarm Output

    1.2 Alarm Output Alarm output is shown in Figure 1-2. Figure 1-2 Alarm Output...

  • Page 13: Installation

    2 Installation Before you start: Check the package contents and make sure that the device in the package is in good condition and all the assembly parts are included. Notes: ⚫ Do not drag the PTZ camera with its waterproof cables; otherwise the waterproof performance is affected.
  • Page 14 Remove the four silicone plugs on the decorative rim as shown in Figure 2-1, and you can see four flange screws in the decorative rim. Figure 2-1 Remove the Silicone Plugs Loosen four flange screws with a screwdriver. Remove the bubble and the decorative rim as shown in Figure 2-2.
  • Page 15 Figure 2-2 Remove the Bubble and the Decorative Rim Open the memory card cover and insert the memory card into the card slot as shown in Figure 2-3.

  • Page 16: Installing Ptz Camera

    Close the memory card cover. Fix the four flange screws and push four silicone plugs back to assemble the PTZ camera. 2.2 Installing PTZ Camera The PTZ camera supports ceiling mounting and in-ceiling mounting. Note: Wall mounting, pendant mounting and installation with junction box are supported for the PTZ camera.
  • Page 17 • The thickness of the ceiling shall range from 5mm to 40mm. • Make sure the ceiling is strong enough to withstand more than four times the weight of the PTZ camera and its accessories. Wiring The cables of PTZ camera can be routed either from the top or the side of the back box, as shown in Figure 2-4.
  • Page 18 Ceiling Mounting without Junction Box Steps: 5. Rotate the base plate counterclockwise to separate it from the PTZ camera. 6. Attach the drill template (supplied) to the place where you want to fix the PTZ camera, and make sure the front arrow appoints to the monitoring area.
  • Page 19 out the cable slot cover if you want to route the cables on the surface of the ceiling, as shown in Figure 2-6. Figure 2-6 For PTZ Camera 8. Attach the base plate to the ceiling and secure it with the supplied three self-tapping screws by aligning with three screw holes in the ceiling, and the front arrows on the drill template and base plate should be aligned together as well, as shown in Figure 2-7.
  • Page 20 9. Route the cables through the cable hole. 10. Align the PTZ camera with the base plate. Rotate the PTZ camera clockwise into the base plate, and the PTZ camera is secured with the base plate by three locks on the plate.
  • Page 21 Figure 2-8 Secure the PTZ Camera Note: After the PTZ camera is installed, tighten the fixing screw with a screwdriver as shown in Figure 2-9. Figure 2-9 Tighten the Fixing Screw...

  • Page 22: In-Ceiling Mounting

    2.2.2 In-ceiling Mounting Notes: ⚫ Reserve at least 250 mm of height for in-ceiling mounting. ⚫ The thickness of the ceiling shall range from 5mm to 40mm. ⚫ Make sure the ceiling is strong enough to withstand more than four times the weight of the PTZ camera and its accessories Steps: 1.
  • Page 23 2. Attach the drill template (supplied) to the place where you want to fix the PTZ camera, and drill a hole in the ceiling according to the template. Figure 2-11 Drill Template 3. Align the cable holes of the base plate to the cable holes of the in- ceiling bracket and then fix the base plate onto the bracket with the four screws in the package (supplied), as shown Figure 2-12.
  • Page 24 Figure 2-12 Fix the Base Plate to In-ceiling Bracket 4. Connect the cables and route the cables through the cable hole. 5. Align the PTZ camera with the base plate. Rotate the PTZ camera clockwise into the base plate, and the PTZ camera is secured with the base plate by three locks on the plate.
  • Page 25 Figure 2-13 Fix the Camera 7. Place the camera and the bracket into the hole drilled in step 2, and rotate the screws clockwise to fix the camera. 8. Fix the decorative rim with the bubble and the decorative rim will be attached to the in-ceiling bracket automatically, as shown in Figure 2-14.
  • Page 26 Figure 2-14 Assemble the Decorative Rim...

  • Page 27: Setting The Ip-Camera Over The Lan

    2 Setting the IP-Camera over the LAN Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, contact your dealer or the nearest service center for help.

  • Page 28: Activating The Camera

    You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, Activation via Grundig IP-Finder, and Activation via Client Software are all supported. We will take activation via Grundig IP-Finder software and Activation via Web Browser as examples to introduce the camera activation.

  • Page 29: Activation Via Ip-Finder Software

    4. Confirm the password. 5. Click OK to save the password and enter the live view interface. 2.2.2 Activation via IP-Finder Software Grundig Finder software is used for detecting the online device and activating the camera.
  • Page 30 Get the Grundig Finder software from the official website www.grundig-security.com and install the software according to the prompts. Follow the steps to activate the camera, please refer to the User manual for other two activation methods. Steps: 1. Run the Finder software to search the online devices.

  • Page 31: Modifying The Ip Address

    To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your Use the Grundig IP-Finder software or client software to search and change the IP address of the device. We take modifying the IP Address via Grundig IP-Finder software as an example to introduce the IP address modification.
  • Page 32 Modify the IP Address 4. Input the admin password and click Update to activate your IP address modification. The batch IP address modification is supported by the Grundig IP- Finder. Please refer to the User Manual of Grundig IP-Finder for details.
  • Page 33 3 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8 and above version, Apple Safari 16 and above version, Mozilla Firefox 52.0 and above version and Google Chrome 57.0 and above version.
  • Page 34 4. Click Login. Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug- Note: You may have to close the web browser to finish the installation of the plug-in.
  • Page 35 3.1 Initializing the Memory Card Steps: Check the memory card status by tapping on the Storage Status in the Device Settings interface. If the memory card status displays as uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection.
