Summary of Contents for Grundig GD-CI-CP4637V

  • Page 2 Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Abetechs GmbH (Grundig Security) reserves the right to change the contents of this document without prior notice. Design and specifications are subject to change without prior notice.
  • Page 3 OPEN SOURCE SOFTWARE LICENSE INFORMATION The software components provided with Grundig products may contain copyrighted software that is licensed under various open source software licenses. For detailed information about the...
  • Page 4 You may obtain the complete corresponding open source part of a specific product from us for a period of three years after our last shipment of this product by sending an email to: info@grundig- security.com Safety and Installation Instruction...
  • Page 5 Improper use or replacement of the battery may result in the hazard of explosion. Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, immediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
  • Page 6 Do not install the product near heat sources, like radiators or other equipment that produces some heat. If the product is not classified by any IP class, do not install the product in very cold or hot temperatures (please refer to the working temperature specified in the specification sheet of the product), dusty, dirty or damp environment.
  • Page 7 Special Installation Instructions for IP Cameras Make sure that the latest firmware is installed on the IP Device. You may get the latest firmware from www.grundig-security.com website or from techsupport@grundig-security.com.

  • Page 8: Table Of Contents

    3.1 Wiring ................25 3.2 Activating the Camera ........... 26 3.2.1 Activation via Web Browser ........ 26 Activation via Grundig IP-Finder Tool ....27 3.3 Modifying the IP Address ..........29 4 Accessing via Web Browser ............31 4.1 Initializing the Memory Card ......... 33...

  • Page 9: Appearance Description

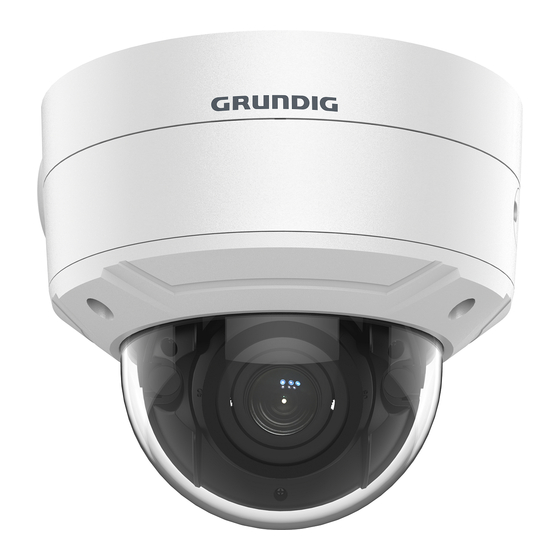

    1 Appearance Description The overview of the network dome camera is shown below. Figure 1-1 Overview of Dome Camera...
  • Page 10 Notes: ● Reset button operation: Press Reset button for about 10 s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, port No., etc. ● Standard power supply is 12 VDC or PoE (802.3af).

  • Page 11: Installation

    2 Installation Memory Card Installation The camera supports a memory card as local storage. Follow these steps to insert and remove the memory card. Steps: 1. Unscrew the memory card slot cover. Install Memory Card...

  • Page 12: Mounting Preparation

    2. Insert the memory card into the memory card slot, and push to get it mounted. 3. (Optional) To unmount the memory card, push to eject it. 4. Screw the cover back. Mounting Preparation Steps: 1. Lift the camera body to separate the junction box and the adapter plate.

  • Page 13: Camera Mounting

    Disassemble the Camera 2.3 Camera Mounting 2.3.1 Ceiling Mounting Before you start: Plan the cable routing before installation.
  • Page 14 This camera series supports cable-routing through the ceiling and through side outlet. ● Through the ceiling: you should cut a hole in ceiling and route the cables in advance. ● Through side outlet: you choose to route cables with or without a conduit.
  • Page 15 Conduit Conduit Joint (Supplied) Connect the Conduit Joint to Conduit Fit the adapter plate into the conduit joint. Install the Conduit 3. Secure the adapter plate to the ceiling with four supplied screws. Note: Use expansion screws for cement ceiling, and self-tapping screws for wooden ceiling.
  • Page 16 Thread cables through the sealing plugs. Note: For RJ45 network interface cabling please use the supplied cable routing tool. Sealing Plug Cable Routing Tool Route RJ45 Network Interface through Sealing Plug...
  • Page 17 Route Cables through Junction Box 5. Align the “FRONT” marks on junction box and adapter plate. Secure the junction box to adapter plate with three screws.
  • Page 18 Install Junction Box 6. Hang the camera body on the safety rope. 7. Connect the cables to correspondent plugs on camera bottom.
  • Page 19 Connect Cables 8. Fix the camera body to the junction box with three screws.
  • Page 20 Fix the Camera Body 9. Adjust surveillance angle. Hold the lens to adjust the panning, tilting, and rotating position.
  • Page 21 Adjust Surveillance Angle 10. Peel off the protective films and screw the bubble back to the camera body. Figure 2-12 Reinstall the bubble...

  • Page 22: Wall Mounting

    2.3.2 Wall Mounting Before you start: Wall mounting bracket is not included in package. If you choose this mounting type, you have to prepare a bracket first. The wall mounting bracket shown below is only for demonstration. Note: When choosing a wall mounting bracket, you must pay attention to the size of the cap which should match the adapter plate of the camera.

  • Page 23: Pendant Mounting

    Fixing Screw Figure 2-14 Install Adapter Plate to Bracket 5. Repeat step 4 to step 10 of Section 2.3.1 Ceiling Mounting to complete camera installation. 2.3.3 Pendant Mounting Before you start: Pendant mounting bracket is not included in package. If you choose this mounting type, you have to prepare a bracket first.
  • Page 24 Fixing Screw Figure 2-15 Install the Pendant Mounting Bracket 3. Align the screw holes of the adapter plate with the correspondent screw holes of the cap. 4. Route the cables through the cable hole on adapter plate and secure the adapter plate to the cap. 5.

  • Page 25: Setting The Network Camera Over The Lan

    3 Setting the IP-Camera over the LAN Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, contact your dealer or the nearest service center for help.

  • Page 26: Activating The Camera

    Activation via Web Browser and Activation via Grundig IP-Finder Tool are supported. We will take activation via Grundig IP-Finder Tool and Activation via Web Browser as examples to introduce the camera activation.

  • Page 27: Activation Via Grundig Ip-Finder Tool

    5. Click OK to save the password and enter the live view interface. Activation via Grundig IP-Finder Tool The Grundig IP-Finder Tool is used for detecting the online device and activating the camera. Get the Grundig Finder Tool from the supplied disk or the official website and install the software according to the prompts.
  • Page 28 Grundig IP-Finder Interface Note: The software supports activating the camera in batch. Refer to the user manual of Grundig IP-Finder for details. 3. Create and input the new password in the password field, and confirm the password. STRONG PASSWORD RECOMMENDED– We highly...

  • Page 29: Modifying The Ip Address

    To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your Use the Grundig IP-Finder Tool to search and change the IP address of the device. We take modifying the IP Address via Grundig IP-Finder as an example to introduce the IP address modification.
  • Page 30 Modify the IP Address 4. Input the admin password and click Update to activate your IP address modification. The batch IP address modification is supported by the Grundig IP- Finder. Please refer to the User Manual of Grundig IP-Finder for details.

  • Page 31: Accessing Via Web Browser

    4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8 and above version, Apple Safari 16 and above version, Mozilla Firefox 52.0 and above version and Google Chrome 57.0 and above version.
  • Page 32 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug- Note: You may have to close the web browser to finish the installation of the plug-in. Download Plug-in 6.

  • Page 33: Initializing The Memory Card

    Initializing the Memory Card Steps: Check the memory card status by tapping on the Storage Status in the Device Settings interface. If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection.
