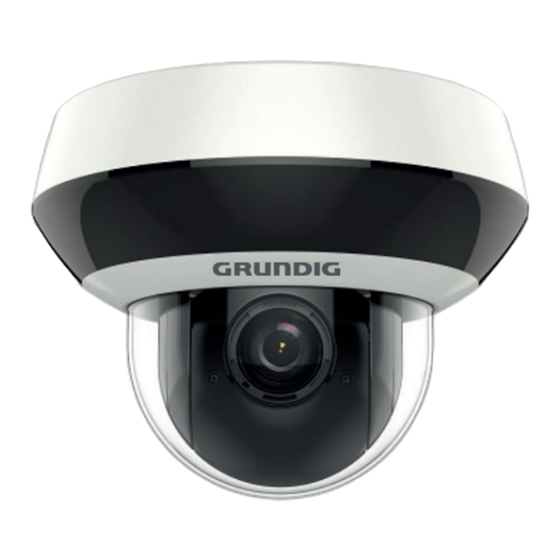

Network Dome Camera Quick Guide GD-CI-AC4637P WWW.GRUNDIG-SECURITY.COM...
Page 2
Please find the latest version at WWW.GRUNDIG-SECURITY.COM Limitation of Liability / Legal Disclaimer Abetechs GmbH (Grundig Security) undertakes all reasonable efforts to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s...
Page 3
OPEN SOURCE SOFTWARE LICENSE INFORMATION The software components provided with Grundig products may contain copyrighted software that is licensed under various open source software licenses. For detailed information about the...
Page 4
You may obtain the complete corresponding open source part of a specific product from us for a period of three years after our last shipment of this product by sending an email to: info@grundig- security.com Safety Instruction Make sure that you only use the power adapter that is specified in the specifications sheet of the product.
Page 5
Improper use or replacement of the battery may result in the hazard of explosion. Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, immediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
Page 6
If the product supports IR, you need to take some precautions to prevent IR reflection. Do not install the product close to reflective surfaces of objects as this may cause reflection. If the product has a dome cover, please remove the protection film only after installation to prevent dust or grease on the camera which can cause reflection.
3.1 Wiring ................17 3.2 Activating the Camera ........... 18 3.2.1 Activation via Web Browser ........18 Activation via Grundig IP-Finder Tool ....... 19 3.3 Modifying the IP Address ..........21 4 Accessing via Web Browser ............24 4.2 Initializing the Memory Card ......... 26...
1 Overview Cable Descriptions The cable interfaces of network PTZ camera are shown in Figure 1-1. The cables are distinguished by different colors. Refer to the labels attached on the cables for identification. Notes: ⚫ Make sure the camera is power-off before you connect the cables.
⚫ Power Cord: Supports 12 VDC power supply. ⚫ Video Cable: Connect BNC Cable to test the video output. ⚫ Alarm Cable: Connect terminal ALARM-IN with GND interface, and connect terminal ALARM-OUT with ALARM-COM interface. ⚫ Audio Cable: Connect terminal AUDIO-IN with GND interface. ⚫...
2 Installation Installing the Memory Card You can install the memory card for local storage. Steps: 1. Open the cover with the straight screwdriver from a crack on the cover, as shown in Figure 2-1. Figure 2-1 Open the Cover 2.
Page 11
Bubble Screw Figure 2-2 Remove the Bubble 3. Open the memory card slot in the camera, and insert the memory card. 4. Align the bubble with the camera base, and install the bubble back. Fix the bubble with four screws, as shown in Figure 2-3. Figure 2-3 Install the Bubble...
5. Align the cover with the camera, and install the cover back, as shown in Figure 2-4. Cover Figure 2-4 Install the Cover Installing Series PTZ Camera 2.2.1 Ceiling Mounting Notes: ⚫ The thickness of the ceiling shall range from 5 mm to 40 mm. ⚫...
Page 13
OPEN Installation Plate Figure 2-5 Remove the Installation Plate 2. Drill four screw holes in the ceiling according to the installation plate. 3. Align the installation plate with the screw holes, and fix the installation plate on the ceiling. Figure 2-6 Fix the Installation Plate...
4. Route the cables from the cable hole in the installation plate. 5. Align the camera with the installation plate, and rotate the camera clockwise to fix it, as shown in Figure 2-7. Figure 2-7 Fix the Camera 2.2.2 Wall Mounting Notes: ⚫...
Page 15
1. Remove the installation plate, and install it on the wall mounting bracket (not supplied) with two screws. Note: Refer to step 1 in section 2.2.1 Ceiling Mounting to remove the installation plate. Figure 2-8 Install the Installation Plate 2. Loosen the fixing screw on the bracket and remove the bracket base.
Page 16
Figure 2-10 Install the Bracket Base 4. Route the cables. Align the camera with the installation plate on the wall mounting bracket, and rotate the camera clockwise to fix it on the bracket. LOCK OPEN Figure 2-11 Install the Camera 5.
Page 17
Figure 2-12 Fix the Bracket 6. Remove the protective film after installation.
3 Setting the Network Camera over the Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, contact your dealer or the nearest service center for help.
Activation via Web Browser and Activation via Grundig IP-Finder Tool are supported. We will take activation via Grundig IP-Finder Tool and Activation via Web Browser as examples to introduce the camera activation.
5. Click OK to save the password and enter the live view interface. Activation via Grundig IP-Finder Tool The Grundig IP-Finder Tool is used for detecting the online device and activating the camera. Get the Grundig Finder Tool from the supplied disk or the official...
Page 21
User manual for other two activation methods. Steps: 3. Run the Grundig IP-Finder Tool to search the online devices. 4. Check the device status from the device list and select the inactive device.
To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your Use the Grundig IP-Finder Tool to search and change the IP address of the device. We take modifying the IP Address via Grundig IP-Finder as an example to introduce the IP address modification.
Page 23
3. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP. Modify the IP Address 4. Input the admin password and click Modify to activate your IP address modification.
Page 24
The batch IP address modification is supported by the Grundig IP- Finder. Please refer to the User Manual of Grundig IP-Finder for details.
4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version Steps:...
Page 26
4. Click Login. Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug- Note: You may have to close the web browser to finish the installation of the plug-in.
