  • Page 2 Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Abetechs GmbH (Grundig Security) reserves the right to change the contents of this document without prior notice. Design and specifications are subject to change without prior notice.
  • Page 3 OPEN SOURCE SOFTWARE LICENSE INFORMATION The software components provided with Grundig products may contain copyrighted software that is licensed under various open source software licenses. For detailed information about the...
  • Page 4 The appearance of the products, functions and firmware or software upgrade may differ from this manual. GRUNDIG reserves the right to perform needed changes without prior notice. Safety Instructions Make sure that you only use the power adapter that is specified in the specifications sheet of the product.
  • Page 5 Improper use or replacement of the battery may result in the hazard of explosion. Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, immediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
  • Page 6 Installation Instructions It is necessary to fix the device firmly if the product is installed on a wall or ceiling. Do not install the product on surfaces or in places that are vibrating. Do not install the product near radiation sources. Do not install the product near heat sources, like radiators or other equipment that produces some heat.
  • Page 7 Special Installation Instructions for IP Cameras Make sure that the latest firmware is installed on the IP Device. You may get the latest firmware from techsupport@grundig-security.com.

  • Page 8: Table Of Contents

    Table of Contents 1 Appearance Description ..............8 Camera overview ............8 2 Installation ..................10 Memory Card Installation ..........10 2.2 Installation ..............11 3 Setting the IP-Camera over the LAN ..........16 3.1 Wiring ................16 3.2 Activating the Camera ........... 17 3.2.1 Activation via Web Browser .......

  • Page 9: Appearance Description

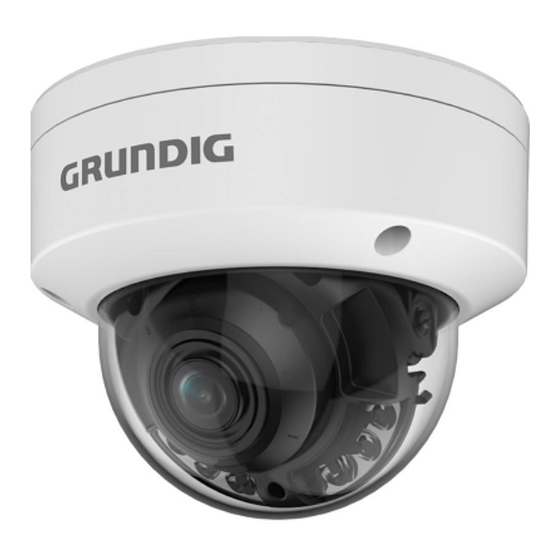

    1 Appearance Description Camera overview Camera Overview Description Camera Description Bubble Black liner Lens IR- & Whitelight LED...
  • Page 10 Safety rope Lens rotation bracket Memory card slot Reset button Alarm- & Power Interface Network Interface Note: Power on the camera when pressing the RESET button, and press button for another 10 seconds to restore the default settings, including the user name, password, IP address, port No., etc.

  • Page 11: Installation

    2 Installation Memory Card Installation The camera supports a memory card as local storage. Follow these steps to insert and remove the memory card. Steps: 1. Loosen the screws on the dome. Remove the dome cover to expose the memory card slot. Figure 2-1 Remove Dome Cover Note: ●...

  • Page 12: Installation

    2. Locate the memory card slot to insert the memory card. Figure 2-2 Insert Memory Card 3. (Optional) Press on the memory card to remove it. 2.2 Installation Steps: 1. Attach the dill template to the ceiling. 2. Drill the screw holes and cable hole (optional) in the ceiling according to the drill template.
  • Page 13 Drill Template Hole A: for cables routed through the ceiling screw hole 1: for Mounting Base Figure 2-3 Drill Template 3. Loosen the set screws with a hex wrench (supplied) to remove the bubble. Figure 2-4 Remove the Bubble...
  • Page 14 4. Fix the mounting base on the ceiling with supplied screws. Figure 2-5 Fix the Mounting Base 5. Route the cables through the cable hole. Note: If required, you can route cables through the side opening on the side of the mounting base. Side Opening Figure 2-6 Side Opening 6.
  • Page 15 7. Power on the camera to check whether the image on the monitor is gotten from the optimum angle. If not, adjust the camera to get an optimum angle. Notes: ● The camera supports 3-axis adjustment. Loosen the tilt adjusting screw to adjust the tilt angle [0°...
  • Page 16 Figure 2-8 Zoom and Focus Adjusting with Browser 8. Reinstall the bubble, and tighten the screws. Figure 2-9 Bubble Reinstallation...

  • Page 17: Setting The Ip-Camera Over The Lan

    3 Setting the IP-Camera over the LAN Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, contact your dealer or the nearest service center for help.

  • Page 18: Activating The Camera

    You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, Activation via Grundig IP-Finder, and Activation via Client Software are all supported. We will take activation via Grundig IP-Finder software and Activation via Web Browser as examples to introduce the camera activation.

  • Page 19: Activation Via Ip-Finder Software

    4. Confirm the password. 5. Click OK to save the password and enter the live view interface. 3.2.2 Activation via IP-Finder Software Grundig Finder software is used for detecting the online device and activating the camera.
  • Page 20 Get the Grundig Finder software from the official website www.grundig-security.com and install the software according to the prompts. Follow the steps to activate the camera, please refer to the User manual for other two activation methods. Steps: 1. Run the Finder software to search the online devices.

  • Page 21: Modifying The Ip Address

    To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your Use the Grundig IP-Finder software or client software to search and change the IP address of the device. We take modifying the IP Address via Grundig IP-Finder software as an example to introduce the IP address modification.
  • Page 22 Modify the IP Address 4. Input the admin password and click Update to activate your IP address modification. The batch IP address modification is supported by the Grundig IP- Finder. Please refer to the User Manual of Grundig IP-Finder for details.

  • Page 23: Accessing Via Web Browser

    4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8 and above version, Apple Safari 16 and above version, Mozilla Firefox 52.0 and above version and Google Chrome 57.0 and above version.
  • Page 24 4. Click Login. Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug- Note: You may have to close the web browser to finish the installation of the plug-in.

  • Page 25: Initializing The Memory Card

    4.1 Initializing the Memory Card Steps: Check the memory card status by tapping on the Storage Status in the Device Settings interface. If the memory card status displays as uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection.
